likes
$175.00

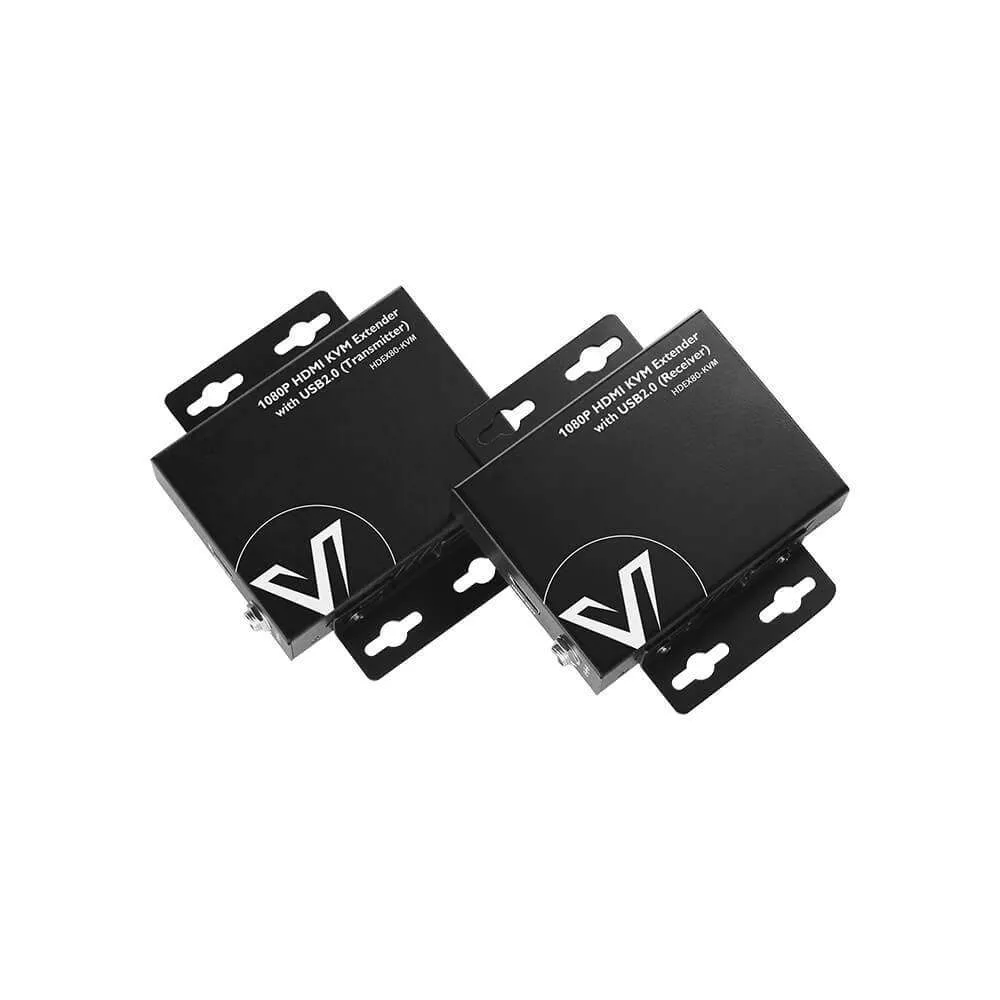

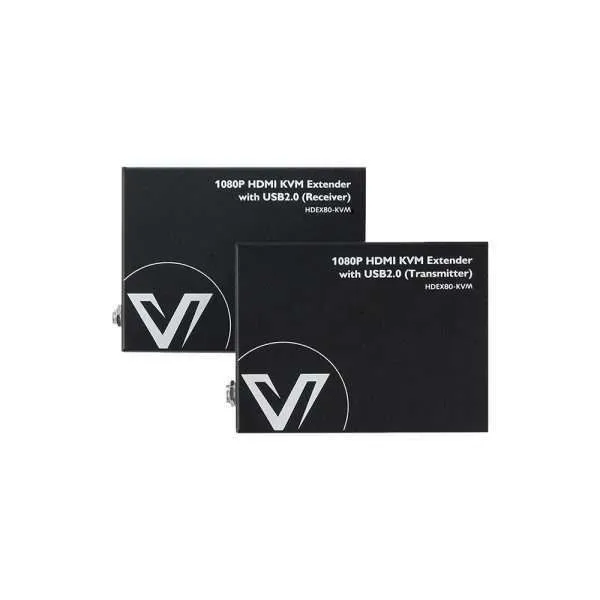

1080p HDMI Extender with USB - Up to 260FT
In stock
Usually ships the same business day if ordered before 2PM EST.
SKU
HDMI-EXT-AV
Images
Need Installation?
No Problem
Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.
Get a Custom Quote for Equipment or Installation
Maximum Length
80m/260FT Away
Cable Type
HDMI over Cat5e/Cat6
Resolution
Up to 1080p @ 60hz
Special Features
Mouse Control

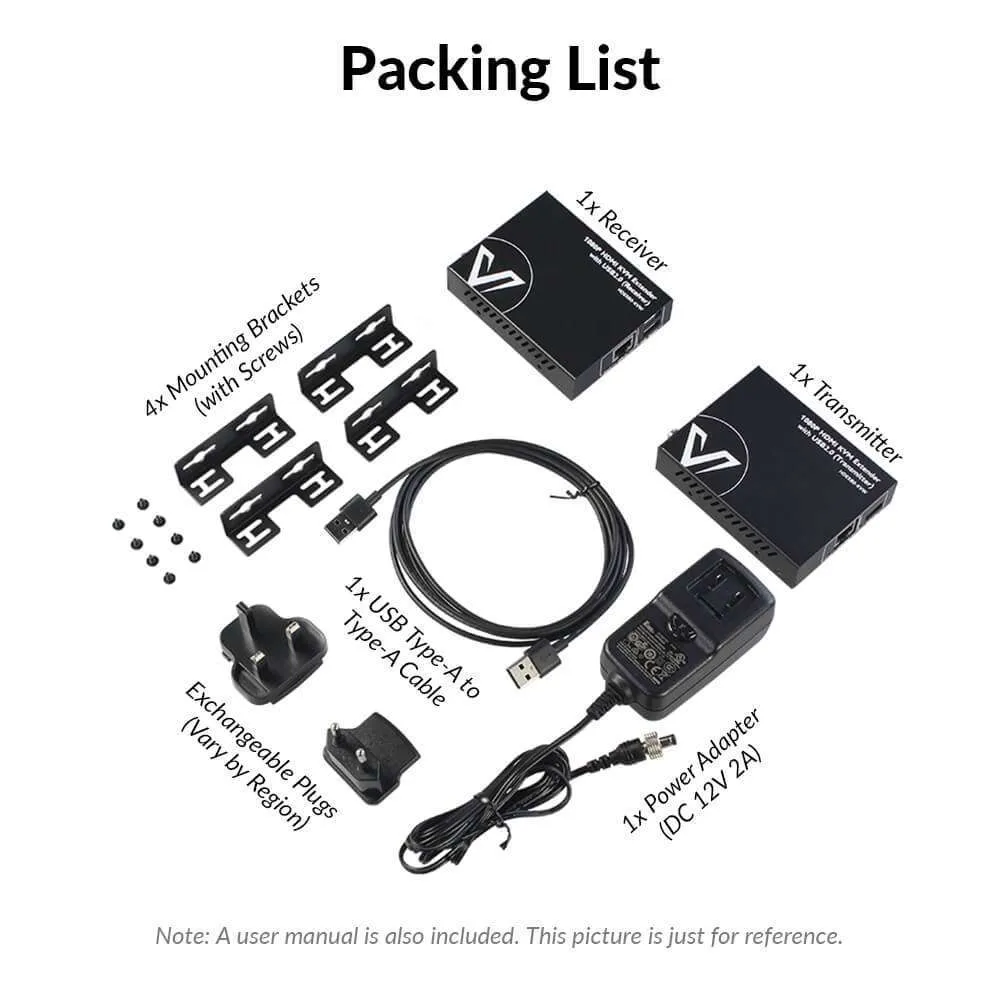

Includes Transmitter & Receiver

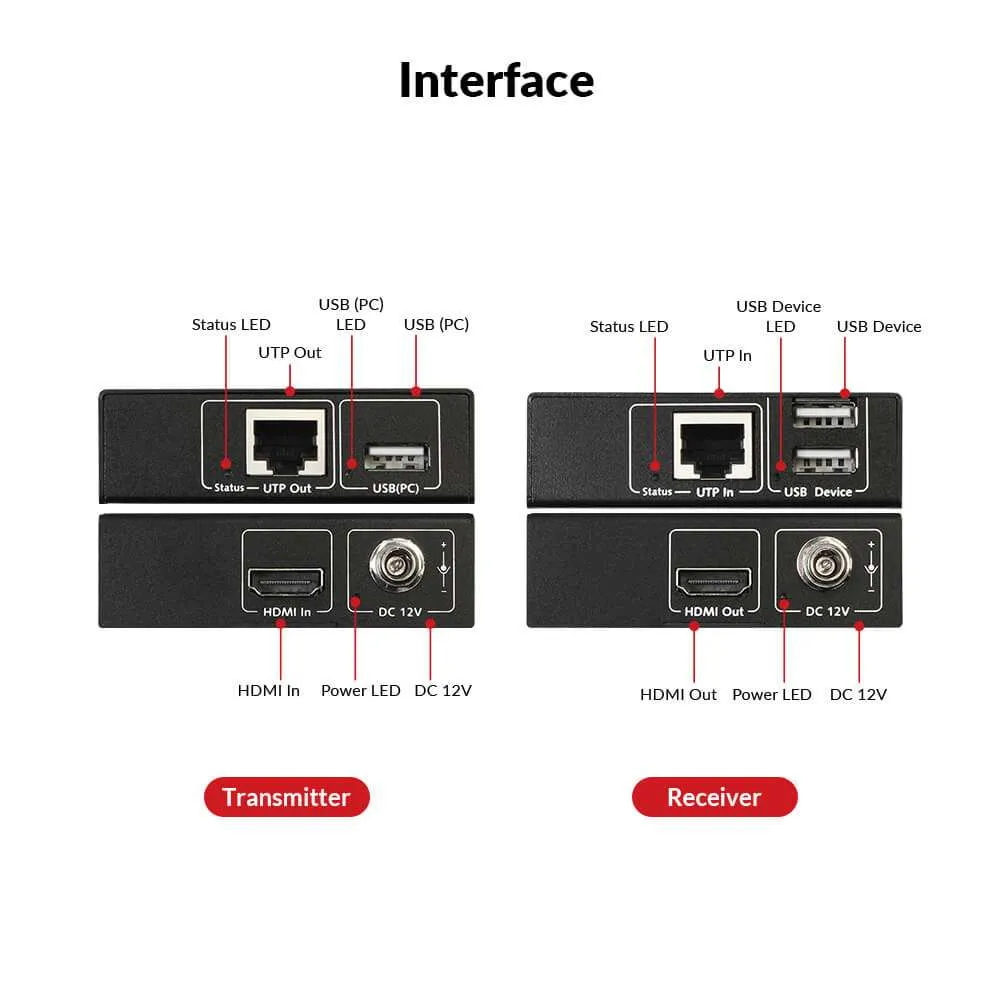

Display Output on Transmitter for local display
Power Only Required on One End
1 Year Warranty
HDMI over Cat5e/6/6a Extender with USB Control
Long Range Video Output
This HDMI extender allows you have video output and control as far as 260FT away from the NVR. This is great for large facilities who need control in a central office, front desk, etc. Direct HDMI output allows smooth, consistent live view without the need to run any software or streams on a computer.
1080p @ 60hz Resolution
This extender gives up to 1080p at 60HZ resolution, high quality, HD streams from up to 260FT away!
Zero Latency
This extender adds zero latency to your image - there's no delay between the NVR output and display. This is critical for live view operations.
USB Control

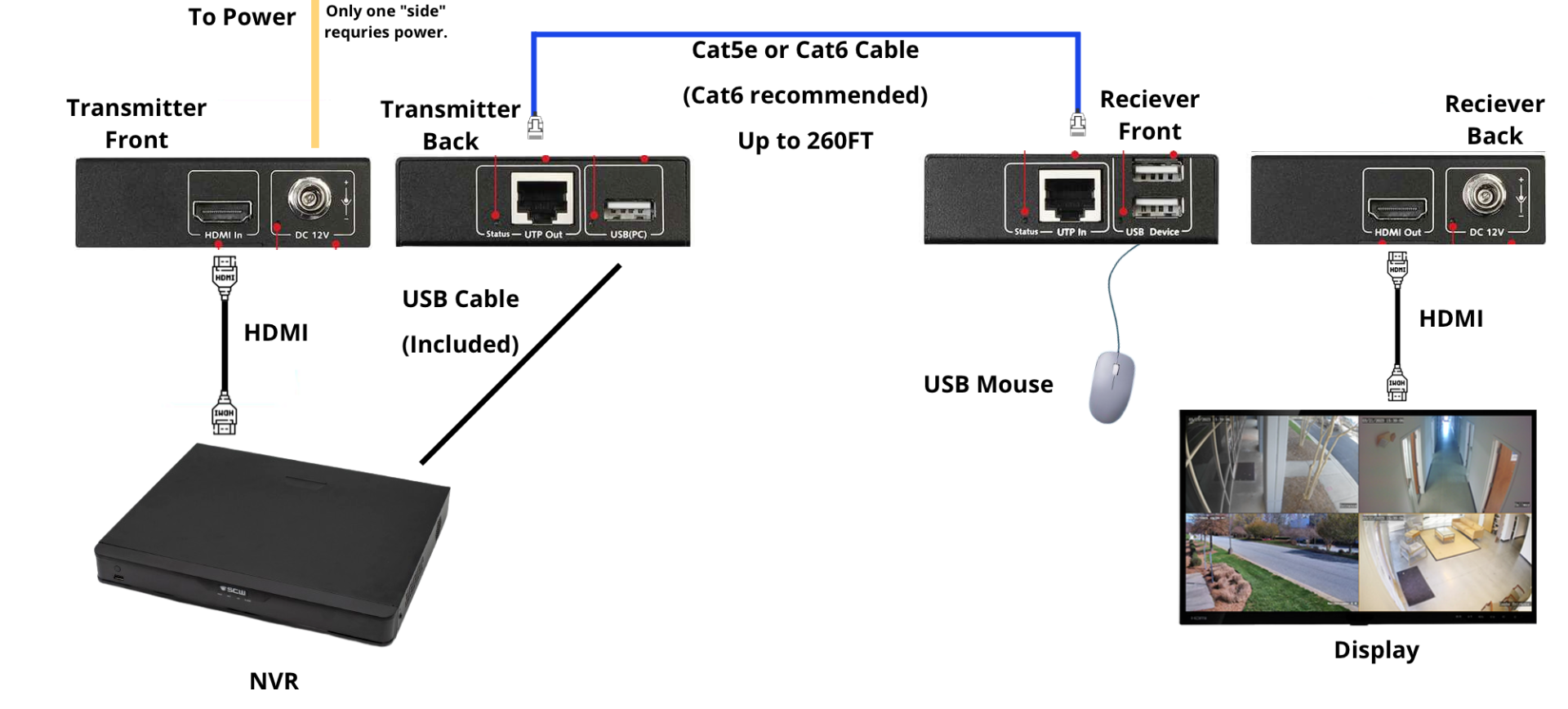

The HDMI extender also allows you to control your NVR with a USB input! Plug the included USB cable from the transmitter to the NVR. Plug the USB mouse into the receivers mouse port.
Note that SCW NVRs have either mirror or independent display outputs. If the NVR has a mirror display output, all displays will show the exact same image. If the NVR has an independent display output, only one NVR HDMI output can act as the "controller" which allows mouse use. The other display acts as a secondary screen, which only shows assigned camera views. Feel free to reach out to SCW with any questions
