Discontinued - 6 HDMI Video Wall Decoding Card for the Imperial 128 Channel 4K NVR
Contact your sales rep for a delivery timeline.

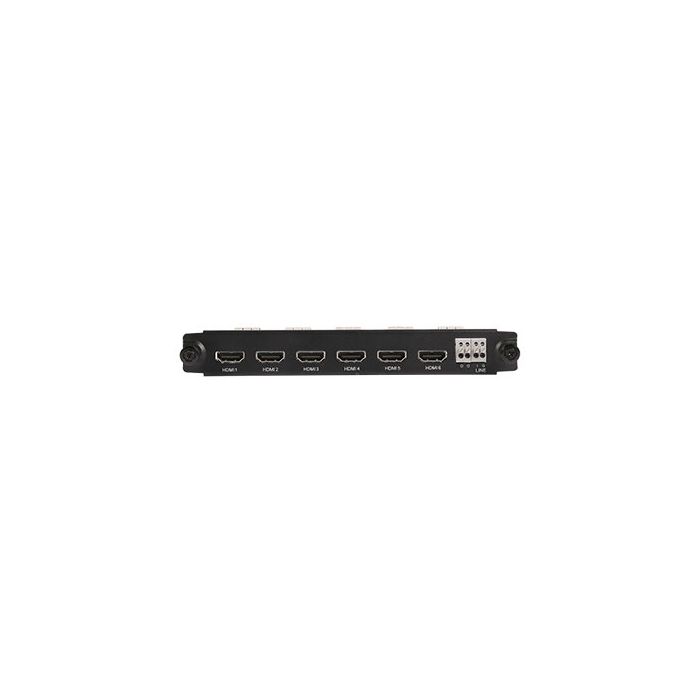

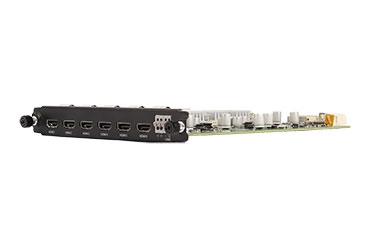

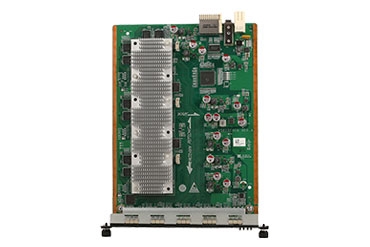

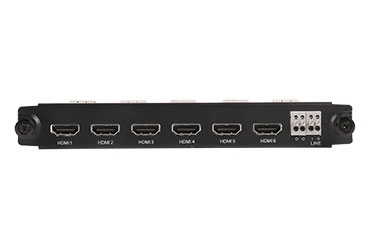

This video decoder allow you to create a video wall by adding 6 additional, independently controlled HDMI outputs to your Imperial 128 Channel 4K NVR.
![](/images/diy-or-install3.png)
No Problem
Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.
Get a Custom Quote for Equipment or Installation
Adds and additional 6 HDMI outputs for the Imperial 128 Channel 4K NVR.
Each HDMI port can have independent, unique camera views.
Each HDMI output supports 1/3/4/5/6/7/8/9/16 view
HDMI card handles decoding capability - does not utilize NVR decoding capability
3 HDMI output at up to 4K (3840x2160) resolution; 3 at 1080P
Supports both H.265 and H.264 video formats
Supports streaming of up to 8 Megapixels resolution
Camera view limits: 12*4K@30, 24*4MP@30, 48*1080P@30, 96*720P
HDMI1 & HDMI2 & HDMI41920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
HDMI3 & HDMI5 & HDMI6 4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
