Garage Door Tilt Sensor for SCW Shield - 74GDT
In stock
Usually ships the same business day if ordered before 2PM EST.
SKU
74GDT
Detects
The opening of any lifting or tilting doors or object (garage doors, display cases, tilting windows)
Alerts
Siren, App Alerts, and Pro Monitoring when Armed (including Away, Stay, and Night modes)
Example Z-Wave Automation: automatically closing the garage door 45 seconds later.
Battery
Averages 10-15 years
Images
Need Installation?
No Problem
Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.
Get a Custom Quote for Equipment or Installation
Triggers at approx. 45 degree tilt
Monitors any lifting or tilting door, or equipment movement.
Mount vertically (the non-alarm position).
10-15 year battery life
3.3×1.4×1.1 inches
Detects
The opening of any lifting or tilting doors or object (garage doors, display cases, tilting windows)
Alerts
Siren, App Alerts, and Pro Monitoring when Armed (including Away, Stay, and Night modes)
Example Z-Wave Automation: automatically closing the garage door 45 seconds later.
Battery
Averages 10-15 years

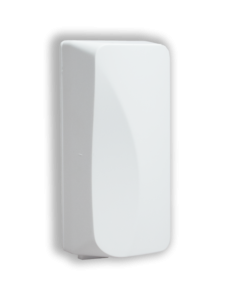

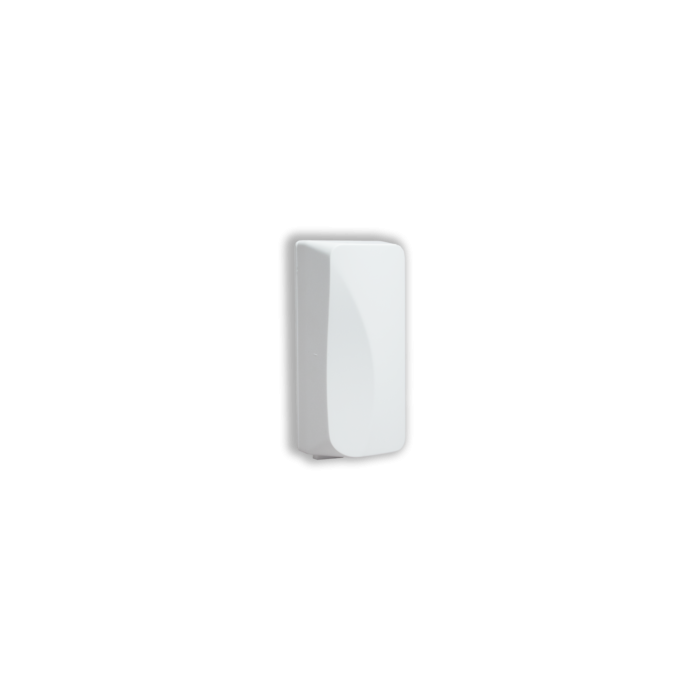

Tilt Sensor for SCW Shield
Physical Specifications |
|
|
Housing Body Dimensions
|
3.3 x 1.4 x 1.1 inches
|
|
Weight with Battery
|
1.90 ounces (54 grams)
|
|
Mounting Fastener
|
#4 or #6 screws (not provided)
|
Environmental Specifications |
|
|
Operating Temperature
|
32 to 120 °F (0 to 49 °C)
|
|
Maximum Humidity
|
85% non-condensing relative humidity
|
Sensor Specifications |
|
|
Frequency
|
433.92MHz
|
|
Replacement Battery
|
One Panasonic CR123A 1550mAH
|
|
Nominal Battery Life
|
10-15 years
|
|
Battery Voltage
|
3.0 VDC (Nominal), 2.2 VDC (Low)
|
|
Current Draw
|
20 mA (Maximum), 0.6 uA (Quiescent)
|
|
Transmitted Indications
|
Cover Tamper, Low Battery, Supervision
|
Certifications |
|
|
Certifications
|
FCC, IC EN50131-2-6, EN 60950-1, EN 300 220, EN 301 489, CE Security Grade 1, CE Environmental Class 2, RCM
|
How to Pair with your SCW Shield Alarm System
You only have to do this when ordering a separate sensor to add to a system. We will normally pair all your sensors when making your initial purchase.
Enroll by placing the panel into wireless enrollment mode and then sending an enrollment signal from the sensor.
How to install

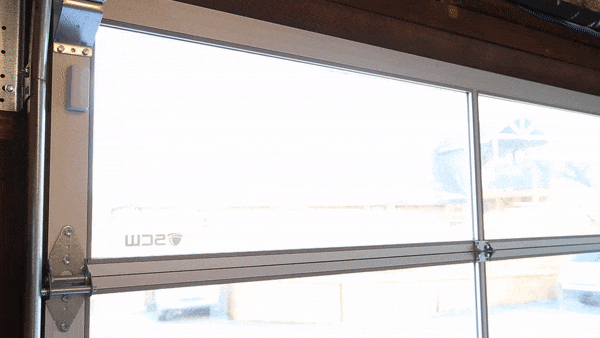

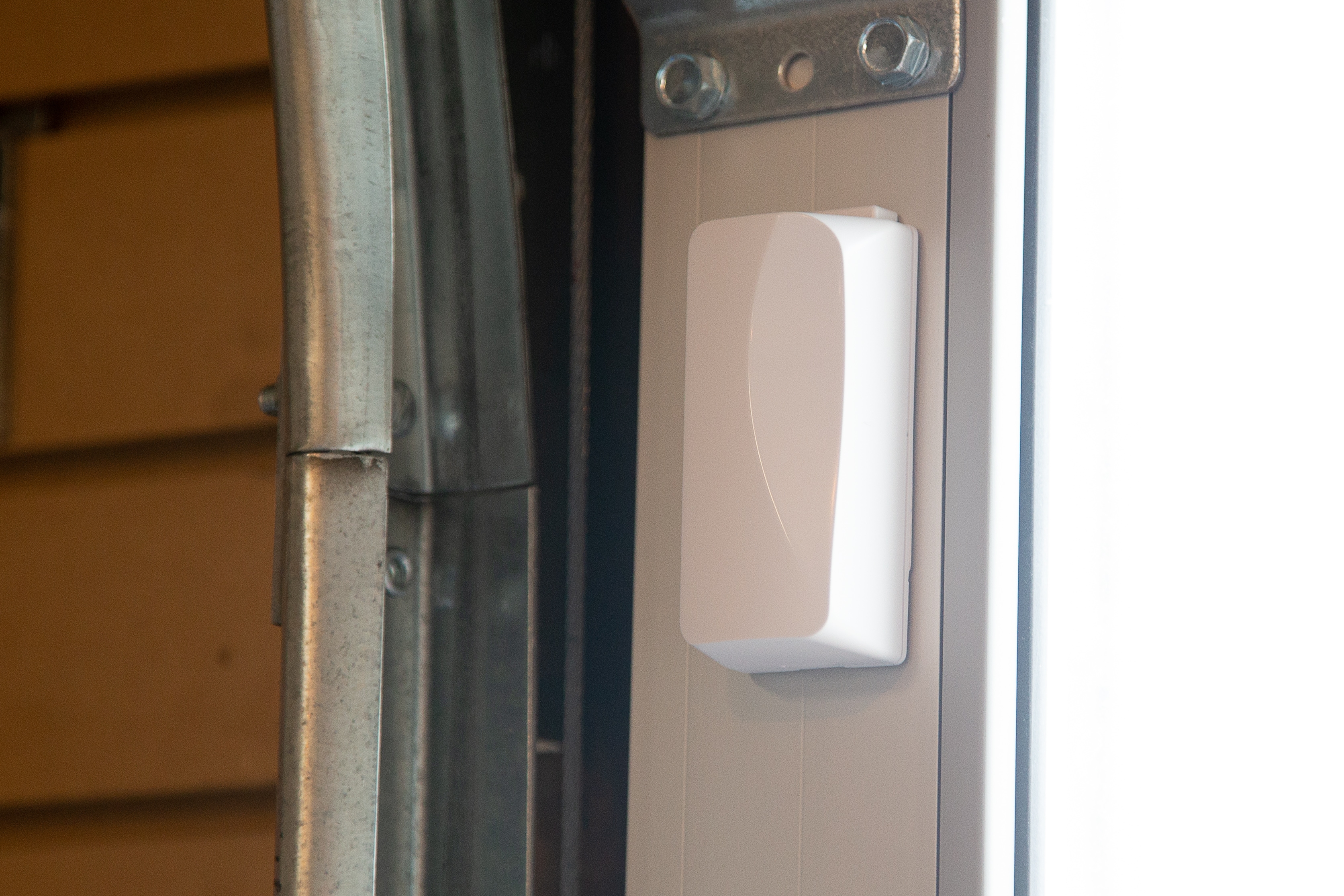

Install by mounting the sensor to the inside of a door or window using the mounting screw locations. For garage door installations, the sensor should be mounted to the top panel of the overhead door. CE installations must use a coversecuring screw.

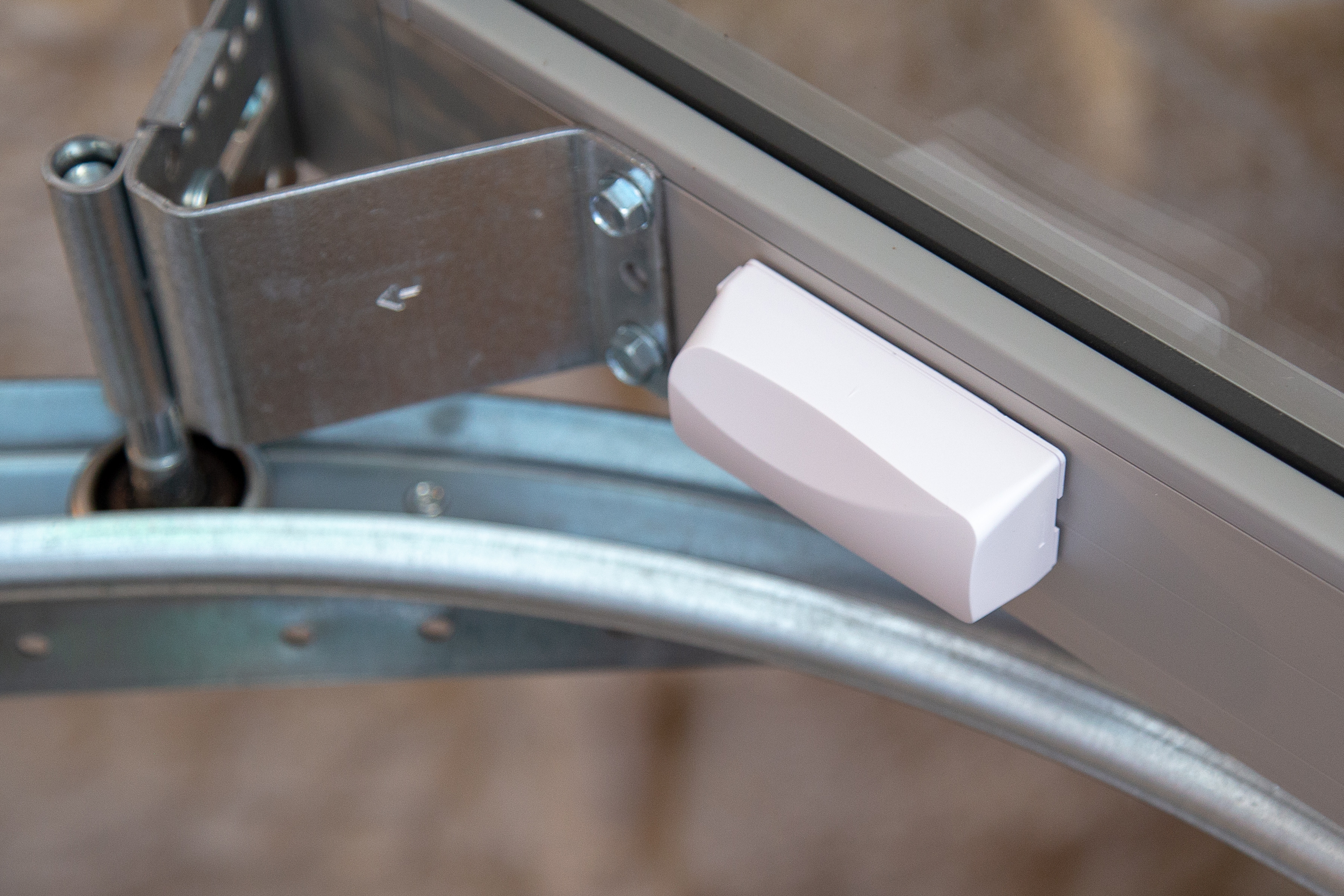

Tilt Detection occurs when the sensor exceeds a 45 degree angle. If the sensor rotates further than 135 degrees, it is likely to remain in a non-alarm state. For best results, the sensor should rotate within 90 degrees to ensure an alarm state occurs.
Pro Tips
3M VHB Tape works great for mounting if the surface is properly prepared and firm pressure is applied for over 10 seconds.
Surface Preparation
• Clean the surface
• Ensure the mounting surface temperature is above 50 °F
