How to Design a Security Camera System for a Grocery Store

Prevent shoplifting, false slip and fall claims, and improve customer service with the right security camera placement. Here is a sample floor plan layout that is covering the important areas of a grocery store.

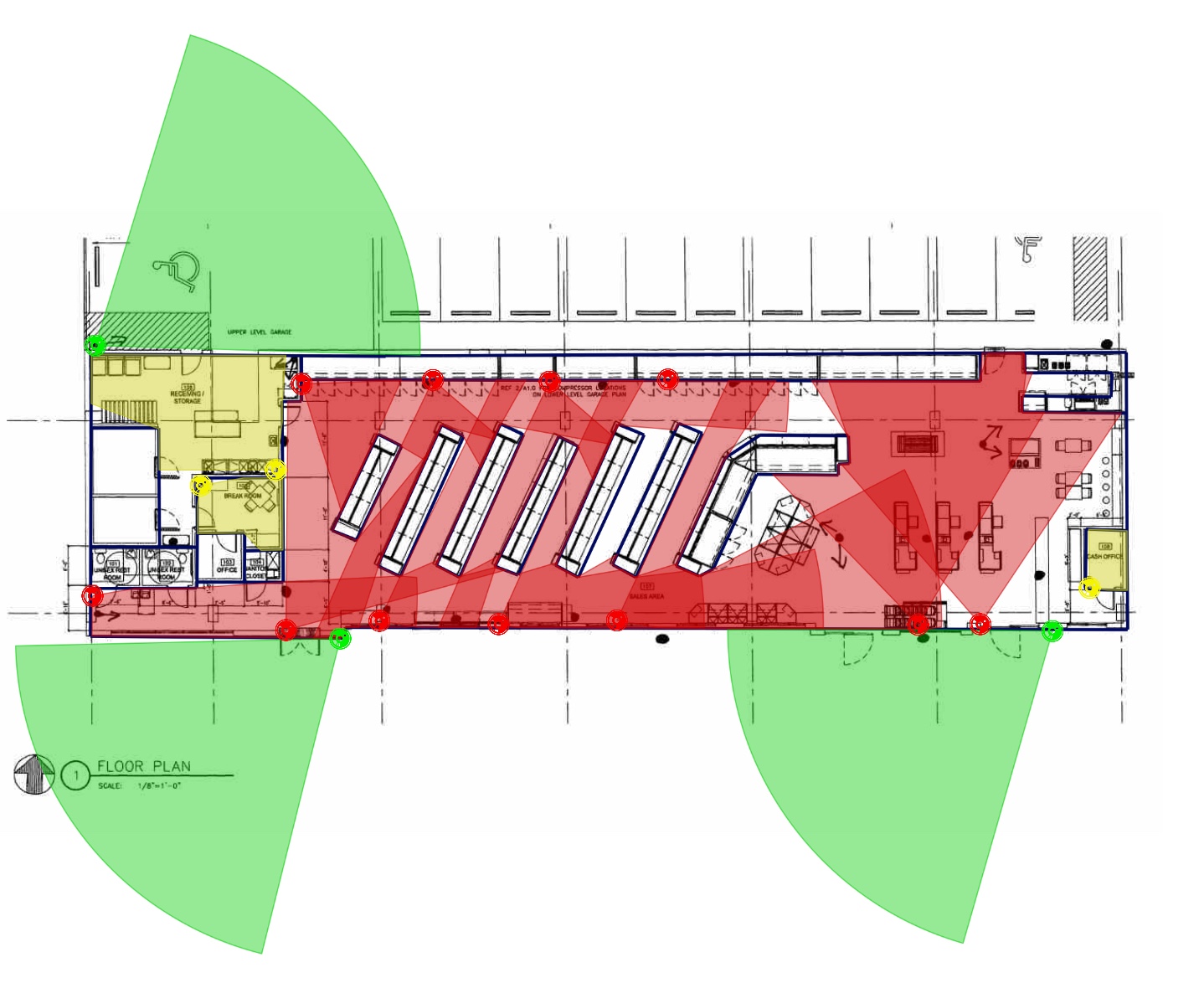

grocery store security camera floorplan

Explanation

Goals: One goal for installing security cameras in a grocery store is to prevent shoplifting. By placing cameras looking up and down the isles, you can protect your inventory. Another goal is to have proof of false slip and fall claims. Coverage of the areas open to customers and employees will give you video evidence if the claim is true or not. Security cameras can help you improve your customer service by keeping an eye on employees whereabouts and productivity as well. Notice in this floor plan there are cameras specifically watching over the areas where cash is handled.


The Red cones represent the Sheriff 4.0 camera. With this camera you will recognize someone up to 50ft away. Doing 101 degrees of coverage, this camera is great for a discrete ceiling mount.


The Green cones show you how far away you can recognize someone with the Warrior 4.0. With this camera, doing 4MP resolution, you will recognize someone up to 75ft away with 80 degrees field of view. This camera model is ideal for outdoor wall mounts to see the entrances and parking lot.


The Yellow cones located around the money, and smaller rooms, are showing the Deputy 2.0. The Deputy 2.0 will recognize someone up to 40ft away. A 2MP resolution, with 110 degrees of coverage, this camera is the widest field of view that we carry.



Want us to create a custom floorplan for your grocery store?

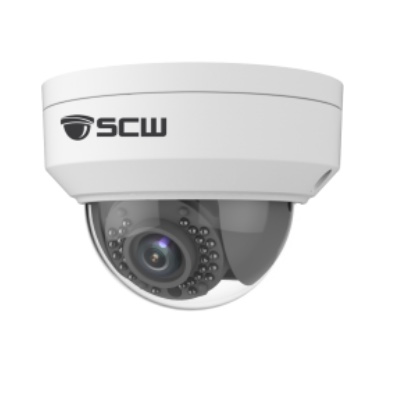

The Sheriff 4.0 - 26DF4-IK10



Resolution

4MP UHD Quality

4MP @ 25 FPS: 2560 x 1440

Detect: 115 ft
Recognize: 50 ft
Identify: 35 ft


Processing Power and Compression: Not All 4MP Cameras are Created Equal


Weather

weatherproof

IP67
Full protection from dust, rain, snow, dew, frost, and sprinklers.

You can even submerge it for a few minutes.


Temp

temperature rating

Temperature rated from -31°F to 140 °F

Humidity rated between 10 and 95%.


Lens

fixed lens

Fixed: 2.8mm
101° of coverage

Digital Zoom Only

Learn about Digital vs Optical Zoom


Day/Night

night footage

Infrared night vision up to 100 FT

Color video possible until 0.02 lux

How to get the best footage at night


Special

special features

IK10 (highest possible rating) Physical Damage Protection

True Wide Dynamic Range (120dB)

Seeing in shadows: Understanding WDR

The Sheriff is very similar to our Deputy model - except that it has a 1K10 vandal proof glass dome surrounding the lens. Glass domes are iconic and what people usually think of with a security camera, but the glass has benefits and drawbacks. Despite our logo being a glass dome camera shape, most of our models don't have them anymore because they aren't that DIY friendly. To install most glass dome cameras, you have to remove the outer dome to reveal the mounting screws and then screw the dome back on after mounting the camera. In more humid areas, this can trap moisture inside the camera; for this reason, most glass dome cameras are installed indoors. The Deputy comes with some silicon moisture absorbing beads to help combat this issue (please don't remove them). Glass domes are sometimes used outdoors especially in situations like college campuses or apartment complexes where "non-destructive vandalism," such as turning the camera away from its intended target, is common. Glass domes do not hide which way the camera is pointed. IK10 is the highest measurement rating for protection from physical damage for security camera products, so it should protect against some destructive vandalism as well.

Sample Photos taken by the Sheriff 4.0. Click to enlarge the images. Press ESC key to close.

10 FT 20 FT 50 FT 75 FT 100 FT

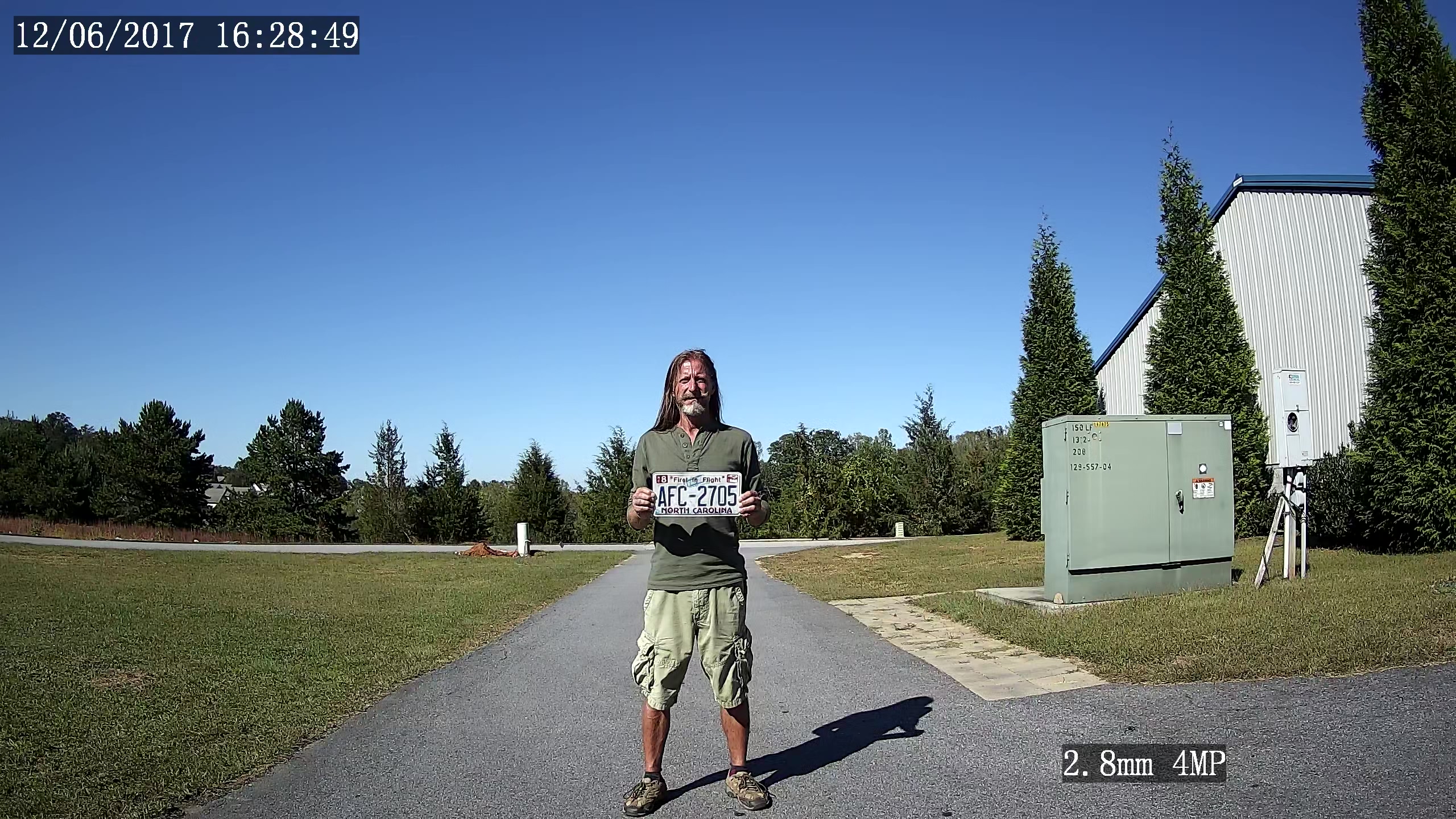

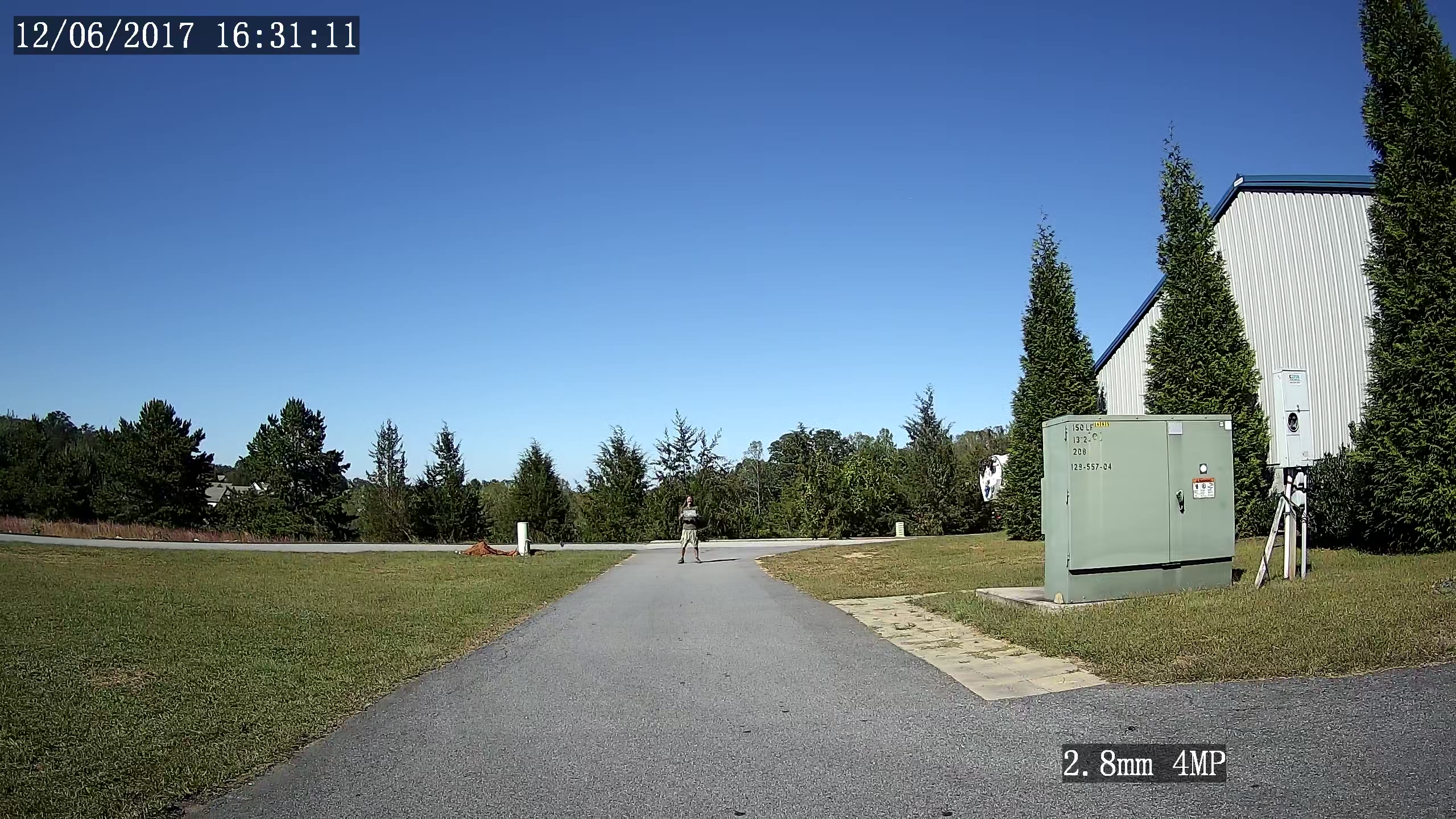

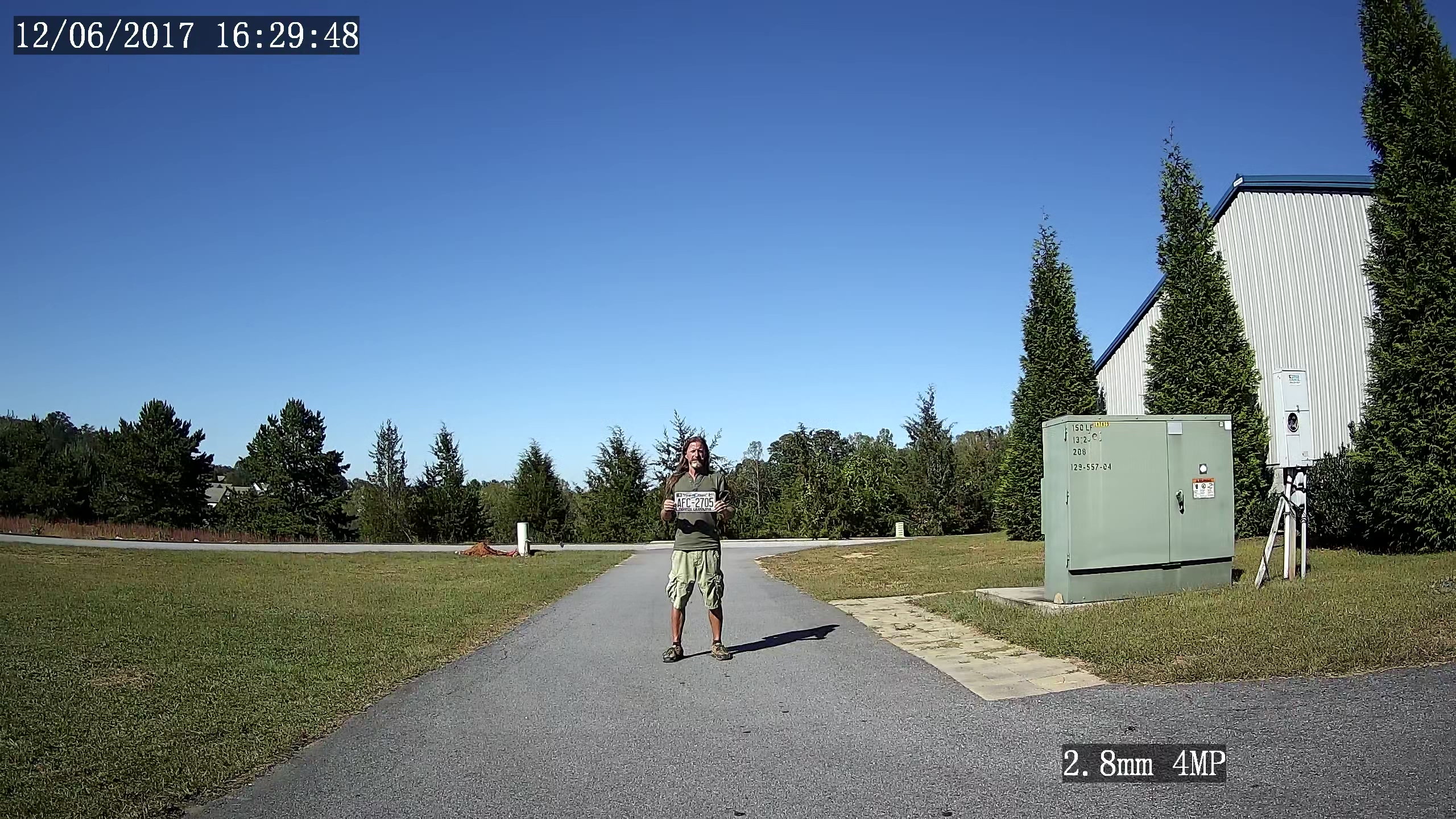

view at 10 feet from a 2.8mm 101 degree FOV lens  4MP security camera view at 20 feet from a 2.8mm 101 degree FOV lens 4MP security camera view at 50 feet from a 2.8mm 101 degree FOV lens 4MP security camera view at 75 feet from a 2.8mm 101 degree FOV lens 4MP security camera view at 100 feet from a 2.8mm 101 degree FOV lens 4MP security camera

detection

Detect someone up to 115 feet

"Detecting" a face means being able to tell that a human face is in the picture.

recognize

Recognize someone up to 50 feet

"Recognizing" a face refers to being able to say "I have seen that person before" - even if you don't know or can't place who it is.

identify

Identify someone up to 35 feet

"Identification" refers to being able to make out identifiable marks with enough certainty to make a sketch or claim.

The Warrior 4.0 -26BF4



Resolution

4MP UHD Quality

4MP @ 25 FPS: 2560 x 1440

Detect: 150 ft
Recognize: 75 ft
Identify: 50 ft


4MP vs 4K


Indoor/Outdoor

weatherproof

IP67
Full protection from dust, rain, snow, dew, frost, and sprinklers.

You can even submerge it for a few minutes.


Temp

temperature rating

Temperature rated from -31°F to 140 °F

Humidity rated between 10 and 95%.


Lens

fixed lens

Fixed: 3.6mm
80.8° of coverage (horizontal)

Digital Zoom Only

Learn about Digital vs Optical Zoom


Day/Night

night footage

Infrared night vision up to 100 FT

Color video possible until 0.02 lux

How to get the best footage at night


Special

special features

True Wide Dynamic Range (120dB)

Seeing in shadows: Understanding WDR

The Warrior is our most popular camera model. It is tied with the Deputy in terms of how easy it is to install and position, since neither camera requires you to remove any part of the camera to screw it into the wall/ceiling/soffit. This makes it ideal for outdoor use as you don't have a tendency to trap moisture in the lens, as is common with dome cameras, where you have to remove the outer glass dome to mount them. The 81 degree lens is great balance between covering a large area and identifying faces and license plates. Although you can use this camera inside or out, the most common use of the Warrior models (the camera comes in 2MP, 4MP, or 8MP) is to cover the side of buildings or large sections of yards.

Sample Photos taken by the Warrior 4.0. Click to enlarge the images. Press ESC key to close.

10 FT 20 FT 50 FT 75 FT 100 FT
view at 10 feet from a 4mm 80 degree FOV lens  4MP security camera view at 20 feet from a 4mm 80 degree FOV lens  4MP security camera view at 50 feet from a 4mm 80 degree FOV lens  4MP security camera view at 75 feet from a 4mm 4MP lens security camera view at 100 feet from a 4mm 80 degree FOV lens  4MP security camera

detection

Detect someone up to 150 feet

"Detecting" a face means being able to tell that a human face is in the picture.

recognize

Recognize someone up to 75 feet

"Recognizing" a face refers to being able to say "I have seen that person before" - even if you don't know or can't place who it is.

identify

Identify someone up to 50 feet

"Identification" refers to being able to make out identifiable marks with enough certainty to make a sketch or claim.

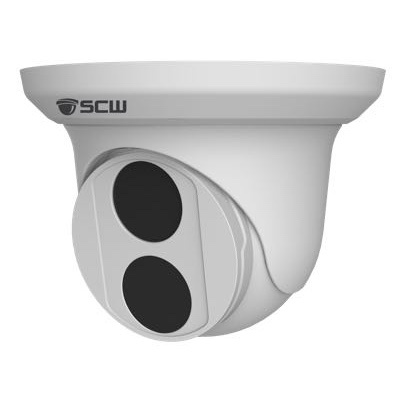

The Deputy 2.0 - 26DF2


The Deputy 2.0 - 26DF2 - 2MP (1080P) Fixed Wide Angle Lens Turret Dome Camera


Resolution

1080p HD

1080P @ 30 FPS; 1920 × 1080

Detect: 75 ft
Recognize: 40 ft
Identify: 20 ft


Processing Power and Compression: Not All 1080P Cameras are Created Equal


Indoor/Outdoor

weatherproof

IP67
Full protection from dust, rain, snow, dew, frost, and sprinklers.

You can even submerge it for a few minutes.


Temp

temperature rating

Temperature rated from -31°F to 140 °F

Humidity rated between 10 and 95%.


Lens

fixed lens

Fixed: 2.8mm
110° of coverage

Digital Zoom Only

Learn about Digital vs Optical Zoom


Day/Night

night footage

Infrared night vision up to 100 FT

Color video possible until 0.02 lux

How to get the best footage at night


Special

special features

Digital Wide Dynamic Range

Seeing in shadows: Understanding WDR

The Deputy is our second most popular camera model. It is tied with the Warrior in terms of how easy it is to install and position, since neither camera requires you to remove any part of the camera to screw it into the wall/ceiling/soffit. This makes it ideal for outdoor use as you don't have a tendency to trap moisture in the lens, as is common with dome cameras, where you have to remove the outer glass dome to mount them. The 110 or 118 degree lens is best used to cover an entire room at once (by installing it in a corner) or to cover a wide area of a smaller yard, as wider lenses always decrease how far away you can identify a person of license plate. Although you can use this camera inside or out, the most common uses of the Deputy models (the camera comes in 2MP, 4MP, or 4K variants) are to install the camera in the corner of a room or to cover front doors and porches outdoors. Two Deputies are often installed back to back to make a 220-236 degree view, such as in the middle of a wall. (This two camera solution has less of that dizzying "fisheye" look that is common with 180 degree cameras and is also usually cheaper.)

Sample Photos taken by the Deputy 2.0. Click to enlarge the images. Press ESC key to close.

10 FT 20 FT 50 FT 75 FT 100 FT

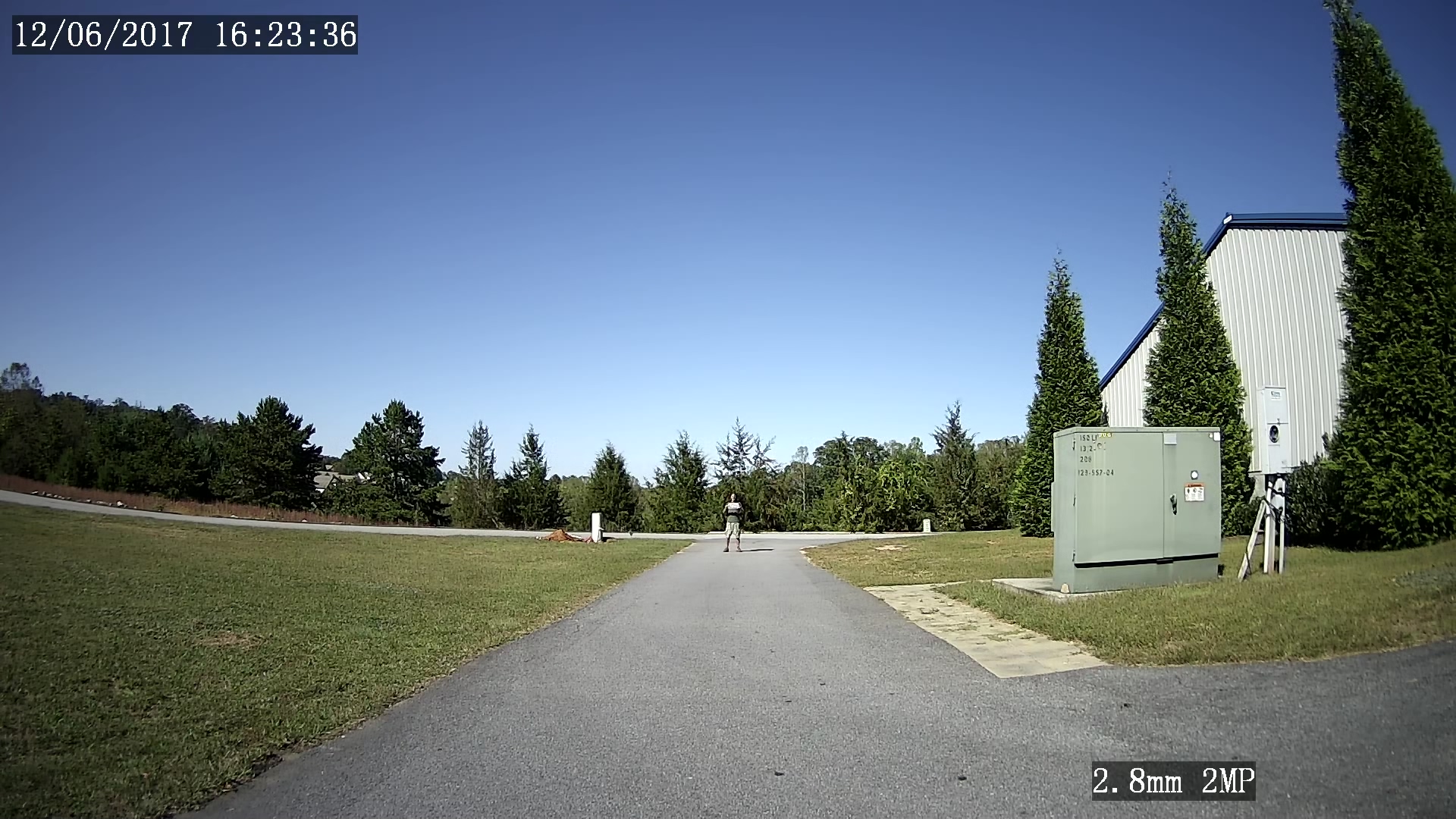

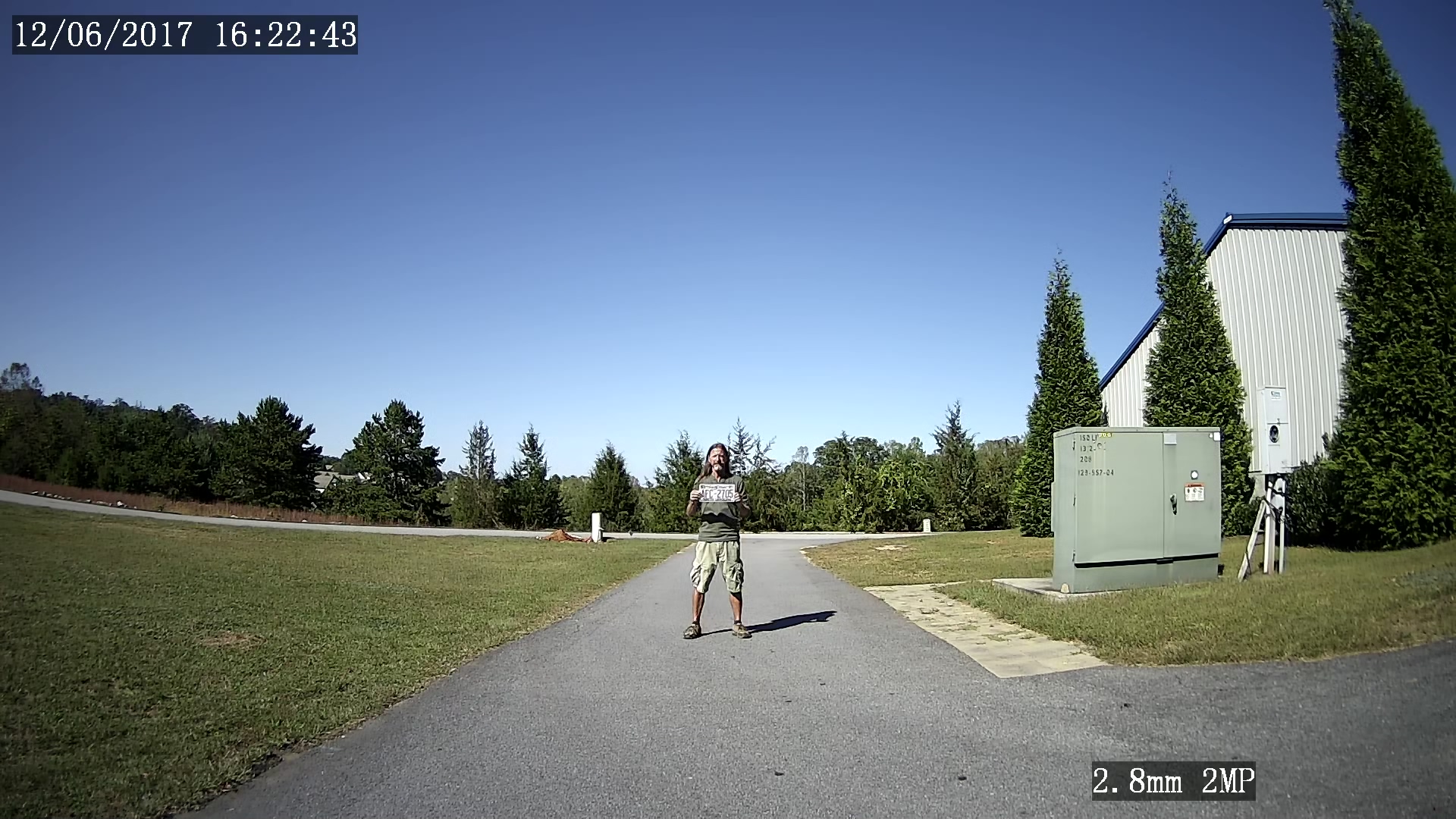

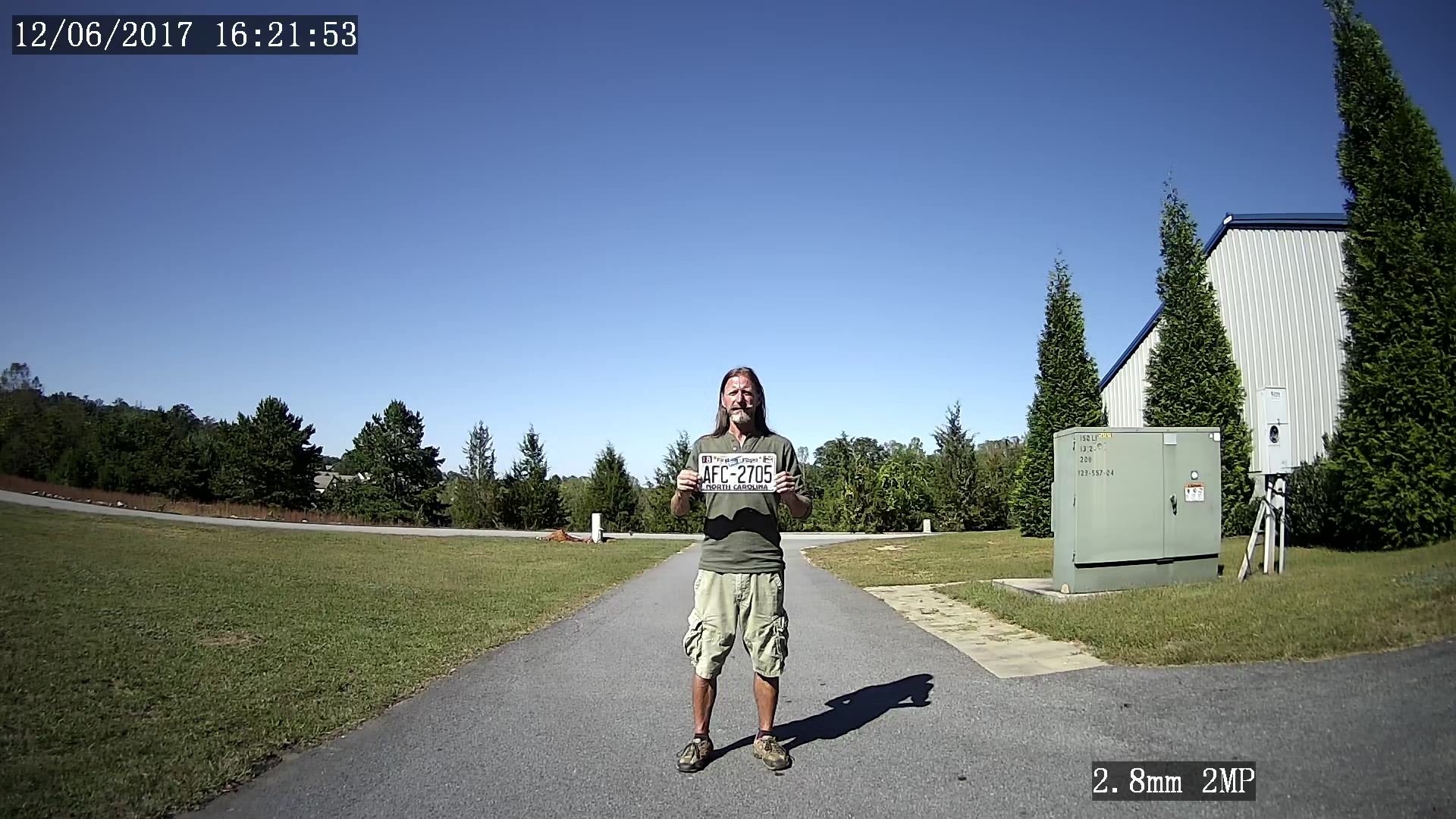

view at 10 feet from a 2.8mm 110 degree FOV lens 1080P security camera view at 20 feet from a 2.8mm 110 degree FOV lens 1080P security camera view at 50 feet from a 2.8mm 110 degree FOV lens 1080P security camera view at 75 feet from a 2.8mm 110 degree FOV lens 1080P security camera view at 100 feet from a 2.8mm 110 degree FOV lens 1080P security camera

detection

Detect someone up to 75 feet

"Detecting" a face means being able to tell that a human face is in the picture.

recognize

Recognize someone up to 40 feet

"Recognizing" a face refers to being able to say "I have seen that person before" - even if you don't know or can't place who it is.

identify

Identify someone up to 20 feet

"Identification" refers to being able to make out identifiable marks with enough certainty to make a sketch or claim.
