Height: 18.11 inches (460 mm)
Depth: 23.62 inches (600 mm)
Width: 21.25 inches (540 mm)

Rated for a maximum loading capacity of 132 pounds

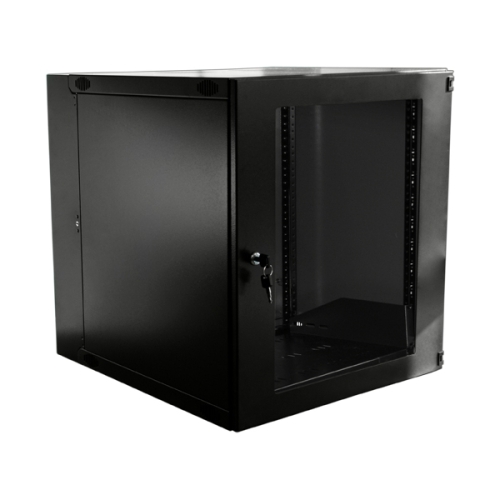

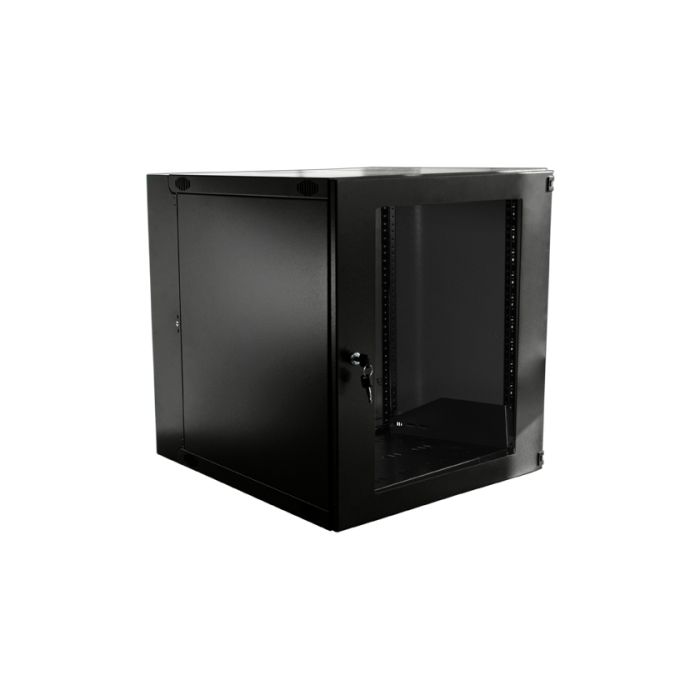

Double Hinge Swing Out Wall Mount Cabinets are a great solution for networking, security, and AV installations where access to the back of the equipment is important. Compatible with all standard 19-inch EIA equipment, these cabinets feature a swing-out design that also allows the rear section to completely disconnect from the cabinet, making installation a breeze. Constructed of cold rolled, powder-coated 19-gauge steel, this swing out wall mount cabinet has a maximum load capacity of 132 pounds. Ships unassembled and flat packed for easy on-site handling.

Features

Locking front and rear doors prevent unauthorized access to equipment
Two sets of rails provide a stable mounting structure
Multiple cable entry options provide greater flexibility during installation
Mounting rails are adjustable to match a variety of equipment sizes
Doors are removable for convenient access to equipment
Top and bottom panel vents to optimize cooling of equipment
Adaptable for use in network, security and audio/video installations
Cable entry on top, bottom and back
Lace points to reduce cable clutter
Lockable acrylic front door is removable and reversible
Lockable rear door swings out 90° from wall for accessibility
14 AWG ground wire connects door and side panels to cabinet frame
Adjustable Rail Depth (3.25")
1.75” RU spacing, marked and numbered on rails
19” W, EIA-310-D universal hole spacing

Included Accessories

(48) 10-32 Mounting Screws & Washers
(1) Grounding Kit
(1) Paper Mounting Template
(2) Keys

Compliance

ANSI/EIA RS-310D
IEC60297-2
DIN41494; Part 1
DIN41494; Part 7
