likes
$135.00
Rack Mount Power Distribution Unit with 10+2 AC Outlets 1U
In stock
Usually ships the same business day if ordered before 2PM EST.
SKU
SCW-RMPDU1U
Rack Mount Power Distribution Unit with 10+2 AC Outlets 1U
Images
Need Installation?
No Problem
Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.
Get a Custom Quote for Equipment or Installation

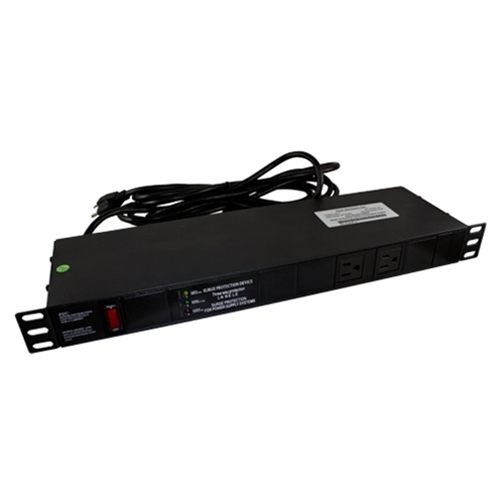

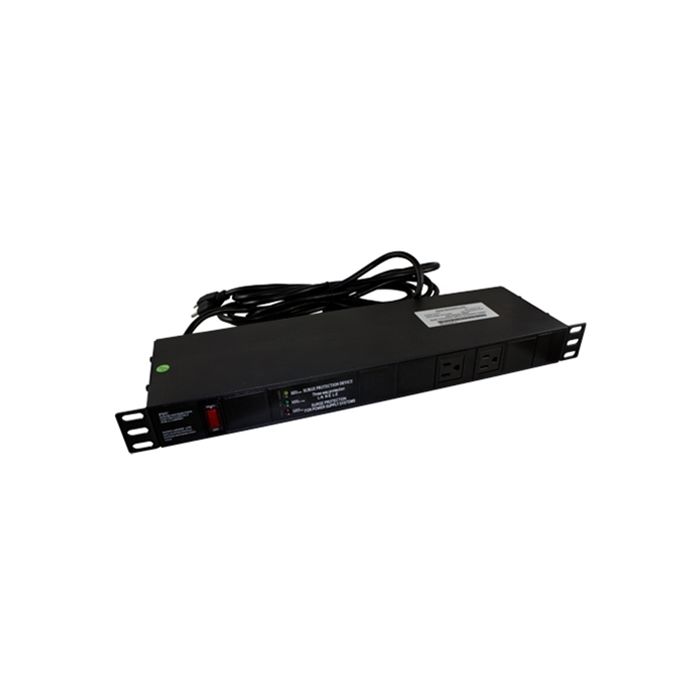

This Rack Mount Power Distribution Unit (PDU) is a solution to many power management problems seen in today's IT environments. Using only 1U, this PDU features a front panel with 2 AC outlets, a lighted On/Off switch, 3 status indicator lights and 10 additional AC outlets on the back panel and is a great addition to any rack or cabinet.
Input Voltage: 120V
Input Frequency: 60Hz
Maximum Input Current: 15A
Plug Type: NEMA 5-15P
Plug Style: Straight
Cord Length: 5 ft (1.5 m)
Cord Specs: 14 AWG 3-Wire Grounded SJT
Output Voltage: 120V
Output Frequency: 60Hz
Output Wattage: 1800W
Circuit Breaker / Overload Protection: 15A
Maximum Continuous Operating Voltage: 130V
Outlet Quantity: 2 Front / 10 Rear
Outlet Type: NEMA 5-15R
Surge Suppression: 700 Joules
Protection Mode: N-H, N-G, H-G
Response Time: <1 Nanosecond
Maximum Surge Current: 10KA
Maximum Surge Voltage: 470V
Clamping Voltage: 775V
EMI/RFI Filtration: 40~60dB@10MHz
PDU Style: Rack Mount 1U)
Pre-Installed Rack Mount Brackets: Removable
Housing Material: PVC and Metal Enclosure
Product Dimensions (HxWxD): 1.75” x 17.5” (without ears)
Product Weight: 3.5 lbs.
UL Certified Power Cord: Yes
RoHS: Yes
Operating Temperature Range: -40° to 70°
Operating Humidity: ≤95%
