Screw in Door Sensor for SCW Shield - 74SDS
In stock
Usually ships the same business day if ordered before 2PM EST.
SKU
74SDS
Images
Need Installation?
No Problem
Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.
Get a Custom Quote for Equipment or Installation
Increased security! This door sensor is designed to be screwed into the door and frame, rather than stick on. It's a good option for commercial doors or areas where people may try removing sensors.
Detects
Doors Opening and Closing
When would I use motion sensors, glass break sensors, vs. windows open sensors?
Actions
Allows you 60 seconds to enter your code into the pin pad before alert
Siren, App Alerts, and Pro Monitoring when Armed (including Away, Stay, and Night modes)
Open/Close status visible on Shield app
Example Z-Wave Automation: turning on your foyer lights when you enter the door.
Battery
Averages 6 years
Screw in option, recommended for retail/commercial doors
Maximum range: transmits power at the full FCC limits
Averages 6 year battery life
Requires the SCW Shield Alarm Hub
Scew in Door/Window Open / Close Alarm Sensor for SCW Shield
Physical Specifications |
|
|
Housing Body Dimensions
|
3.25 x 1.40 x 1.05 inches (8.3 x 3.6 x 2.7 cm)
|
|
Weight with Battery
|
1.90 ounces (54 grams)
|
|

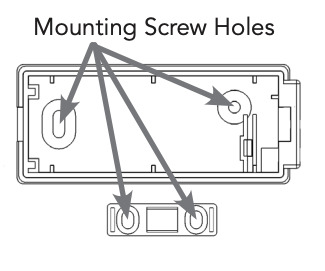

Mounting Fastener
|
#4 or #6 screws (not provided)
|
Environmental Specifications |
|
|
Operating Temperature
|
32 to 120 °F (0 to 49 °C)
|
|
Maximum Humidity
|
85% non-condensing relative humidity
|
Sensor Specifications |
|
|
Frequency
|
433.92MHz
|
|
Replacement Battery
|
One Panasonic CR123A
|
|
Nominal Battery Life
|
6-10 years (varies based on door open frequency)
|
|
Battery Voltage
|
3.0 VDC (Nominal), 2.62 VDC (Low)
|
|
Current Draw
|
20 mA (Maximum), 0.6 uA (Quiescent)
|
Certifications |
|
|
Certifications
|
UL634, ULC634, ETL, FCC, IC, EN50131-2-6, EN 60950-1, EN 300 220, EN 301 489,
CE Security Grade 1, CE Environmental Class 2, RCM
|
