$630.00

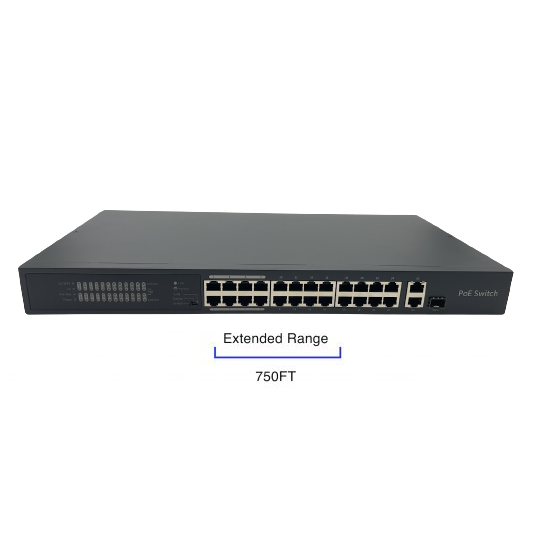

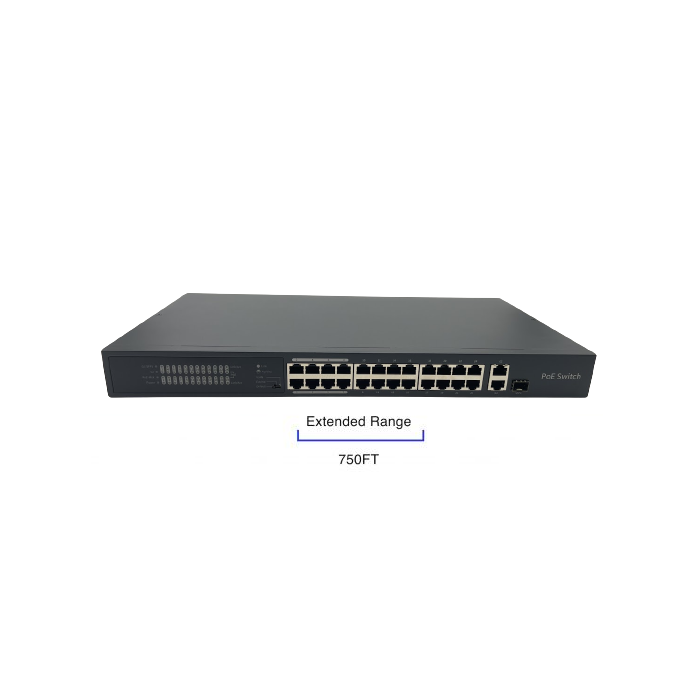

SCW 24 Port PoE Switch with Extended Transmission - SW24PEXT-V2
In stock
Usually ships the same business day if ordered before 2PM EST.
SKU
SW24PEXT-V2
Ports
No. of POE Camera Ports: 24
No. of Uplink Ports: 2 x SPF, 2 x Gigabit RJ45
Compliance
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X
ANSI/IEEE 802.3 NWay
IEEE 802.3x flow control
IEEE 802.3af PoE
IEEE 802.3at PoE
Power
Supports up to 30W for each PoE port
Total Output is 400W
AC Input Voltage: 100 ~ 240 VAC
Networking
10M/100M/1000M
max 750 ft cable distance for SCW Admiral or Imperial line cameras
max 300 ft cable distance for other cameras
Images
Need Installation?
No Problem
Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.
Get a Custom Quote for Equipment or Installation
SCW 24 Port PoE Switch with Extended Transmission - SW24PEXT-V2
24×10/100Mbps POE Ethernet ports
2x Gigabit, 1X SFP
PoE complies with IEEE802.3af/at, up to 30W for single port
Up to 750 feet transmission distance with SCW Admiral or Imperial line cameras.
Easy to use, no need to configure
Note: Extended transmission only works directly to Admiral or Imperial line cameras. It does not work to other network devices or other switches.
High quality all metal housing
Includes 1 RU Rack Ears
| Item | Description |
| Ports | 24×10/100Base-TX autosensing Ethernet ports(all support PoE) 2×Gigabit combo ports / 1x SFP |
| Port attribute | 10/100/1000Mbit/s transfer rate Half-duplex, full-duplex and auto-negotiation Auto MDI/MDIX |
| Standards | IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X ANSI/IEEE 802.3 NWay IEEE 802.3x flow control IEEE 802.3af and IEEE 802.3at PoE PoE |
| MAC | 16K |
| Packet forwarding rate | 6.55Mpps |
| Switching capacity | 8.8Gbps |
| EXTEND mode | Disabled: all ports can communicate with each other, and monitoring optimization is disabled. Enabled: downlink ports can only communicate with uplink ports; monitoring optimization is enabled, and transmission distance can be extended to up to 250 meters. |
| Status LEDs | Link/Act (steady green): link is normal Link/Act (flashing green): data is being forwarded Link/Act (off): no link |
| PoE (steady orange): the port is powering a powered device properly PoE (off): the port is not connected to any powered device or is not supplying power | |
| Power (steady green): AC input is normal Power (off): AC input is abnormal | |
| PoE | 802.3at/af Max PoE capacity: 370 W |
| Consumption | ≤ 450 W |
| AC voltage | 100-240 V |
| Operating temperature | 0°C-40°C (32°F-104°F) |
| Operating humidity | 10%-85% |
| Storage temperature | -10°C-70°C (14°F-158°F) |
| Storage humidity | 10%-90% |
| Dimensions (W×D×H) | 440mm×280mm×44mm (17.3"×11"×1.7") |
