Touch Screen Panel Pro for SCW Shield - 74TSPP
Usually ships the same business day if ordered before 2PM EST.
Touch Panel for SCW Shield
Arm, Disarm, check Status and more with the Touch Panel for SCW Shield
Arm/Disarm
Easy and intuitive to arm, disarm, control, and check the status of your SCW Shield
Disarm your SCW Shield with a Secure, 4-digit Code
1-touch arming
Z-Wave Automation Control
Sound for Chimes/Arming
Apps, pin pads, and keyfobs: How do I disarm my SCW Shield Alarm?
Home Automation
Example Z-Wave Automation: arming the system (by pin pad, app, or key fob) could turn your foyer lights off, turn our oven off, and set your thermostat to power saving mode.
Example Z-Wave Automation: disarming the system (by pin pad, app, or key fob) could turn your foyer lights on, set your thermostat to a comfortable temperature, and turn on a wall plug for your favorite music player.
Battery
Backup battery - up to 4 hours
No Problem
Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.
Get a Custom Quote for Equipment or Installation
7" Color Touchscreen
Easy and intuitive to arm, disarm, control, and check the status of your SCW Shield
Disarm your SCW Shield with a Secure, 4-digit Code
1-touch arming
Z-Wave Automation
Sound for Chimes/Arming
Apps, pin pads, touch panels and keyfobs: How do I disarm my SCW Shield Alarm?
Home Automation
Example Z-Wave Automation: arming the system (by pin pad, app, or key fob) could turn your foyer lights off, turn our oven off, and set your thermostat to power saving mode.
Example Z-Wave Automation: disarming the system (by pin pad, app, or key fob) could turn your foyer lights on, set your thermostat to a comfortable temperature, and turn on a wall plug for your favorite music player.
Backup Battery
Up to 4 hours of backup
The SCW Shield has 4 Statuses:
Disarmed - Use this when you are at home and don't want the alarm to send any intrusion alerts. For example, when you are going in and out frequently and don't want to input your code every time.
Armed: Stay - Use this when you are at home but don’t plan to open any doors or windows. On stay arming, perimeter sensors such as door and window sensors will set off an alarm. Motion detectors will not set off the alarm.
Armed: Away - Use this when you are leaving your home or business. On away arming, all sensors, including motion detectors will cause an alarm.
Panic Mode - - A panic alarm will cause your monitoring company to dispatch the police.
The SCW Shield Pin Pad Operation:

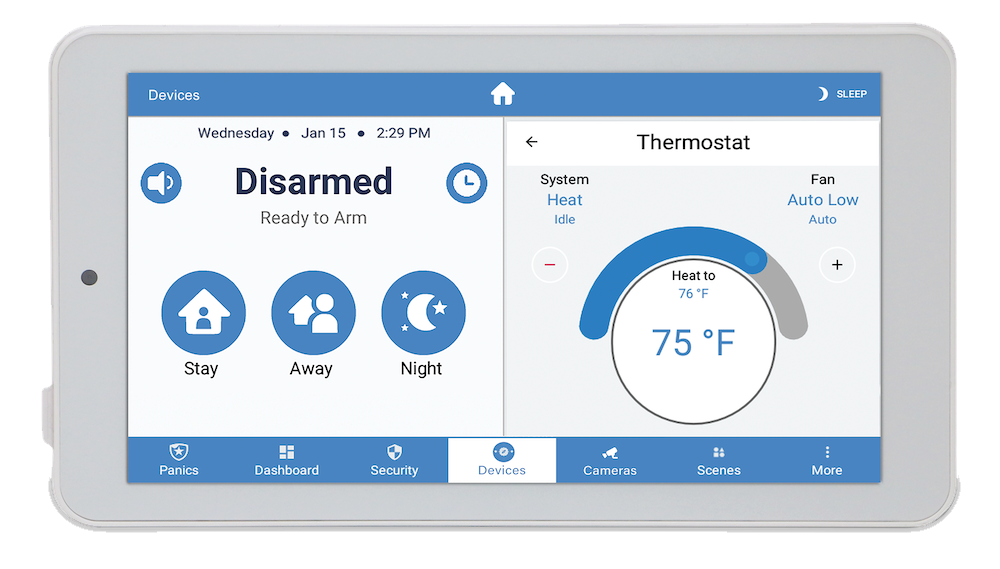

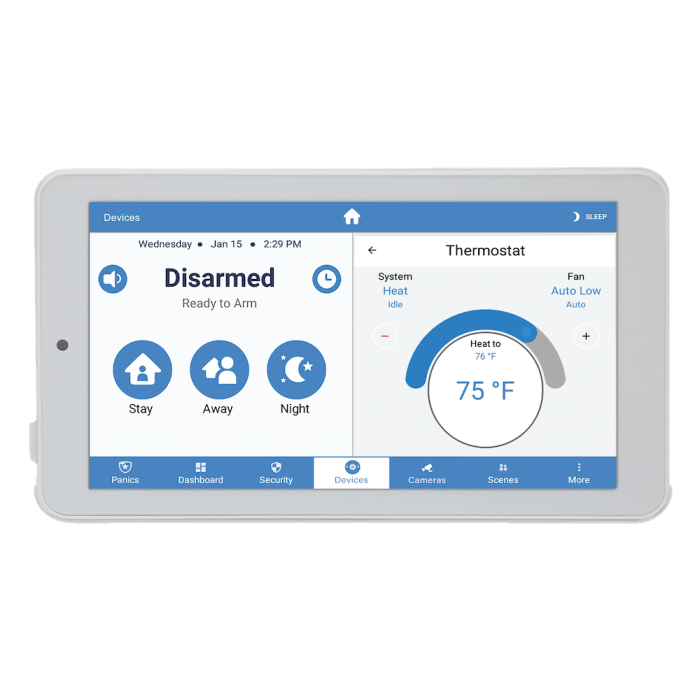

7 inch touch screen shows arming status and one tap arming of the different states.
To put your SCW Shield into Panic Mode with the touch panel, press the panic button. Options to call the fire, police, or auxiliary support will show up, tap and hold the required service for 2 seconds.
Other Info:
Touchpad can be mounted on a wall or sit on a tabletop. Wall mounting equipment included.
Touchpad requires to install the wireless card into the Shield hub (included).
Shield hubs can support up to 4 touch panels.
Backup Battery up to 4 hours
