$1,200.00

The Watchkeeper 4.0 Dual Vision

4MP (2x1080P) 6 inch PTZ with 4MP Fixed Lens Camera

In stock

Usually ships the same business day if ordered before 2PM EST.

SKU

26ZV4M-DV

At SCW we've often stressed the importance of having wide angle coverage when using a PTZ. Now we've got a PTZ where the wide angle coverage is built right in! See both the wide and details with the Watchkeeper 4.0 Dual Vision PTZ!

This camera uses two streams on your NVR, and gives you both a 4MP 95° wide angle fixed lens camera and a 25x 4MP 30FPS PTZ camera! All with just one cable run!

It also has a white light on the fixed lens camera - so the white light is on during night time constantly.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The Watchkeeper 4.0 Dual Vision

4MP (2x1080P) 6 inch PTZ with 4MP Fixed Lens Camera

$1,200.00

Images

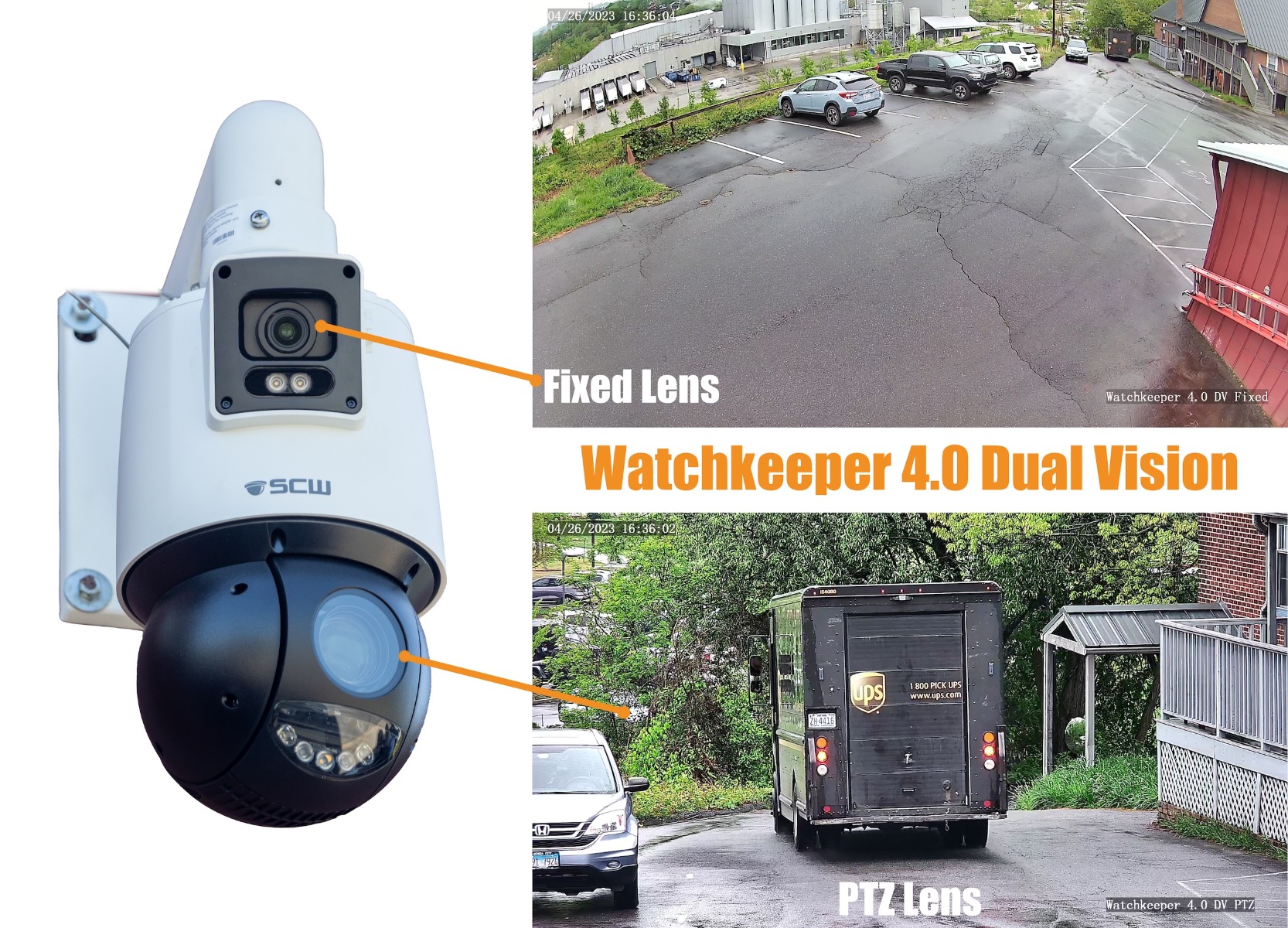

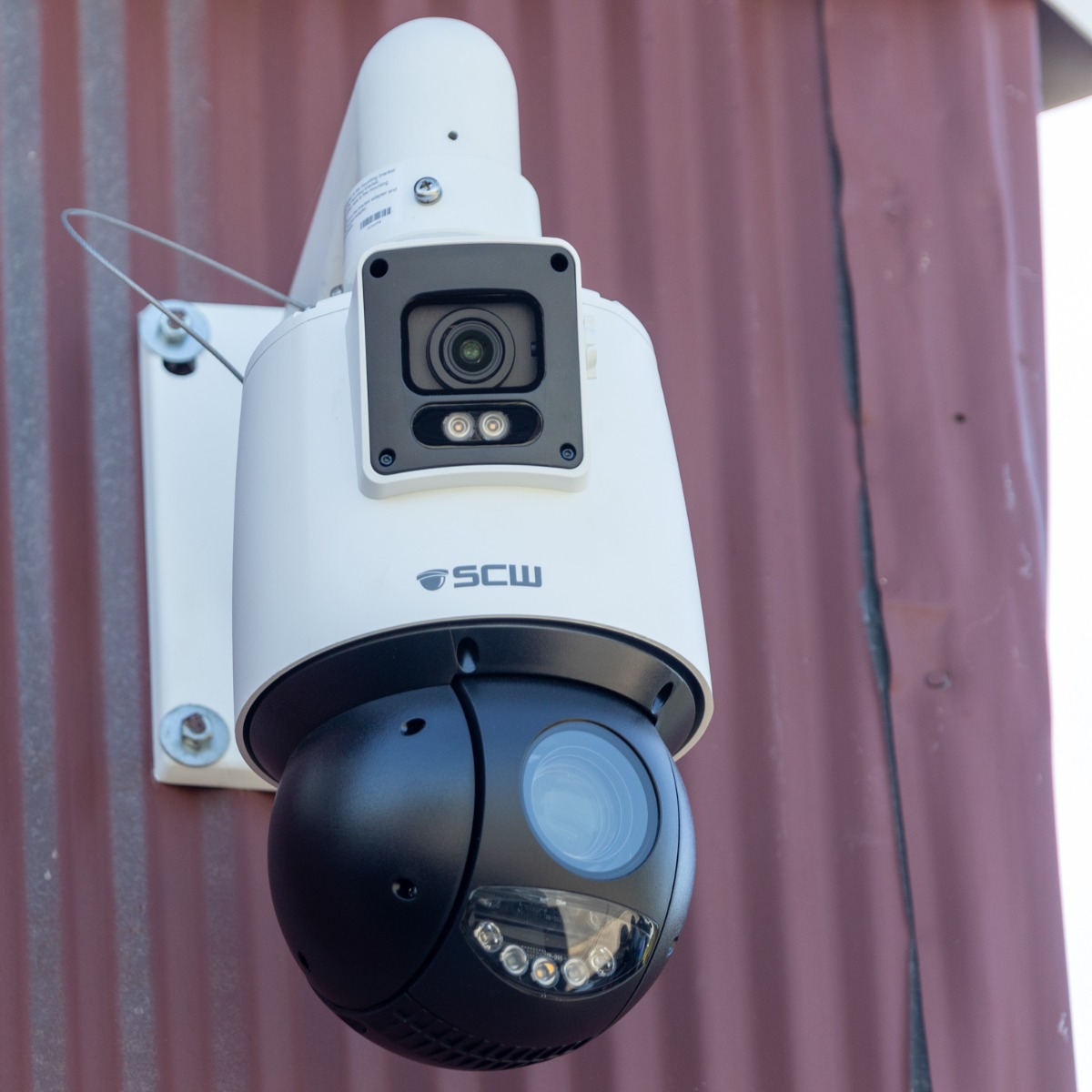

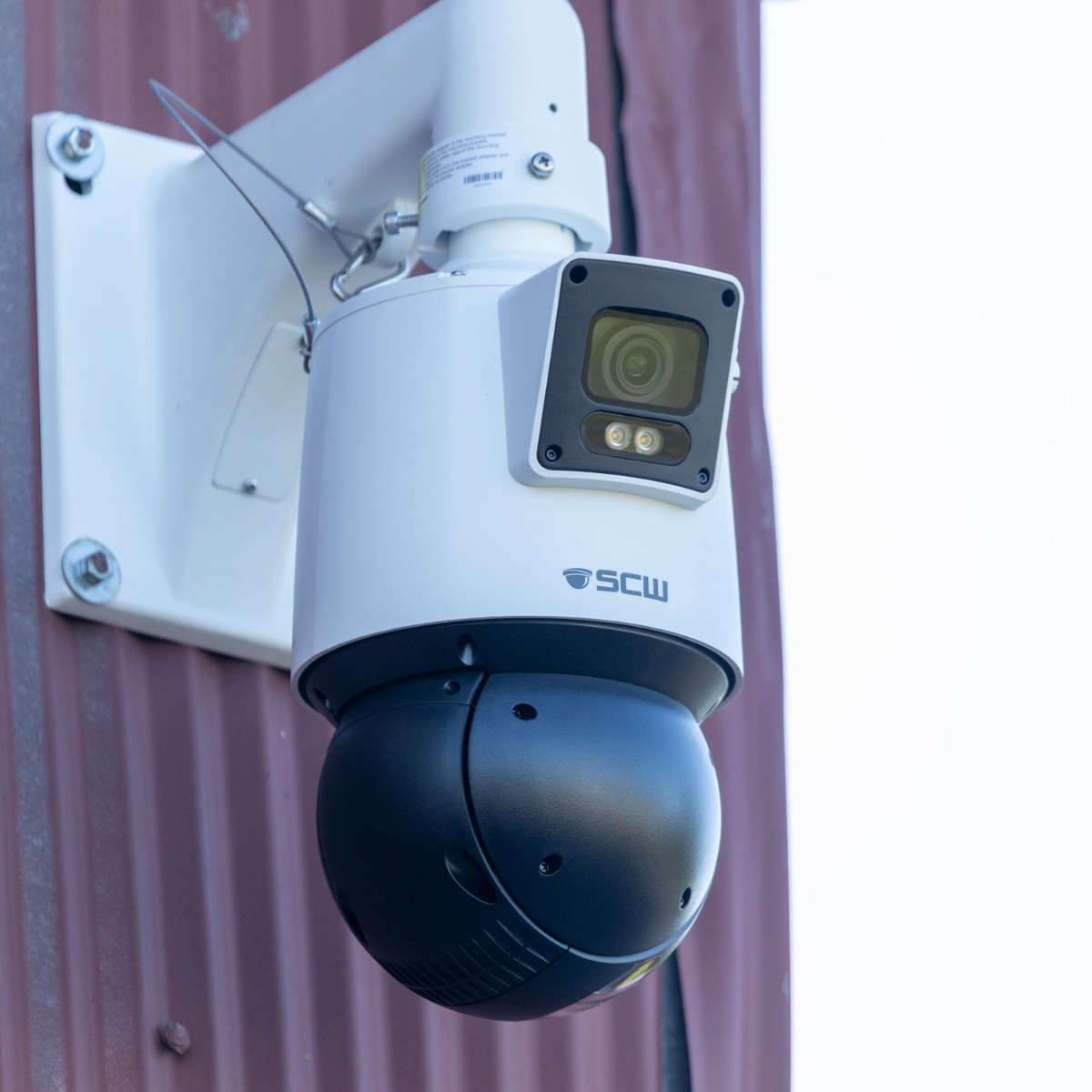

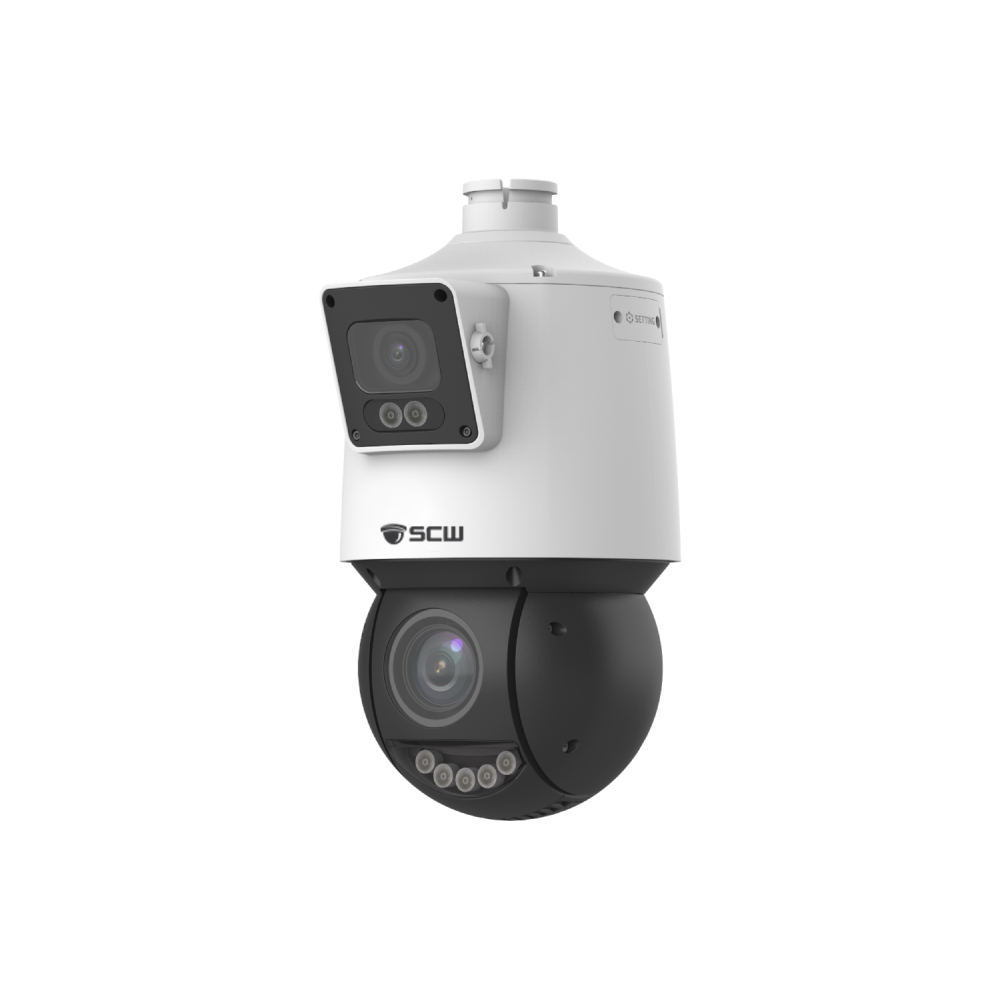

The Watchkeeper Dual Vision 4.0 PTZ + Fixed Lens Camera

Videos

Need Installation?

No Problem

Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.

Get a Custom Quote for Equipment or Installation

Product Description

The Watchkeeper Dual Vision 4.0 is a newer, advanced camera. SCW recommends current, active NVRs for the best compatibility. Older NVRs may be unable to record motion on the PTZ and be required to record 24/7.

This camera uses two streams on your NVR, and gives you both a 4MP 95° wide angle fixed lens camera and a 25x 4MP 30FPS PTZ camera! All with just one cable run!

It also has a white light on the fixed lens camera - so the white light is on during night time constantly.

Resolution

PTZ Lens 4MP @ 30 FPS 2688 x 1520

Fixed Lens 4MP @ 30 FPS 2688 x 1520

PTZ Detect: 1000 ft
Recognize: 900 ft
Identify: 800 ft

Fixed Lens Detect: 150 ft
Recognize: 75 ft
Identify: 50 ft

Processing Power and Compression: Not All 1080P Cameras are Created Equal

Indoor/Outdoor

IP66
Full protection from dust, rain, snow, dew, frost, and sprinklers.

Temp

Extreme Cold Temperature rated from -40°F to 149°F

Humidity-rated between up to 90%.

Lens

Motorized PTZ Varifocal: 4.8 - 120mm
55.6° - 3.09° of coverage

Fixed Lens Camera 4mm Lens
95° of coverage

Digital Zoom and Optical Zoom

Learn about Digital vs Optical Zoom

Day/Night

PTZ Infrared night vision up to 325 FT

Fixed Lens White light Up to 100 FT

How to get the best footage at night

Special

Dual Camera Design - Wide Angle + Detail

Built in Speaker

Active Deterrence

Dual Lighting (IR on PTZ and White Light on Fixed)

Audio Input and Output
Audio Input/Output FAQ

True 120db Wide Dynamic Range

NDAA Compliant M-Star CPU

30 Frames Per Second

Compact 6 inch PTZ

MicroSD Card Slot

Pan: 360° (endless) rotation
Tilt: -15° ~ +90° (auto-reverse)

Seeing in shadows: Understanding WDR

Sample photos taken from the Lookout 2.0 v2, which offers similar visual performance - Watchkeeper 4.0 images incoming shortly.

2MP at 4.5mm - Zoomed Out Fully:

Click to enlarge the images. Press ESC key to close.

148mm at 2MP - fully zoomed in, smallest angle of view

100 FT	200 FT	400 FT	600 FT	800 FT	900 FT

Detect someone up to 950 feet

"Detecting" a face means being able to tell that a human face is in the picture.

Recognize someone up to 850 feet

"Recognizing" a face refers to being able to say "I have seen that person before" - even if you don't know or can't place who it is.

Identify someone up to 800 feet

"Identification" refers to being able to make out identifiable marks with enough certainty to make a sketch or claim.

What makes the Watchkeeper 4.0 DV Unique:

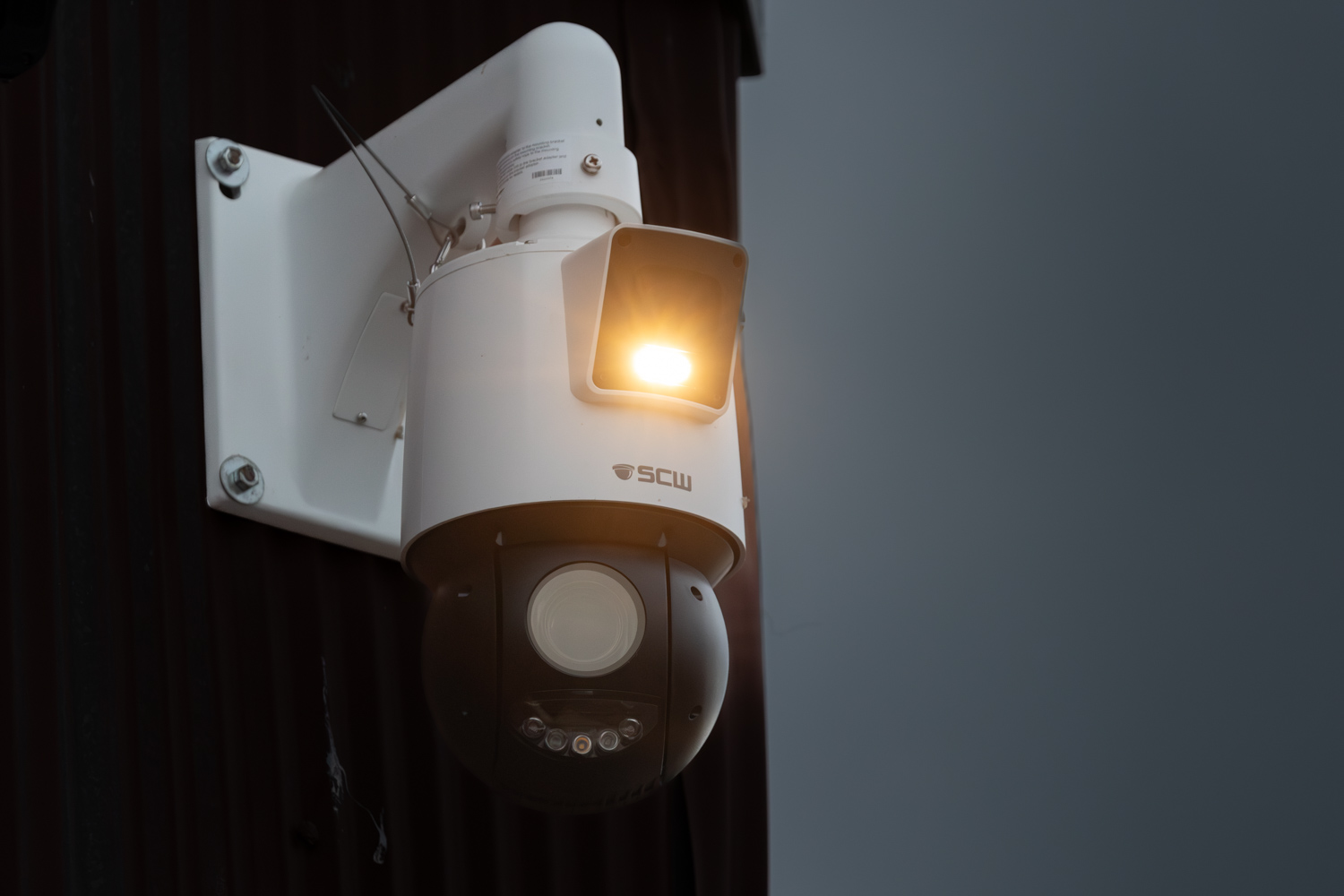

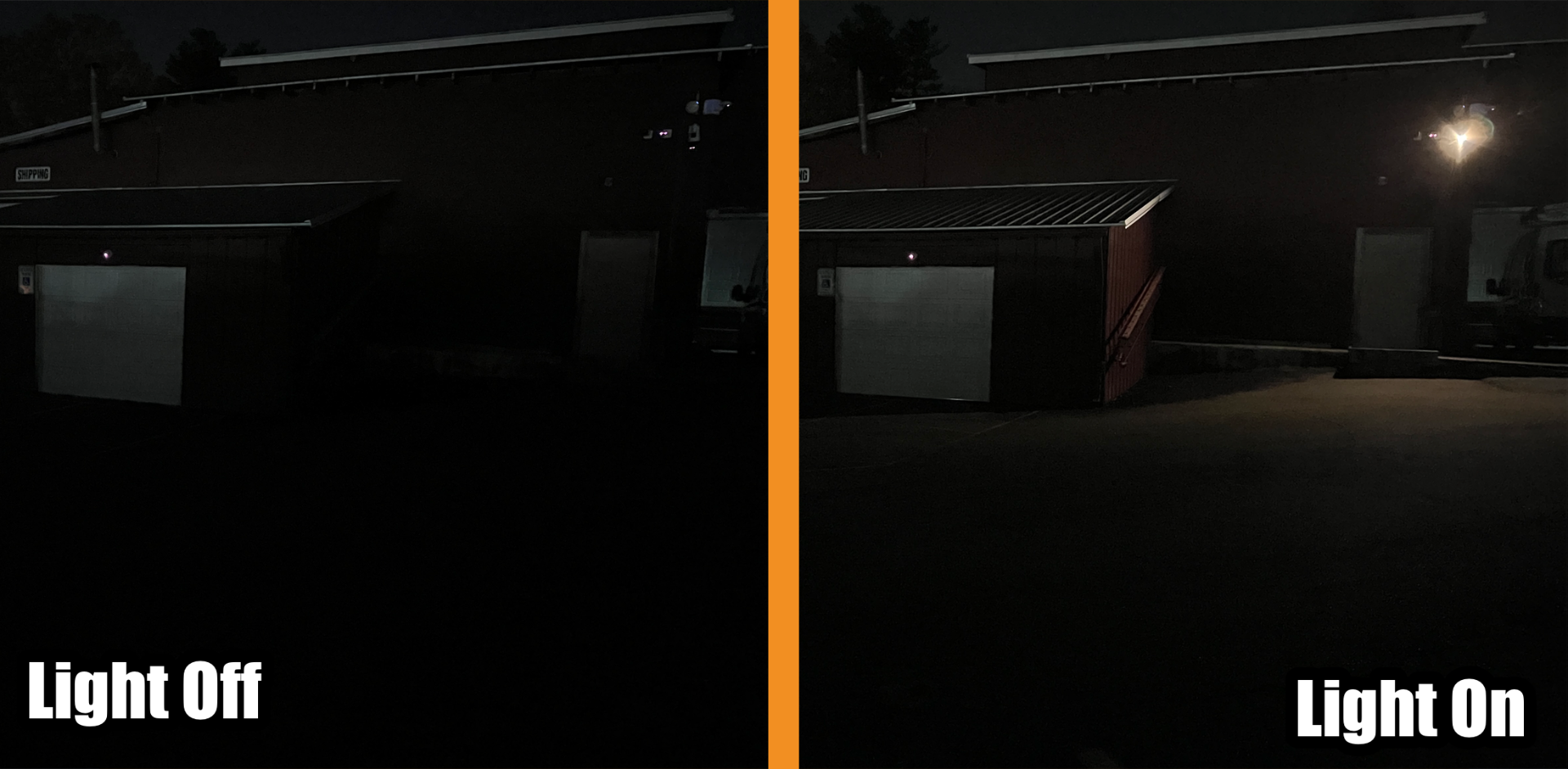

Dual Lighting

This dual lens camera has 100FT white light on the fixed lens and 325FT long Infrared range on the PTZ

This setup allows you to get full color at night on the fixed lens camera. This is very useful to get color details that aren't available through usual infrared night vision.

White light is on full time during night mode.

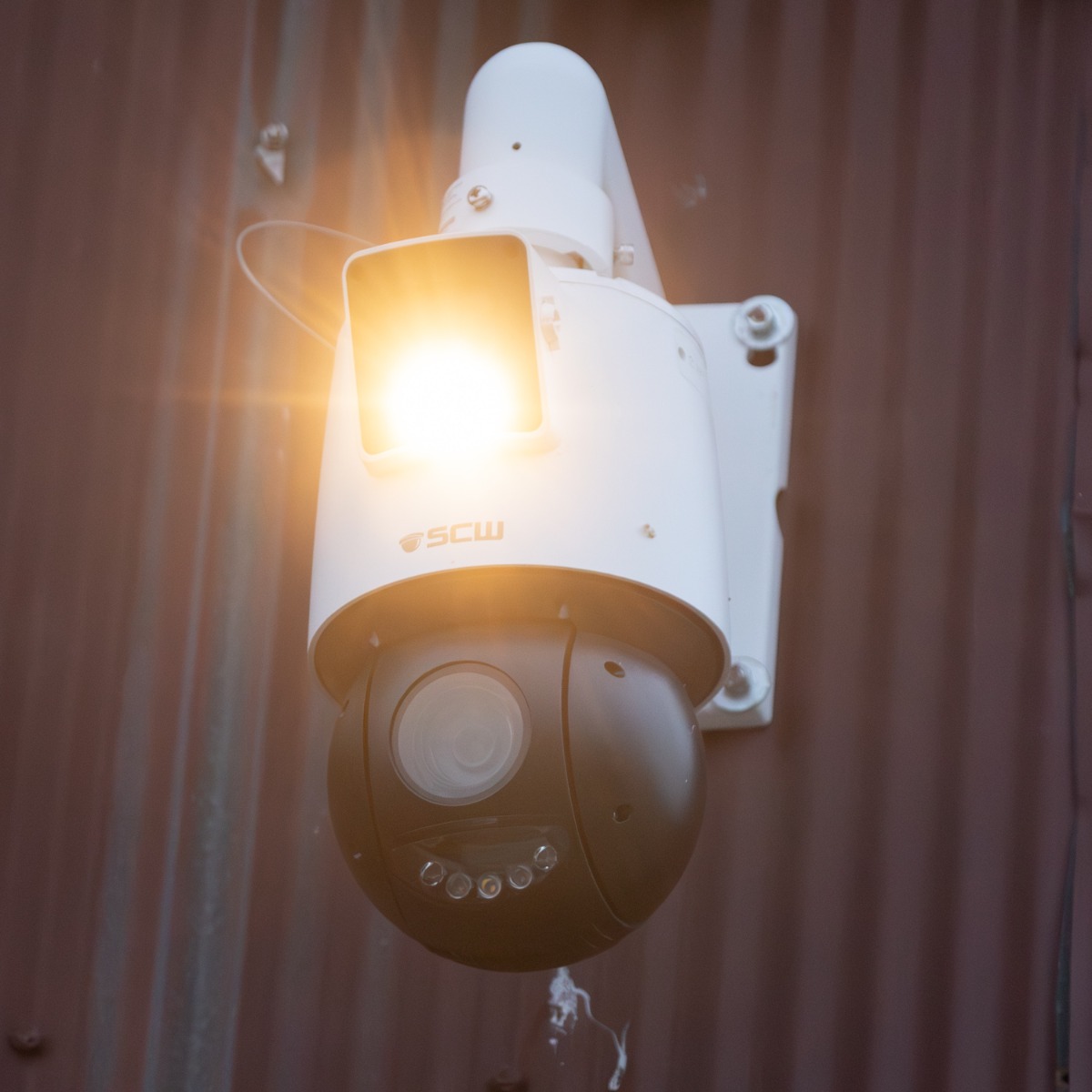

Active Deterrence

This camera has a flashing white light & speaker

Active deterrence is designed to help deter and prevent crime rather than just simply record.

On the Watchkeeper Dual Vision, active deterrence is triggered by line crossing or intrusion detection. The PTZ camera has a small white light which will flash when triggered. The speaker will sound out a pre-recorded warning message or you can choose to upload your own within the camera UI.

See the reaction here

Pan, Tilt and Zoom Controls

This camera can Pan left to right, Tilt up and Down, and Zoom in and Out. You can control it with an of our software interfaces: our PC/Mac Software, Webview, or by using the NVR itself. A physical joystick is not required.

You can pan 360 degrees in an endless manner (you can keep turning left or right forever, without the cable getting tangled or caught).

You can tilt between –15° ~ +90°.

pan tilt zoom pans back and forth on patrol

Presets, Patrols and Patterns

This PTZ can save and perform Presets, Patrols, and Patterns.

Presets are preset positions of the PTZ. For example, you could save the driveway that you have to drive through to enter your property as a preset. Upon telling the camera to view that preset, your PTZ will move to look at that area and then zoom in to the level defined by your preset. You can define 255 presets.

Patrols are a series of presets with a defined amount of time spent at each. Unlike Patterns, where the movement is part of the process, patrols are used to quickly move from point A to point B. A patrol is often used to check important entry points of buildings repeatedly - look at the warehouse bay, then the front door, then the loading dock, etc.

Patterns are recorded movements you can replay, and are like macros that can be performed at any time. For example, you could have a Pattern that involves zooming in rapidly to a preset level of zoom and then zooming back out again that you use to ID faces at distance or zoom in on licence plates. Another popular macro style is to create one that moves the PTZ at a steady speed along a predetermined route; patterns like this can be very valuable for following a product on an assembly line or the flow of traffic. Patterns can also be used to slowly pan across a field or other action where the points of interest are not known in advance.

A total of 16 Patrols and Patterns can be stored.

Patterns and Patrols can be performed automatically.

Bitrate - 4MP

At 4MP and 30 FPS, while recording at H.265, this camera should use 4Mbps of the NVR's bitrate budget. (With H.264, it should use 8Mbps).

Did you know: The processor in an NVR has both an incoming and outgoing bitrate. Incoming is for recording video and outgoing is for watching it remotely. All of our NVRs have at least 5Mbps per channel in incoming bitrate, and many models can have extra bitrate. Your NVR's spare incoming bitrate is what determines if it can record channels at higher-than-1080P resolution, use specialty panoramic cameras, or many other things (see individual NVR models).

Admiral Line Camera Features:

Plug & Play with Admiral & Imperial NVRs

This camera will plug and play with our Admiral and Imperial line of NVRs.

Please note that our camera models with model numbers in the 26xxx format record in the new, more efficient H.265 compression codex and are intended to work with our Imperial and Admiral NVRs.

line crossing event and other recording modes

Event Recording Mode through Video Content Analysis (VCA)

This camera features AI enhanced Intrusion Detection and Line Crossing. These VCA options can be set to filter by people or vehicles using the onboard AI enhanced chipset.

Entering an area

Lingering in an area

Crossing a Line

Covering, damaging, or moving the camera lens

In addition you can search your video footage for these events

*Each feature must be enabled and set up before it can be searched. Not all features can run at once.

Get Alerted when there's Motion

With this camera and an SCW Admiral or Imperial NVR, you can send Snapshot Email Alerts.

You can set up your recorder to email a series of pictures to you when motion is detected by one of your SCW cameras (or if one of our other VCA events is observed). You can choose specific dates and times for these alerts to be active and other times for these alerts to be ignored. Some Snapshot email options are based upon your current recording mode.

Motion Detection, Continuous, and Event Recording Modes

You can record your SCW cameras continuously, via motion, or even via VCA (video content analysis) events like intrusion detection.

You can create individual schedules for each camera, including hours for motion recording mode, hours for continuous recording mode, hours for event recording mode, or even hours when that camera is off completely.

Customizable Motion Detection Recording

With this camera and an SCW Admiral or Imperial NVR, you have video analytics-based motion detection.

Motion detection can also be used to send you email alerts when motion is detected or to record when recording on motion events. You can modify the sensitivity level so that more or less movement is required for the motion detection to trigger. You can create inclusion areas (places where you care if there is motion) and define the rest as exclusion areas (places where you don't care if there is motion). So, for example, you could create a motion based alert to notify you if someone was in your yard, but ignore them if they were on the sidewalk or in the street.

No Recording Delay; See What Happened before Motion was Detected

Many consumer-grade cameras use PIR sensors to trigger a camera to turn on when something gets close enough to the sensor. This is a bad design as there's a slight delay (0.5-3 seconds) that can cause the camera to not record what happened. Our cameras not only don't have a recording delay but allow you to record up to 30 seconds before the motion.

Don't miss out on important motion events: go back in time, before the event, to understand why it happened.

1 Click Firmware Update

Tired of chasing down firmware from the manufacturer, downloading the firmware, uploading the firmware to the device, and then restarting the device? Don't bother! This device checks for firmware and then downloads and installs it, itself, with one click.

3-Year Warranty

This camera has an industry leading 3-year warranty. This camera can also be upgraded to a 5-year warranty. The SCW team stands behind our products 100%!

Weatherproof Housing

This camera has a Weatherproof Housing.

It has been rated at IP67 which means that International Electrotechnical Commission’s (IEC) international standard 60529 has rated this camera housing as having full protection from dust and safe from water damage up to powerful jets of water and immersion up to 1 meter up to 30 minutes.

This camera can be safely used outdoors.

Attention: The IP67 rating covers the camera's housing not the cable. Don't ever submerge cables. Please follow our RJ45 Waterproofing Guide for weatherizing your cable connections.

Commercial-Grade Aluminum Molding

This camera is commercial-grade and is made of cast aluminum and ceramic molding, instead of the typical plastic molding common in the industry.

This product has passed vibration tests, can withstand an electrical surge up to 6,000 volts, and the casing will prevent intrusion of both dust and water into the internal component space. The screws and mounting hardware are made of stainless steel that has passed SUS410 salt spray anti-corrosion testing. We use automotive-grade LEDs and anti-reflection glass (which means better infrared results). In short, this camera is going to hold up over time.

Anti-Reflective Glass

This camera has Anti-Reflective Glass.

Anti-Reflective Glass allows better light transmission vs standard glass. Standard glass cameras often come with a foam ring around the lens to prevent infrared light from bouncing back off the glass and entering the lens. This bounce-back can cause extreme differences in infrared lighting, which makes some items too bright and others too washed out if the ring is loose, ripped, or removed. Anti-Reflective Glass prevents this issue. Also, people have a tendency to accidentally destroy, damage, throw away or lose these foam rings. Anti-Reflective Glass reduces maintenance and user error.

Auto Grade LEDs

This camera has Auto Grade LEDs.

Many IP cameras include low-quality infrared bulbs that fail over time. This camera has Automotive Grade LEDs, and you should expect the same sort of longevity from them as the headlights in your car.

Headlight Compensation

This camera has Headlight Compensation.

Vehicle headlights directly into the camera lens can render many cameras useless. Headlight compensation reduces glare and overexposure due to car headlights.

At SCW, we try not to use the misleading term "License Plate Camera." The term "License plate cameras" is used rather flippantly by the security camera industry, has no real definition as a term, and can sometimes mean simply the presence of HLC; be careful with companies offering a simple solution to a very complex task of capturing license plates.

For more info, please read our knowledge base article on What they don't tell you about License Plate Cameras.

See through Fog with Automatic Defog

This camera has Automatic Defog. Our automatic defog feature allows you to cut through fog, air pollution, and other atmospheric haze.

Adjustable Shutter Speed for Customizable Performance in Low Light

This camera has an Adjustable Shutter Speed in a range between 1/30s to 1/100,000 of a second.

The shutter in a camera controls how long the camera takes to take a picture, but faster doesn't mean better. The faster that a camera shutter opens and closes, the more likely that you will get a clear, blur-free image. The longer that the shutter is open, the more light you let in and the better your image will be in low light. Shutters that are open for an extremely long time allow you to take color pictures at night/twilight without having to switch to infrared mode, but can result in motion blur.

There's no one-size fits all approach to shutter speed, so we give you full control (and free tech support) to set it up the best way possible.

H.265 Recording

This device can record in H.265

H.265, also known as High Efficiency Video Coding (HEVC) or MPEG-H Part 2, is the video compression standard which replaces H.264. HEVC was a collaboration by many parties including Apple, Microsoft, Cisco, Dolby, and the Moving Picture Experts Group. In comparison to H.264, H.265 offers about double the data compression ratio at the same level of video quality, which means both substantially improved video quality at the same bitrate and lower storage requirements.

H.265 saves hard drive space and increases the quality of an image by splitting the screen into a grid and only updating the sections that changed from the previous frame. This focuses nearly all of the processing power of the camera on the areas of the screen with activity. The image quality differences of H.265 is most noticeable in situations such as attempting to watch your camera remotely if your internet upload speed is slow.

You can also record in H.264 if you need backwards compatibility.

ONVIF Conformant

This device is ONVIF Conformant.ONVIF is an open industry standard encoding language for the interface of IP-based physical security products.

POE (Power over Ethernet)

This camera can be powered via an ethernet cable.

POE allows a Cat5 cable to both carry data and power, making it so that you only have to run one cable. You will need either a POE injector, a POE switch or one of our NVRs with built-in SCWEasyConnect POE to power a camera via ethernet.

**There is an optional wall plug adapter on most of our camera models. This wall plug adapter is only used by clients who cannot run POE cables.

UL Listed and FCC Certified

This product is UL Listed and FCC certified

UL is a safety consulting and certification company headquartered in Northbrook, Illinois, and provides safety-related certification, validation, testing, inspection, and auditing of SCW products.

The Federal Communications Commission has certified that the electromagnetic interference from the device is under limits approved by the FCC.

American-Based Technical Support after the sale. For FREE. Forever.

Real review from Larry, who had this to say:

The most important part of a purchase like this is the support for technical assistance when there is a question or when there is a problem, and they always exceed expectations!

All of our equipment comes with Free Technical Support that is US based (Our Warehouse and Staff are located in Asheville, NC). We're happy to help you via chat, email, screen share / remote support sessions, and phones. Our number is 866-414-2553 and we're open from 9-7 M-F (EST).

Specs

The Watchkeeper Dual Vision 4.0 - 26ZV4M-DV - 25x PTZ with a built in 95° Fixed Lens Camera

Pan and Tilt Controls	26ZV4M-DV
Pan Range	360° (endless)
Pan Speed	0.1°/s ~ 80°/s; Preset speed: 80°/s
Tilt Range	–15° ~ +90° (auto reverse)
Tilt Speed	0.1° ~ 80°/s
Max Presets	1024
Home Position	Supported
Patrol Types	Preset Patrols, Pattern Patrols
Patrol Stay Time	15 seconds minimum to 30 minutes maximum
Max Patrols	Up to 16 patrols, up to 64 presets per patrol Note: The total number of patrols and patterns is 16.
Max Patterns	Up to 16 patterns, with the total recording time less 15 minutes per pattern. Note: The total number of patrols and patterns is 16.
Image Specifications	26ZV4M-DV
Image Sensor	1/2.8", 4 megapixel, progressive scan, CMOS
Processor Manufacturer	NDAA Compliant M-Star SoC
VCA / Smart Features	Face Detection, People counting, AI Enhanced Line Crossing, Intrusion Detection, Enter and Leave Area, Tampering, Audio Detection (requires external mic, not included).
Min. Illumination	PTZ: Color video until 0.003 lux @F1.5 0 lux with IR on Fixed: Color video until 0.0005 lux @F1.0 0 lux with white light on
Iris	PTZ Auto: F1.5 ~ F3.8
Shutter	Auto/Manual; shutter time: 1/6 s ~ 1/100000s s
Lens	PTZ: 4.8 ~ 120mm (25x optical zoom) 55.46° - 3.09° of horizontal coverage (32.94°-1.73° vertical) Fixed Camera: 4mm Fixed 95° of horizontal coverage (51.5 vertical)
Day & Night	IR-cut filter with auto switch (ICR)
Digital Noise Reduction	2D/3D DNR
Wide Dynamic Range	True 120dB WDR
Digital Defog	Yes
Max. Image Resolution	2688x1520; 4 Megapixel
Frame Rate	4MP (26881520) 30FPS; 1080P (19201080) 30FPS fps; 720P (1280720) 30FPS fps; D1 (720576) 30 fps
Image Settings	Saturation, brightness, contrast, sharpness, headlight compensation, backlight compensation, region of interest, evaluative metering.
Backlight Compensation (BLC)	Supported
Networking Specifications	26ZV4M
Video Compression	Ultra H.265, H.265, H.264, MJPEG
Camera Streams	Main Stream: up to 4MP (2688*1520) 30FPS fps Sub Stream: up to 1080P (1920×1080): Max. 30FPS fps; Mobile Data-Sensitive Stream: up to D1 (720×576): Max. 30 fps
Bit Rate	32 Kbps ~ 16Mbps
Edge Storage	Micro SD, up to 256 GB (card not included)
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Interoperability	ONVIF(Profile S, Profile G, Profile T)
Inputs / Outputs	26ZV
Communication Interface	1 RJ45 10M/100M Base-TX Ethernet
Alarm Inputs/Outputs	2 input; 1 output
Alarm Triggers	Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception
Audio Inputs/Outputs	1 Input / 1 Output
Audio Compression and Features	Two way Audio Supported; G.711 Audio Compression
General Specifications	26ZV4M-DV
Operating Conditions	-40°F ~ 149°F, Humidity ≤ 95% RH(non-condensing)
Rain/Snow/Dust Prevention	Structure and window designed to battle bad weather
Power Supply	DC12V(±25%) 3A - PoE+ (802.3at) injector not required or included. Confirm your PoE switch or NVR can provide adequate power, if not a PoE+ injector may be required.
Power Consumption	Power consumption: 24W
Surge Protection	6KV
Weather Proof Rating	IP66

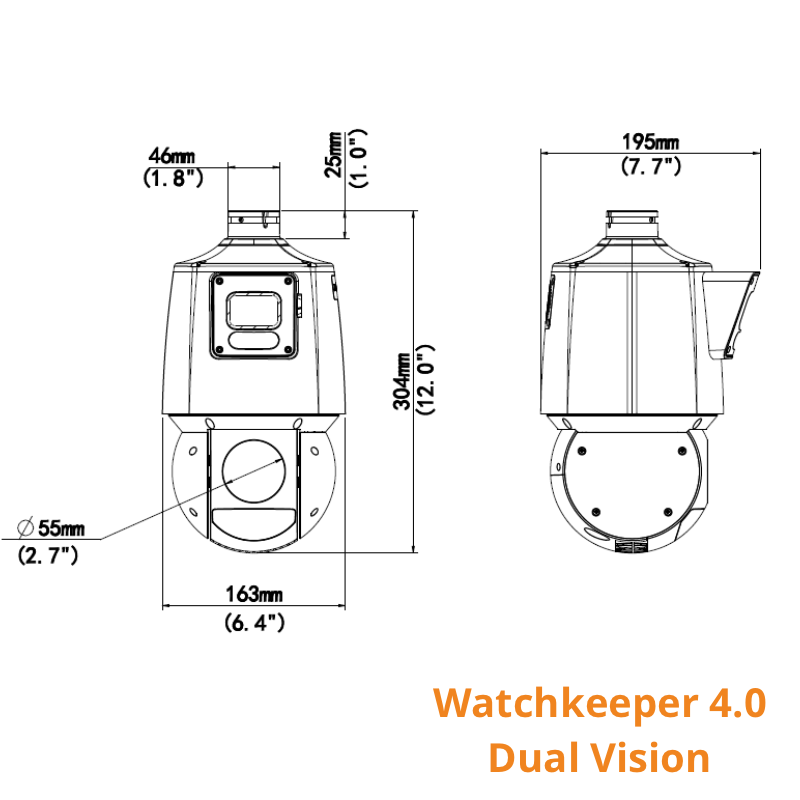

Dimensions	Ø6.4” x 12.0”

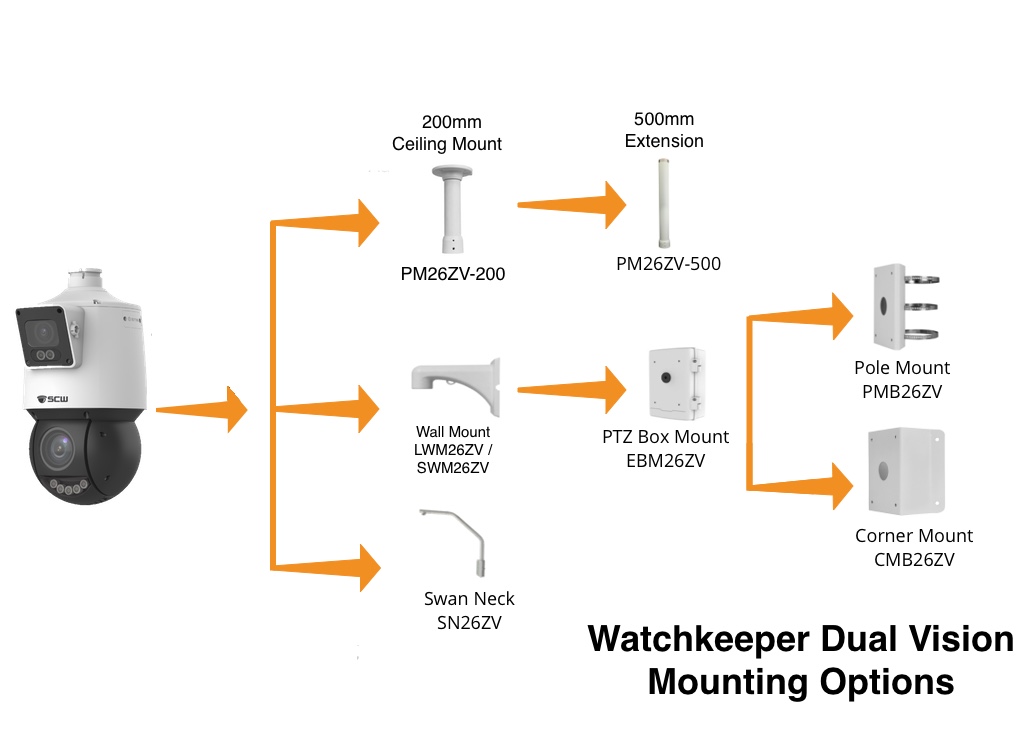

Electrical Box Mount	EBM26ZV (Requires arm mount)
Night Vision Range	PTZ Infrared up to 325FT - Fixed lens white light up to 100FT
Weight	5 Lbs

Downloads

Most popular downloads related to The Watchkeeper 4.0 Dual Vision- 26ZV4M-DV

Spec Sheet for The Watchkeeper 4.0 Dual Vision

A one page PDF listing this product's most important specs.

BenchTesting Guide

It is very, very important that you always bench test IP cameras before installing them. This will help you determine if you accidentally cut an ethernet cable during installation.
