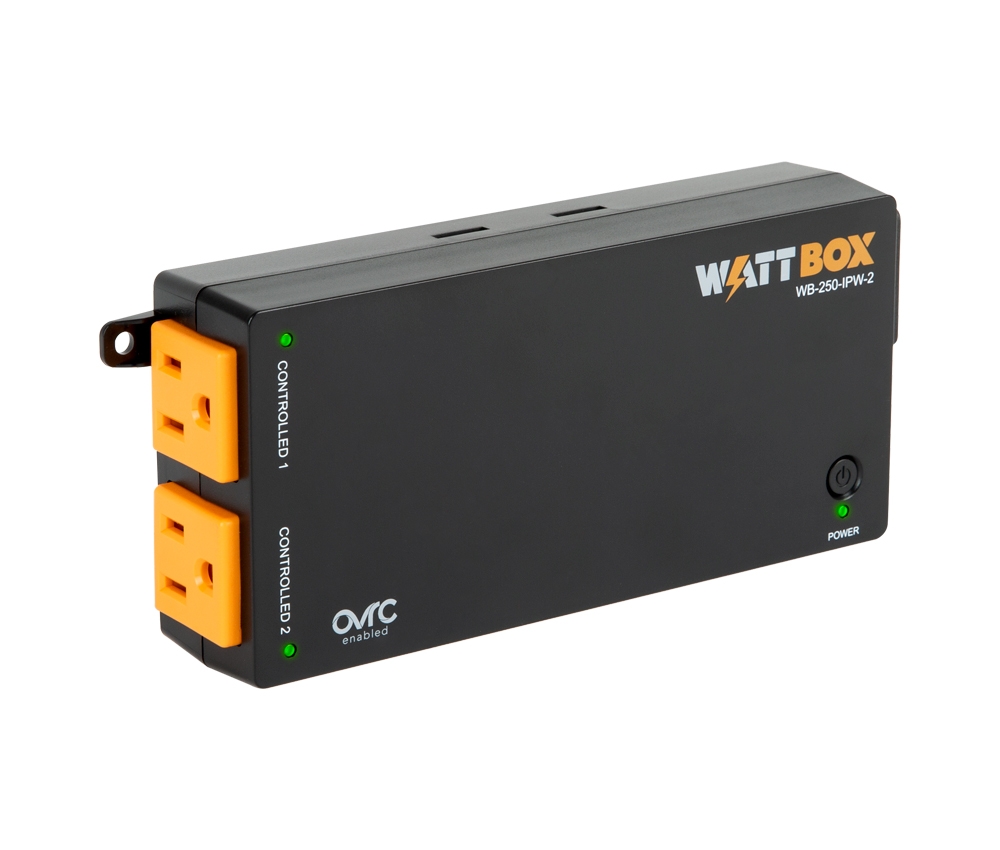

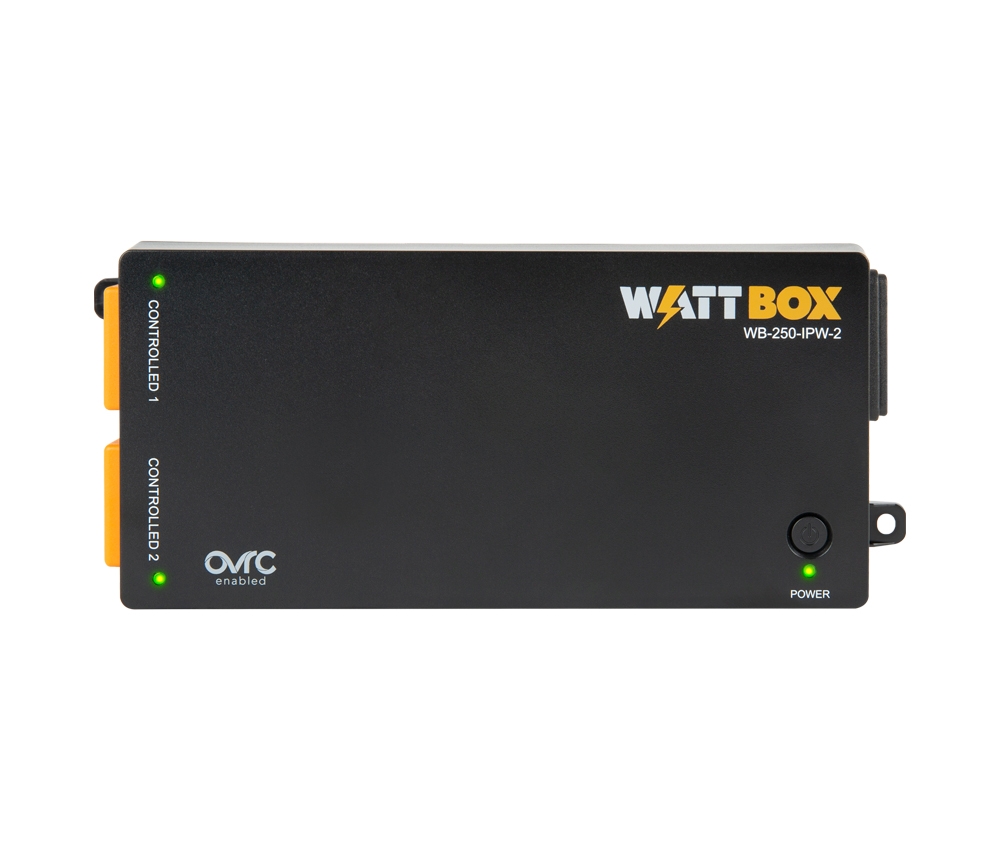

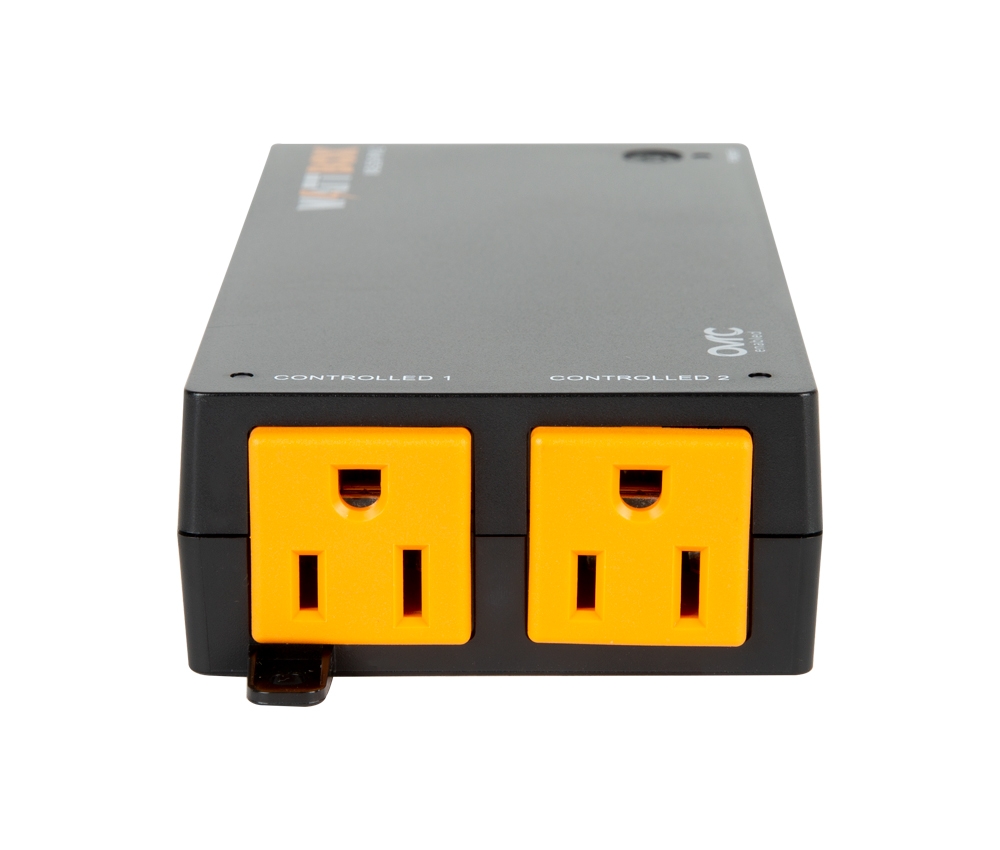

WattBox 250-Series Wi-Fi Surge Protector

Power Consumption: 2 Watt, active wired LAN connection

Outlet Type: NEMA 5-15R

Number of Outlets: 2

LED Indicators: Outlet On/Off, Device on/off AC, RJ-45 link/activity

Line Voltage: 120V, 50/60Hz (Minimum 88V, Maximum 132V)

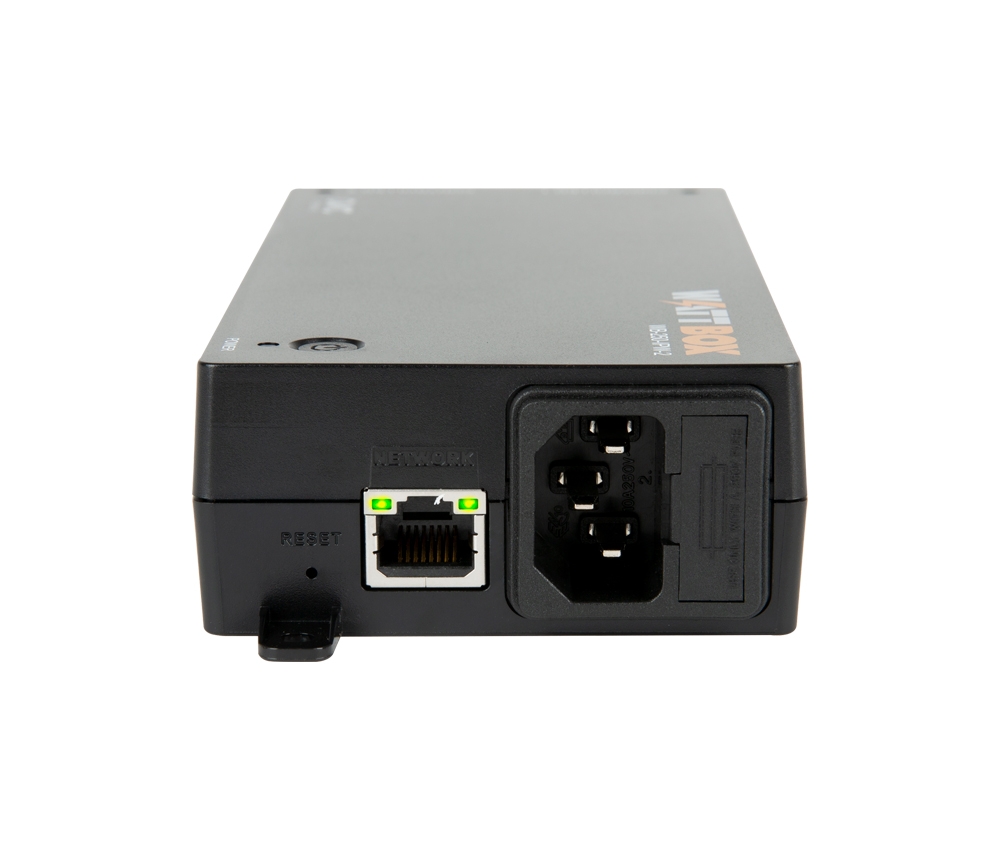

Inlet: AC Input Connection: IEC C-14

Voltage Protection Rating: L-N 600V, L-G 600V, N-G 600V

UL Power Rating: 1440W

Voltage Protection Rating: 500V

Joule Rating: : 1080J

Peak Impulse Current: 45,000A

Fuse Type: Field Replaceable 5X20mm 15A Fast-Blow Fuse 250v 15A; 217 Series Ceramic

Power Metering: Individual Outlets: No

Device: No

Surge Protection: Yes, MOV Type with AC Disconnect Thermal Fuse

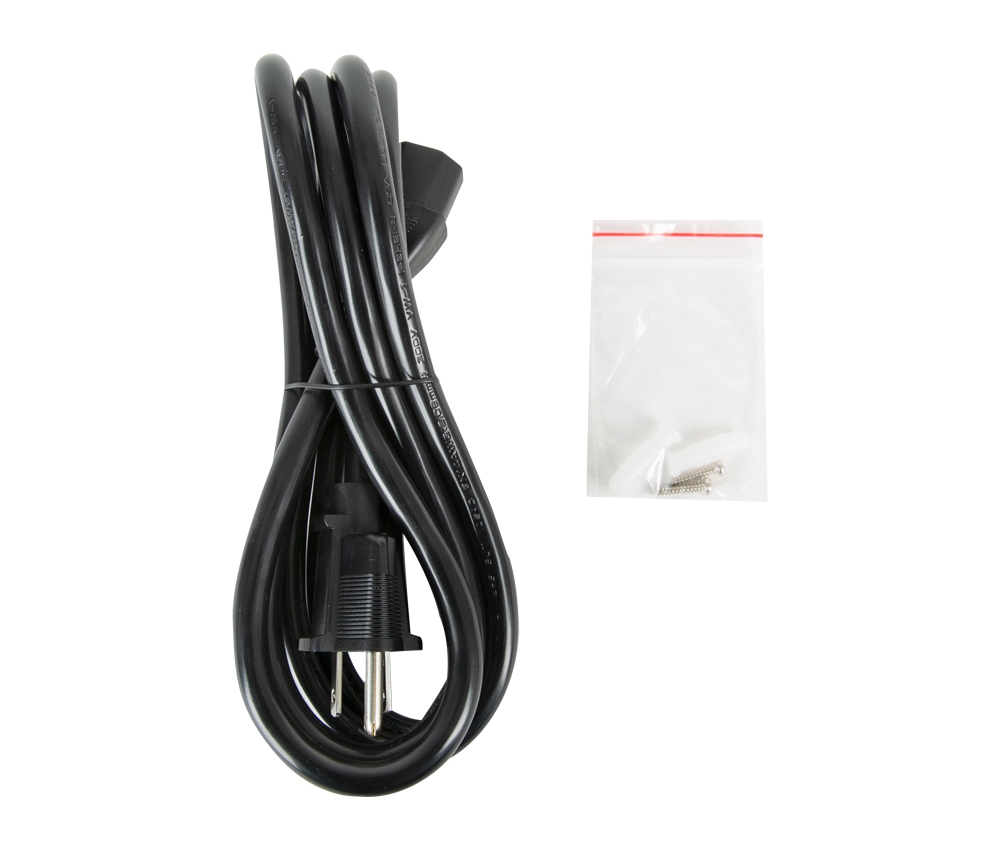

Power Cord Length: 6 Ft.

Network / Ethernet Wired: RJ-45, 10/100 Ethernet

Network / Ethernet Wireless: Yes, 2.4GHz

IP Controlled Banks: 2 Individually Controlled

IP API: Yes, IP/Telnet (Full config & control)

Relay Output: Electromagnetic

Self-healing Auto Reboot: Yes, configured in OvrC/API

Custom Scheduling: Yes, configured in OvrC/API

Remote/Cloud Management: Yes (Website & Client-/Integrator Mobile Apps)

Remote Firmware Updates: Yes, via OvrC, API

Web UI: Integrated Web UI: Yes, Limited to basic network config, outlet reset/on/off and access control

Operating Temperature: 32 - 104°F (0-40°C)

Construction: Plastic, Matte black finish

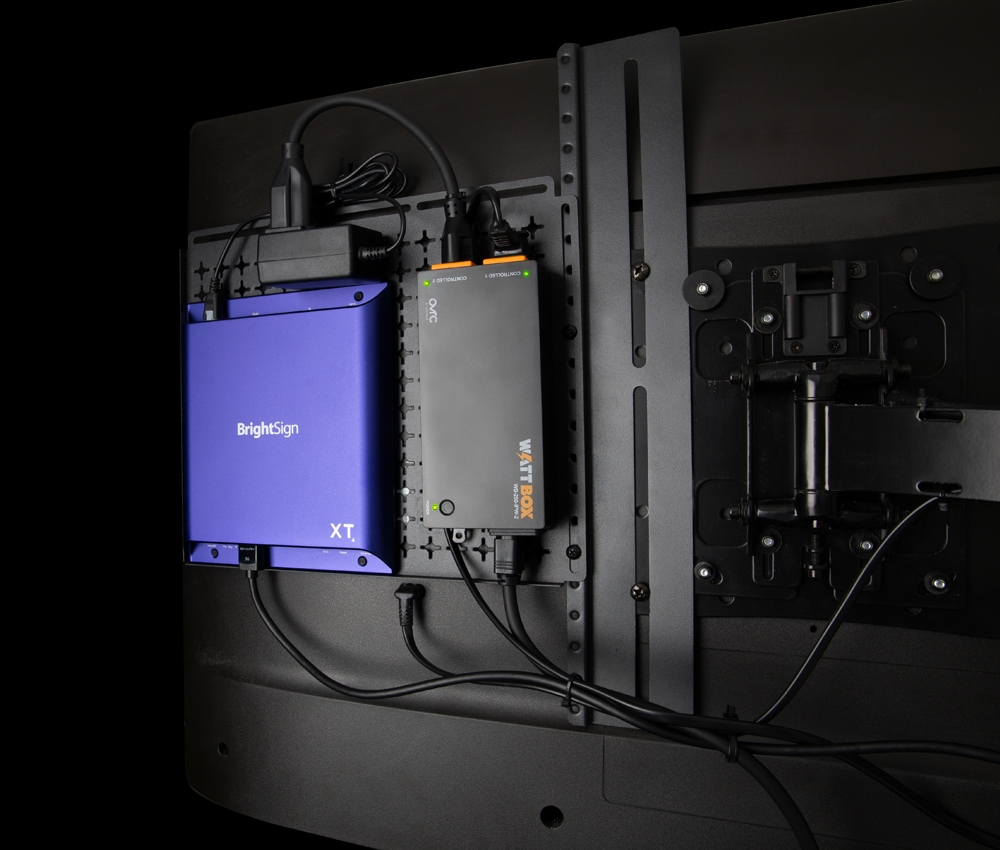

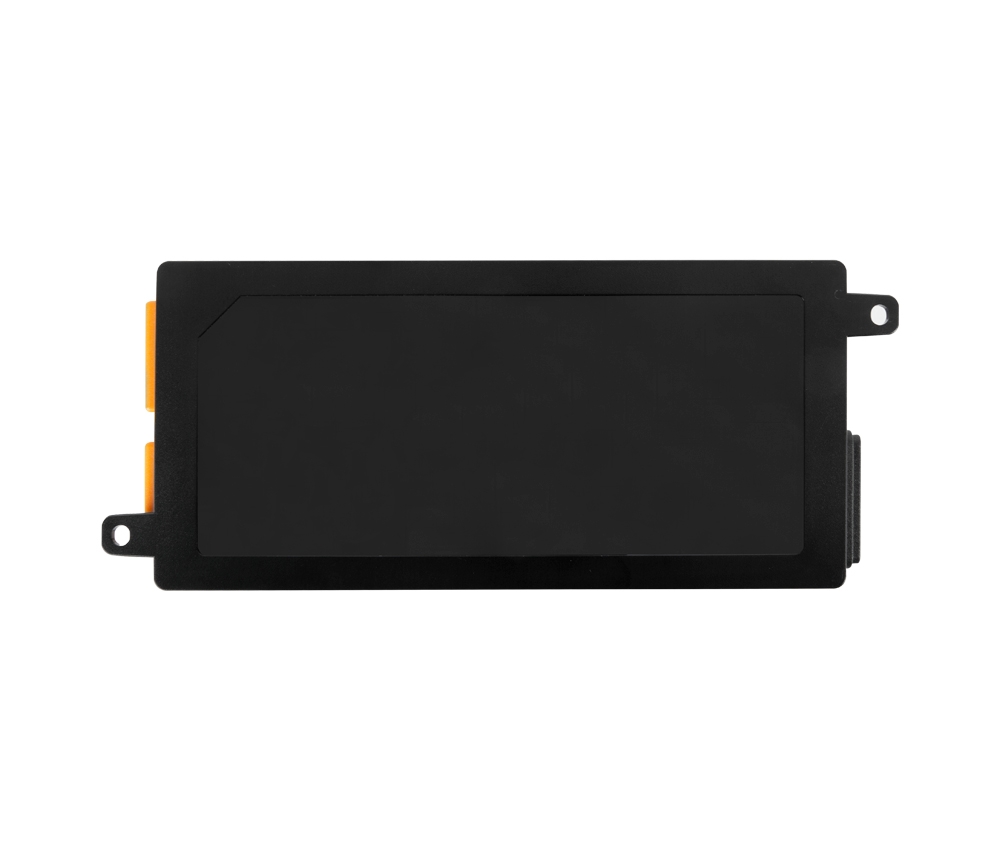

Mounting: Integrated eyelets, surface/in-wall box mounting (available in Aug 2019)

Dimensions (W x H x D): 3.00 in. x 7.38 in. x 1.38 in.

Box Dimensions: 8.2 in. x 2.5 in. x 5.6 in.

Weight: 0.7 lbs (device only, no cord)

Package Weight: 1.56 lbs

Certifications: UL 62368-1, UL 1449, FCC 47 CFR Part 15 Subpart B
