How to Consistently Capture License Plate Data

Any license plate system is only as good as the image it captures, and that comes down to careful planning, installation and execution.

How to Get Good Results when Trying to Capture License Plates

HD resolution

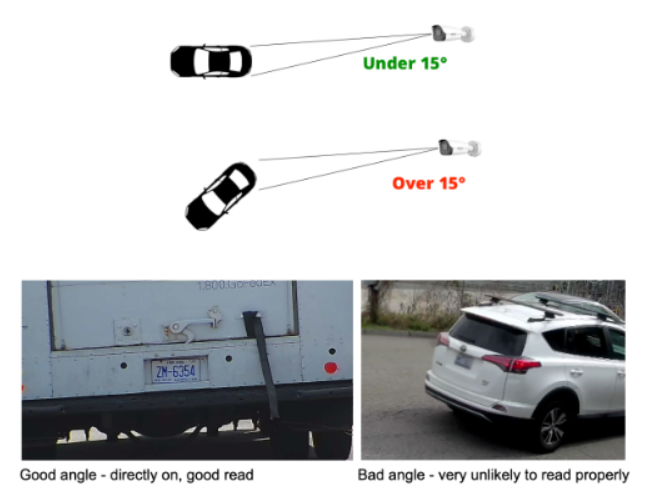

1. Angle

An ALPR camera's license plate performance, such as our Specialist model, is directly tied to the height, angle, and distance, where it is installed.

You want to have no more than a 15° offset, both horizontally and vertically. Plates should be as direct/inline to the camera as possible. If the angle is incorrect, it will result in missed captures or incorrect plate readings.

Low Resolution

2. Vibration

The Specialist, and many other ANPR cameras, have very powerful zoom lenses, and when zooming in on any camera, movements such as vibrations, wind, etc., will be much more apparent than with a standard wide/normal lens camera.

Take proper precautions to install this camera on a stable surface that doesn’t transfer vibrations. If you are mounting this camera on a pole, be sure the pole is sufficiently stable and does not introduce vibrations.

Zoom Level

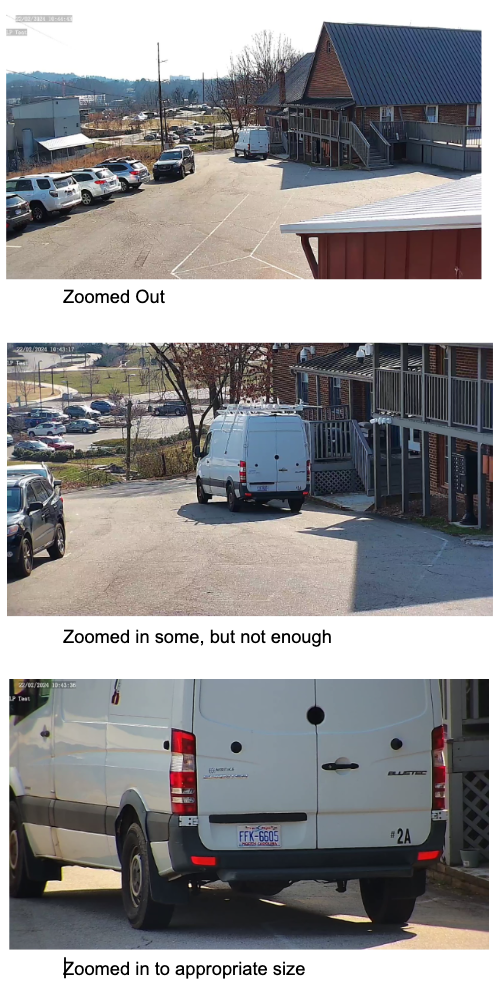

3. Zoom Level

Instead of using just one set of settings for saturation, brightness, contrast, and sharpness levels, Wide Dynamic Range splits each frame/image into many sections and determines the correct exposure to create a consistent and balanced image. WDR is very useful when recording in situations where different areas of the same scene are going to have varied lighting levels. Most situations where you want to record license plates are going to have these light variations because of headlights and street lamps.

adjustable shutter speed

4. Speed of Vehicle

The Specialist camera is rated for 15MPH maximum speed. Vehicles over 15 MPH are unlikely to capture correctly.

The Specialist is designed primarily for entry/exit point applications. SCW ideally suggests aiming at stop signs or slow down points like speed bumps or gates.

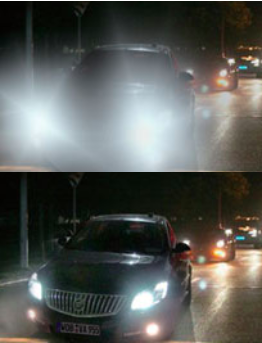

Headlight Compensation

5. Back Plates vs Front Plates

SCW strongly recommends planning your license plate solution to capture the back of vehicles / back plates rather than front plates.

- Many states do not require front plates. Even if your state requires them, out of state visitors may not have them.
- Back plates are lit - and significantly easier to get correctly at night
- Front plates are not lit - and have bright headlights
- This will require careful placement considerations (height, angle, elevation)
- As well as significant image setting tweaks for various vehicle heights
- These issues are especially important at night.
- Additional lighting in the area may be required for front plates

Important considerations for LPR cameras

All LPR cameras and systems accuracy is determined by the quality of the image fed to the system. Good, clear shots will have a greater rate of accuracy than poor images. There are several factors on any license plate camera that may impact the performance of license plate recognition and/or the OCR capability. OCR (optical character recognition) refers to the ability of a system to read digits and turn them into text.

- Plate “covers” that darken or obscure the plate
- Obscured plates - like tow hitches, trailers, racks or anything else blocking the plate
- Weather such as heavy rain, fog, and snow can impact the effectiveness - especially for those at distance
- Angle and LPR area are set up improperly - leading to partial captures
- Speed is too fast - Stay under 15MPH.
- The vehicle is too far - we recommend about 150FT maximum for accurate OCR
- Vanity / Special Plates - These may not capture the full OCR for example, the “FF” on this plate

The Specialist LPR

The Specialist

SCW's Dedicated License Plate Recognition Camera

The Specialist is a long range, white light, bullet camera with a LPR software built into it. This camera, when paired with one of our supported NVRs can detect license plates, take snapshots of the plate, and transcribe the plates using optical character recognition. This allows you to easily see plates, search for plate numbers, create lists, and more!
