$175.00
Outdoor Motion Sensor for SCW Shield - 74OMS
In stock
Usually ships the same business day if ordered before 2PM EST.
SKU
74OMS
Detects
Motion Outdoors
6 Foot Range at 190 degree in either a 3 or 7 foot radius.
Where should I place motion sensors?
When would I use motion sensors, glass break sensors, vs. windows open sensors?
Actions
Primarily used for triggering home automation events.
Convient App Alerts - without triggering Pro Monitoring!
Example Z-Wave Automation: turning on the kitchen lights when motion is detected on your porch.
Battery
Averages 2-5 years, depending on activity
Images
Need Installation?
No Problem
Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.
Get a Custom Quote for Equipment or Installation
Detects
Motion Outdoors
6 Foot Range at 190 degree in either a 3 or 7 foot radius.
Where should I place motion sensors?
When would I use motion sensors, glass break sensors, vs. windows open sensors?
Actions
Primarily used for triggering home automation events.
Convenient App Alerts - without triggering Pro Monitoring!
Example Z-Wave Automation: turning on the kitchen lights when motion is detected on your porch.
Battery
Averages 2-5 years, depending on activity
3 or 7 foot range
190-degree field of view (95-degrees to each side)
2-5 year battery life
2.5 x 7 x 2 inches

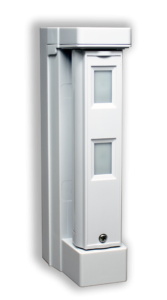

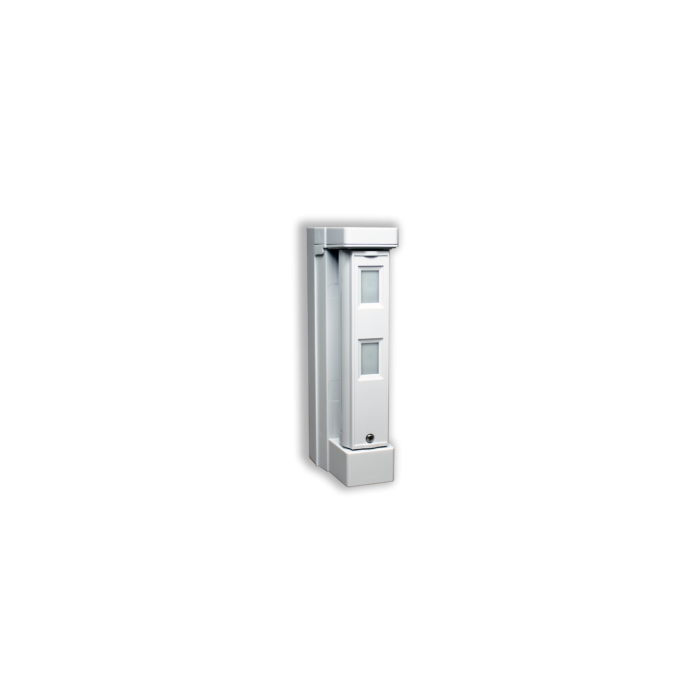

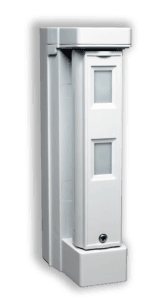

Outdoor Motion Sensor for SCW Shield
Physical Specifications |
|
|
Housing Body Dimensions
|
6.94 x 2.07 x 2.66 inches (17.6 x 5.3 x 6.8 cm)
|
|
Housing Base Dimensions
|
3.25 x 1.40 x 1.05 inches (8.3 x 3.6 x 2.7 cm)
|
|
Weight with Battery
|
7.4 ounces (210 grams)
|
|
Mounting Fastener
|
3m VHB (Very High Bond) tape or screws (both provided)
|
Environmental Specifications |
|
|
Operating Temperature
|
-4 to 140 °F (-20 to 60 °C)
|
|
Maximum Humidity
|
85% non-condensing relative humidity
|
Sensor Specifications |
|
|
Detection Length:
|
Default: 16.5 feet (5m), Optional: 6.5 feet (2m)
|
|
Detection Speed:
|
1 to 5 feet per second (0.3 to 1.5 meters per second)
|
|
Frequency
|
433.92MHz
|
|
Replacement Battery
|
One Panasonic CR123A
|
|
Nominal Battery Life
|
2-5 years
|
|
Battery Voltage
|
3.0 VDC (Nominal), 2.2 VDC (Low)
|
|
Optimal Mounting Height
|
2.5 to 4 feet (0.8 to 1.2 m)
|
|
Transmission Indicators
|
Motion, Cover Tamper, Wall Tamper, Low Battery, Supervision
|
Certifications |
|
|
Certifications
|
RE653: UL639, ULC-S309, ETL, FCC, IC, RCM, RE653-CE: EN 50131-2-2, EN60950-1, EN 300 220, EN 301 489, CE Security Grade 2, CE Environmental Class 2
|
Place in the middle of a wall facing completely outward from the wall. Do not try to install on an angle.
Optimal Mounting height: 2.5 to 4 feet (0.8 to 1.2 m)
