$75.00
Residential Pet-Resistant Indoor Motion Sensor for SCW Shield - 74RIM
In stock
Usually ships the same business day if ordered before 2PM EST.
SKU
74RIM
Detects
Motion in a Residence
44 Foot Range at 90 degrees - 50% better than other brands!
Pet-Resistant (under 85 lbs)
Where should I place motion sensors?
When would I use motion sensors, glass break sensors, vs. windows open sensors?
Actions
Siren, App Alerts, and Pro Monitoring when Armed and in Away Mode.
Because your own movement in the house triggers them, motion sensors do not alert you in Stay and Night modes.
It is more secure and you will have fewer false positives if you use door and window sensors.
Battery
Averages 6-8 years
Images
Need Installation?
No Problem
Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.
Get a Custom Quote for Equipment or Installation
Detects
Motion in a Residence
44 Foot Range at 90 degrees - 50% better than other brands!
Pet-Resistant (under 85 lbs)
Where should I place motion sensors?
When would I use motion sensors, glass break sensors, vs. windows open sensors?
Actions
Siren, App Alerts, and Pro Monitoring when Armed and in Away Mode.
Because your own movement in the house triggers them, motion sensors do not alert you in Stay and Night modes.
It is more secure and you will have fewer false positives if you use door and window sensors.
Battery
Averages 6-8 years
Pet-Resistant: sensor should ignore up to one pet up to 85 lbs or two pets up to 60lbs each.
90-degree field of detection
44-foot range
Averages 6-8 year battery life

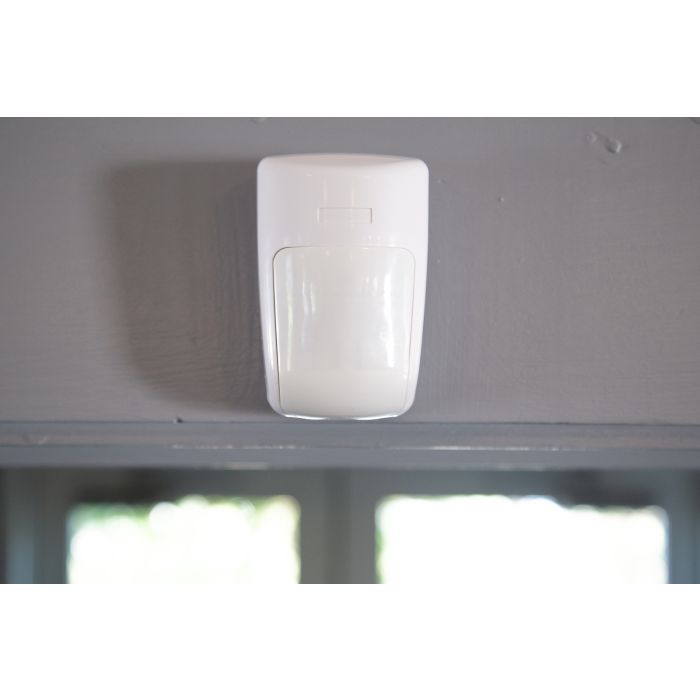

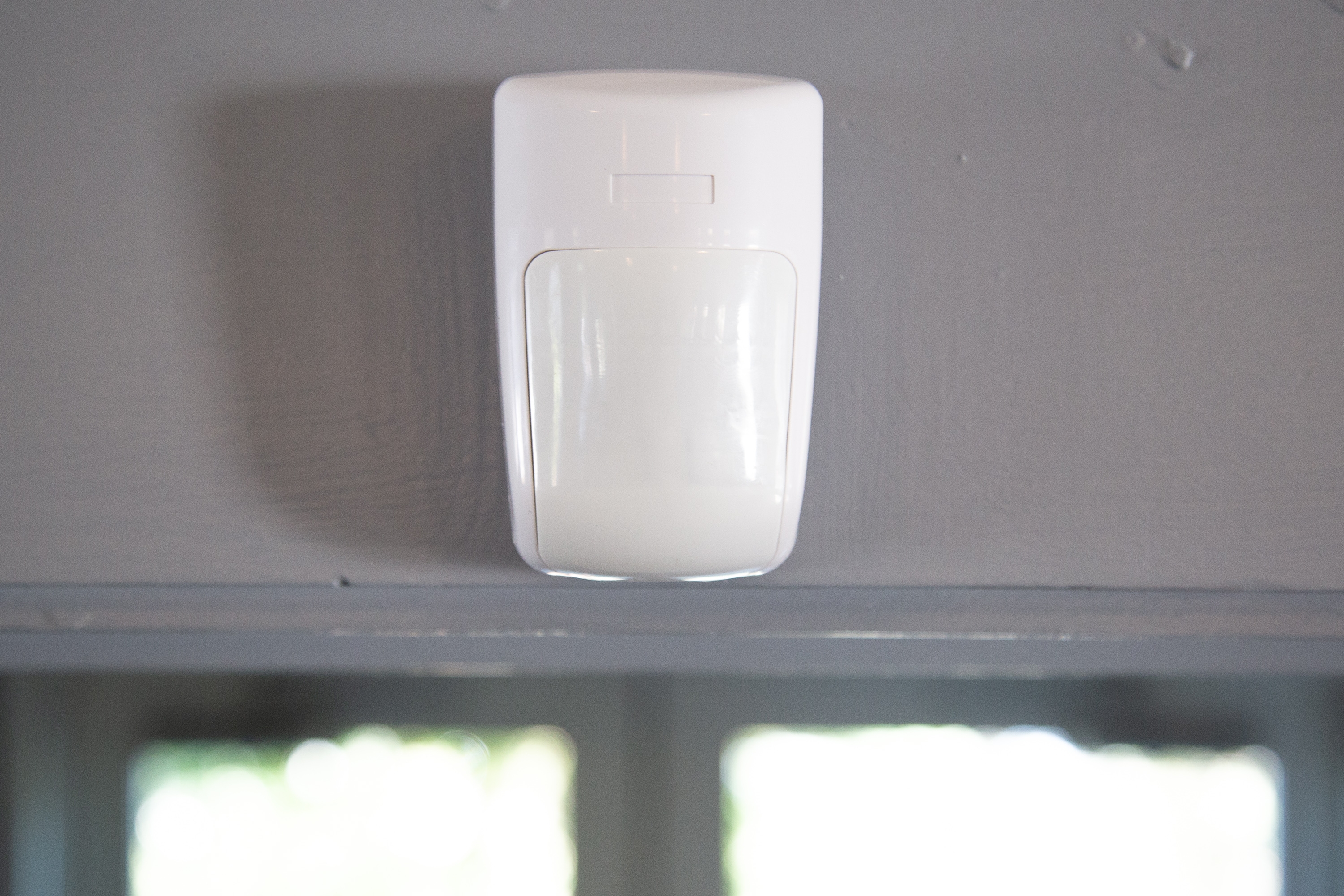

Mountable on flat-wall, 45-degree corner, or with our swivel wall adapter (optional).
3.50 x 2.40 x 1.70 inches
Optimal Mounting Height: 7.5 to 9.5 Feet
Requires the SCW Shield Alarm Hub

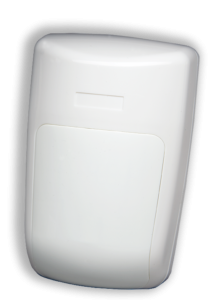

Residential Pet-Resistant Indoor Motion Sensor for SCW Shield Specs
Physical Specifications |
|
|
Housing Dimensions
|
3.50 x 2.40 x 1.70 inches (8.9 x 6.1 x 4.3 cm)
|
|
Weight with Battery
|
3.2 ounces (91 grams)
|
|
Mounting Hardware
|
3m VHB (Very High Bond) tape or screws (both provided)
|
Environmental Specifications |
|
|
Operating Temperature
|
32°F to 120°F (0°C to 49°C)
|
|
Maximum Humidity
|
85% non-condensing relative humidity
|
Sensor Specifications |
|
|
Pet Resistence:
|
Two 60-pound dogs or one 85-pound dog
|
|
Frequency
|
433.92 MHz
|
|
Replacement Battery
|
One Panasonic CR123A
|
|
Nominal Battery Life
|
6-8 years
|
|
Battery Voltage
|
3.0 VDC (Nominal), 2.2 VDC (Low)
|
|
Optimal Height
|
7.5 to 9.5 feet (2.3 to 3.0 m)
|
|
Transmitted Indications
|
Cover Tamper, Low battery, Supervisions
|
Certifications |
|
|
Certifications
|
RE610P: UL639, ULC-S309-03, ETL, FCC, IC RE610P-CE: EN 50131-2-2, EN 60950-1, EN 300 220, EN 301 489, CE Security Grade 1, CE Environmental Class 2, RCM
|
Installation:
Pet resistance is optimized when the motion sensor is mounted at 7.5 to 9.5 feet high and aimed away from house features that could allow pets to be high in the detection field (e.g. stairs, countertops, tall furniture).
Motion sensitivity can be adjusted by the sensitivity jumper in the center of the circuit board.
Jumper Installed (lower sensitivity): Detects person in 3 to 5 steps. Increases pet immunity. With the Jumper NOT Installed (Higher Sensitivity): Detects person in 2 to 4 steps.
Tips
Provide a clear line of sight to the monitored area and remember that glass blocks infrared energy
Aim away from windows and sunlight
Aim away from air conditioners, heaters or vents.
Test Mode
Walk Test Mode is entered by pressing the motion sensor's tamper button. The walk test lasts three minutes.

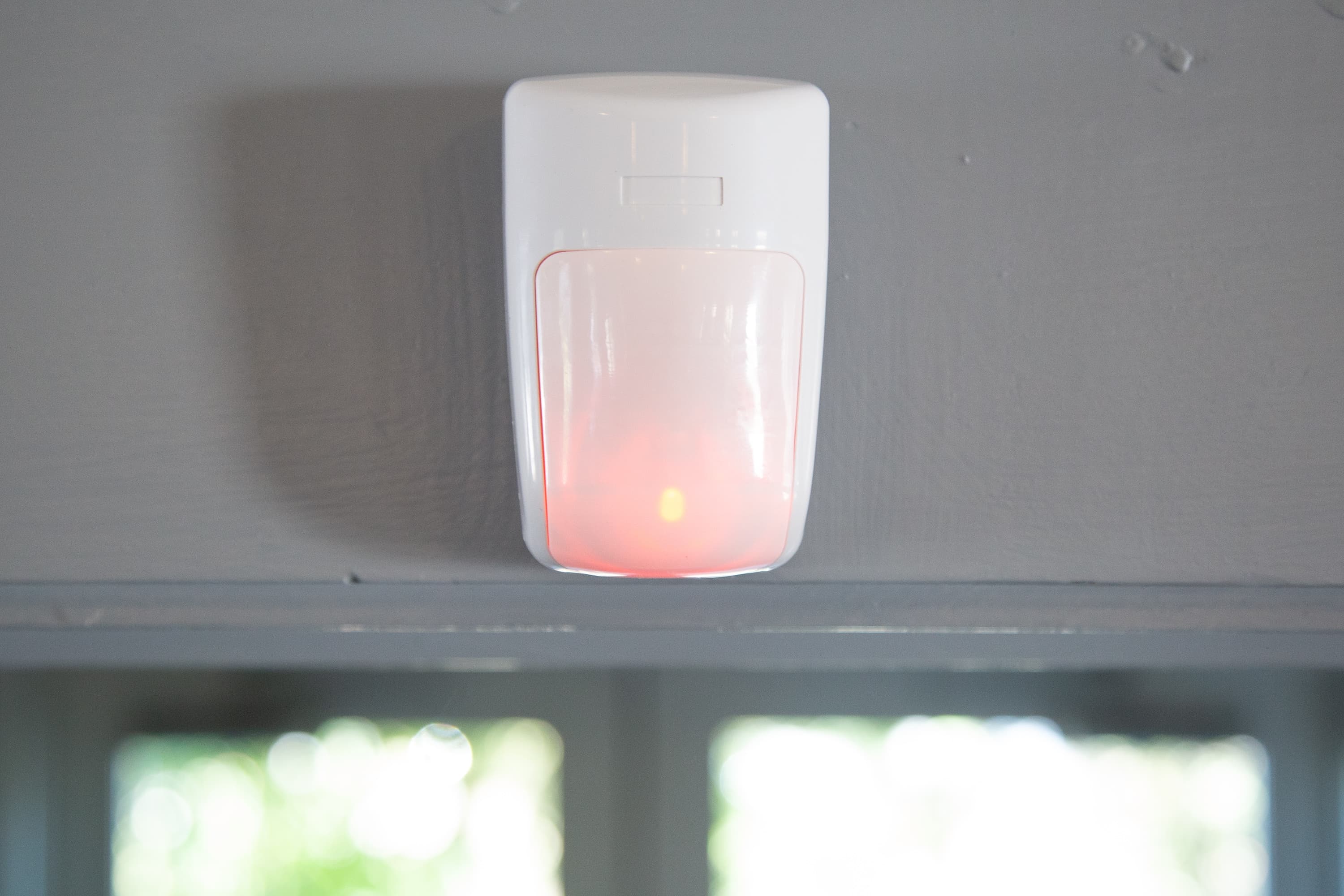

The walk test LED turns on when motion is sensed
When in Test mode, the motion sensor will perform a re-calibration after each activation. Takes about 30 seconds and the sensor will NOT sense motion during the re-calibration.
Wireless transmissions are sent for each detection, so walk test mode can also be used to test the panel.
