$250.00

The Deputy 8.0 v1

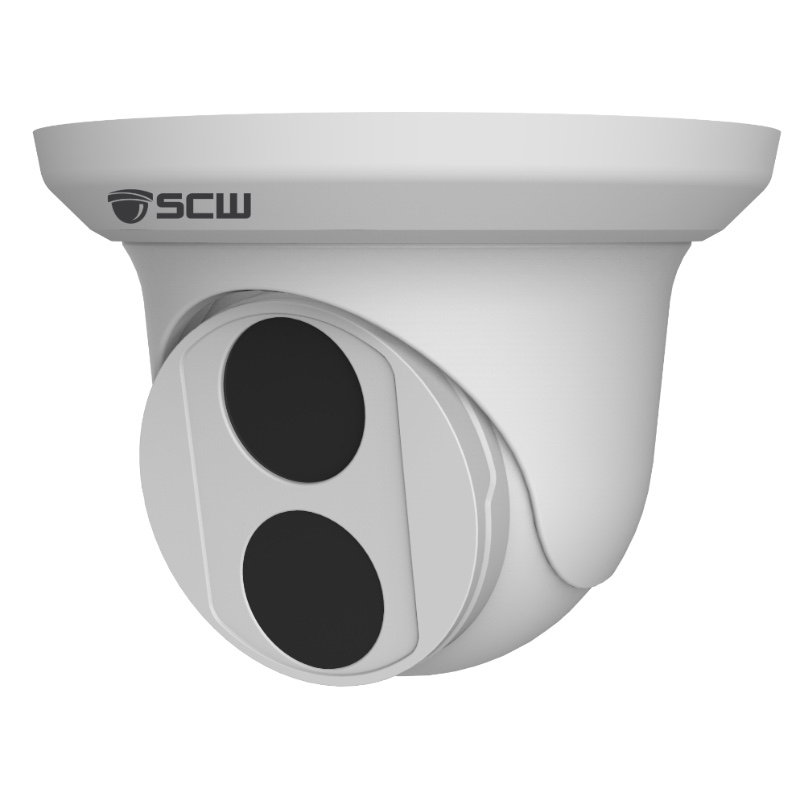

4K (8MP = 4x1080P) Fixed Wide Angle Lens Turret Dome Camera

Backordered

Contact your sales rep for a delivery timeline.

SKU
26DF8

View product options details


Resolution

4K UHD

4K @ 15 FPS; 3840 × 2160

Detect: 150 ft
Recognize: 85 ft
Identify: 45 ft


4MP vs 4K


Weather

weatherproof

IP67
Full protection from dust, rain, snow, dew, frost, and sprinklers.

You can even submerge it for a few minutes.


Temp

temperature rating

Temperature rated from -22°F to 140 °F

Humidity rated between 10 and 95%.


Lens

fixed lens

Fixed: 2.8mm
118° of coverage

Digital Zoom Only

Learn about Digital vs Optical Zoom


Day/Night

night footage

Infrared night vision up to 100 FT

Larger image sensor for low light

Color video possible until 0.001 lux

How to get the best footage at night


Special

special features

Digital Wide Dynamic Range

Seeing in shadows: Understanding WDR

Images
DISCONTINUED - The Deputy 8.0 v1 - 26DF8 - 4K (8MP = 4x1080P)  Fixed Wide Angle Lens Turret Dome CameraDISCONTINUED - The Deputy 8.0 v1 - 26DF8 - 4K (8MP = 4x1080P)  Fixed Wide Angle Lens Turret Dome CameraDISCONTINUED - The Deputy 8.0 v1 - 26DF8 - 4K (8MP = 4x1080P)  Fixed Wide Angle Lens Turret Dome CameraDISCONTINUED - The Deputy 8.0 v1 - 26DF8 - 4K (8MP = 4x1080P)  Fixed Wide Angle Lens Turret Dome CameraDISCONTINUED - The Deputy 8.0 v1 - 26DF8 - 4K (8MP = 4x1080P)  Fixed Wide Angle Lens Turret Dome CameraDISCONTINUED - The Deputy 8.0 v1 - 26DF8 - 4K (8MP = 4x1080P)  Fixed Wide Angle Lens Turret Dome Camera
Videos
Need Installation?

No Problem

Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.

Get a Custom Quote for Equipment or Installation

The Deputy 8.0 has been replaced by the Deputy 8.0 v2 - available here


The Deputy is our second most popular camera model. It is tied with the Warrior in terms of how easy it is to install and position, since neither camera requires you to remove any part of the camera to screw it into the wall/ceiling/soffit. This makes it ideal for outdoor use as you don't have a tendency to trap moisture in the lens, as is common with dome cameras, where you have to remove the outer glass dome to mount them. The 110 or 118 degree lens is best used to cover an entire room at once (by installing it in a corner) or to cover a wide area of a smaller yard, as wider lenses always decrease how far away you can identify a person of license plate. Although you can use this camera inside or out, the most common uses of the Deputy models (the camera comes in 2MP, 4MP, or 4K variants) are to install the camera in the corner of a room or to cover front doors and porches outdoors. Two Deputies are often installed back to back to make a 220-236 degree view, such as in the middle of a wall. (This two camera solution has less of that dizzying "fisheye" look that is common with 180 degree cameras and is also usually cheaper.)

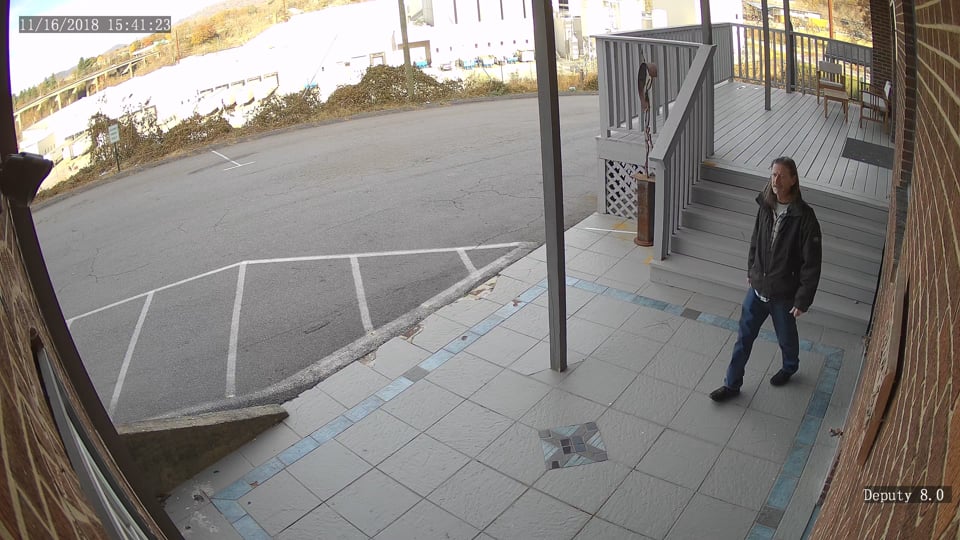

Sample Photos taken by the Deputy 8.0. Click to enlarge the images. Press ESC key to close.

10 FT 25 FT 50 FT 75 FT 100 FT 125 FT
view of a person at 10 feet from a 2.8mm 118 degree FOV lens 4K security camera view of a person at 25 feet from a 4mm 118 degree FOV lens 4K security camera view of a person at 50 feet from a 4mm 118 degree FOV lens 4K security camera view of a person at 75 feet from a 4mm 118 degree FOV lens 4K security camera view of a person at 100 feet from a 4mm 118 degree FOV lens 4K security camera view of a person at 125 feet from a 4mm 118 degree FOV lens 4K security camera

detection

Detect someone up to 150 feet

"Detecting" a face means being able to tell that a human face is in the picture.

recognize

Recognize someone up to 85 feet

"Recognizing" a face refers to being able to say "I have seen that person before" - even if you don't know or can't place who it is.

identify

Identify someone up to 45 feet

"Identification" refers to being able to make out identifiable marks with enough certainty to make a sketch or claim.



Resolution

4K UHD

4K @ 15 FPS; 3840 × 2160

Detect: 150 ft
Recognize: 85 ft
Identify: 45 ft


4MP vs 4K


Weather

weatherproof

IP67
Full protection from dust, rain, snow, dew, frost, and sprinklers.

You can even submerge it for a few minutes.


Temp

temperature rating

Temperature rated from -22°F to 140 °F

Humidity rated between 10 and 95%.


Lens

fixed lens

Fixed: 2.8mm
118° of coverage

Digital Zoom Only

Learn about Digital vs Optical Zoom


Day/Night

night footage

Infrared night vision up to 100 FT

Larger image sensor for low light

Color video possible until 0.001 lux

How to get the best footage at night


Special

special features

Digital Wide Dynamic Range

Seeing in shadows: Understanding WDR


Cat5 Plug and Play POE with Admiral NVRs

Plug & Play with Admiral & Imperial NVRs

This Deputy 8.0 will plug and play with our Admiral and Imperial line of CCTV NVRs.

Please note that our ip security camera models with models numbers in the 26xxx format record in the new, more efficient H.265 compression codex and are intended to work with our Imperial and Admiral NVRs.



Built Tough: Commercial Grade Line

This Deputy 8.0 is part of our Admiral commercial security camera line. Feel free to read more about these features and what commercial grade means to us, but here's a quick synopsis:

IP67 weatherproof rated - Full protection against dust, rain, sprinklers, water jets and even immersion up to 1 meter for 30 minutes.

Extreme Temperature - Withstands extreme temperatures from the summers of Arizona to the winters in Minnesota. -31°F ~ 140 °F

Aluminum and Ceramic Molding - Feel confident in your invest with commercial grade housing that won’t crumble and decay like the plastic competition.

Anti Reflective Glass with Automotive grade LEDs - Commercial quality components that allow better light transmission and will last without dimming or fading over time.

Passes vibration and surge testing up to 6,0000 volts - SCW cameras can withstand vibration and surges up to 6,000 volts.

Easy 1 Click Firmware Update Process - Maintenance made easy.

750 Foot POE Extended Transmission: the old 300 foot limitations are a thing of the past.

Store 40% more data with H.265 video compression or switch back to H.264, if you need H.264 third-party integration support.

No Recording Delay - Even when recording on motion.



3 to 5 year warranty

3 or 5 Year Warranty

The Deputy 8.0 comes with a 3 year warranty. This warranty can also be upgraded to a 5 years. We recommend doing so for commercial clients.



Motion Detection, Alerts, and VCA

This Deputy 8.0 is part of our Admiral motion detection ip security camera line. Feel free to read more about these features by clicking on the link, but here's a quick synopsis:

Alerts and Notifications:

Get email alerts with snapshot images of motion detection alerts or VCA events

Set a schedule to get emails only on the hours of the day you want.

Get Push Notifications to the SCW Go Application for Android and iPhone.

Recording:

Create your own customizable record schedule, including recording based on the day of the week, hours of the day, or even choose not to record for periods of time. Set constant recording during business hours and only motion during closed hours.

Motion, VCA, or 24/7 Recording - Record based on motion detection, VCA (video content analysis), or set the system to record 24/7. You can even record based on alarm inputs!

No Recording Delay / Pre & Post Event Recording - If your system is set to record based on motion or VCA events, you can have a 60 second pre-event buffer to grab footage prior to the detection. You can also set the system to record up to 10 minutes after an incident is detected.

Customizable Motion Detection Recording through VCA events:

VCA features do vary by camera model. This Deputy 8.0 supports these VCA features:

Intrusion Detection - Monitor areas with precision, define zones, set time thresholds, and sensitivity.

Line Crossing - Create virtual lines to detect people or objects crossing doors, entrances, and more.

People Counting - Determine how many people are entering and exiting. Keep and review daily logs.

Vandal Detection - Get alerts based on tampering detection, defocusing, or any dramatic scene changes.


Corridor Mode

Corridor Mode

This camera has Corridor Mode.

Corridor mode allows you to flip the image on its side so that you can change the 16x9 ratio to 9x16. This is advantageous in the case of hallways, side yards, or corridors (hence the name) where the extra space vertical space is needed and the extra horizontal space would only show you more wall or fence area. To use corridor mode, install the camera with the lens pointed 90 degrees from center and then enable the corridor mode on via our software.



ONVIF compliant

ONVIF Conformant

This device is ONVIF compliant for both the S and G profiles.

ONVIF is an open industry standard encoding language for the interface of IP-based physical security products.



bitrate 4k 15 fps

At 4K (8MP) and 15 FPS, while recording at H.265, this camera should use 2.5 Mbps of the NVR's bitrate budget. (With H.264, it should use 5Mbps).

Related: IP Camera Bitrate Calculator


American-Based Technical Support after the sale. For FREE. Forever.

Real review from Fransisco, who had this to say:

The most important part of a purchase like this is the support for technical assistance when there is a question or when there is a problem, and they always exceed expectations!


All of our equipment comes with Free Technical Support that is US based (Our Warehouse and Staff are located in Asheville, NC). We're happy to help you via chat, email, screenshare / remote support sessions, and phones. Our number is 866-414-2553 and we're open from 9-7 M-F (EST).


scw support included


UL Listed, FCC certified

UL Listed and FCC Certified

UL is a safety consulting and certification company headquartered in Northbrook, Illinois and provides safety-related certification, validation, testing, inspection, and auditing of SCW products.

The Federal Communications Commission has certified that the electromagnetic interference from the device is under limits approved by the FCC.


The Deputy 8.0 26DF8 Specs



Specifications

26DF8
Image Sensor
1/2.5” 8 Million Pixel, Progressive Scan CMOS
Processor Manufacturer
Hisilicon
Min. Illumination
Color video until 0.001 lux @F1.6, AGC ON
0 lux with IR on
Shutter
Auto/Manual, 1/6 to 1/100,000 second
Lens
2.8mm@F1.6
118° of horizontal coverage; (64° vertical)
Day & Night
IR-cut filter with auto switch (ICR)
Digital Noise Reduction
2D/3D DNR
Wide Dynamic Range
True WDR @ 120dB
Digital Defog
Yes
Video Compression
H.265, H.264, MJPEG
Camera Streams
Main Stream: up to 8MP/4K (3840×2160): Max. 15 fps,5MP (2592×1944): Max. 30 fps,3MP (2560×1440): Max. 30 fps;

Sub Stream: up to 2MP (1920×1080): Max. 30 fps;
Mobile Data-Sensitive Stream: up to D1 (720×576): Max. 30 fps
Bit Rate
32 Kbps ~ 8Mbps
Max. Image Resolution
3840×2160; 8 Megapixel
Frame Rate
8MP (3840×2160): Max. 15 fps,5MP (2592×1944): Max. 30 fps
Image Settings
Saturation, brightness, contrast, sharpness, headlight compensation, backlight compensation, region of interest, 9:16 corridor mode, evaluative metering.
BLC
Yes, zone configurable
Alarm Trigger
Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Interoperability
ONVIF (Profile S, Profile G)
Communication Interface
1 RJ45 10M/100M Base-TX Ethernet
Operating Conditions
(-22°F ~ 140 °F) Humidity 10 - 95% (non-condensing)
Power Supply
12 V DC±25%, PoE (IEEE802.3 af)
Power Consumption
Max. 5.5W
Weather Proof Rating
IP67

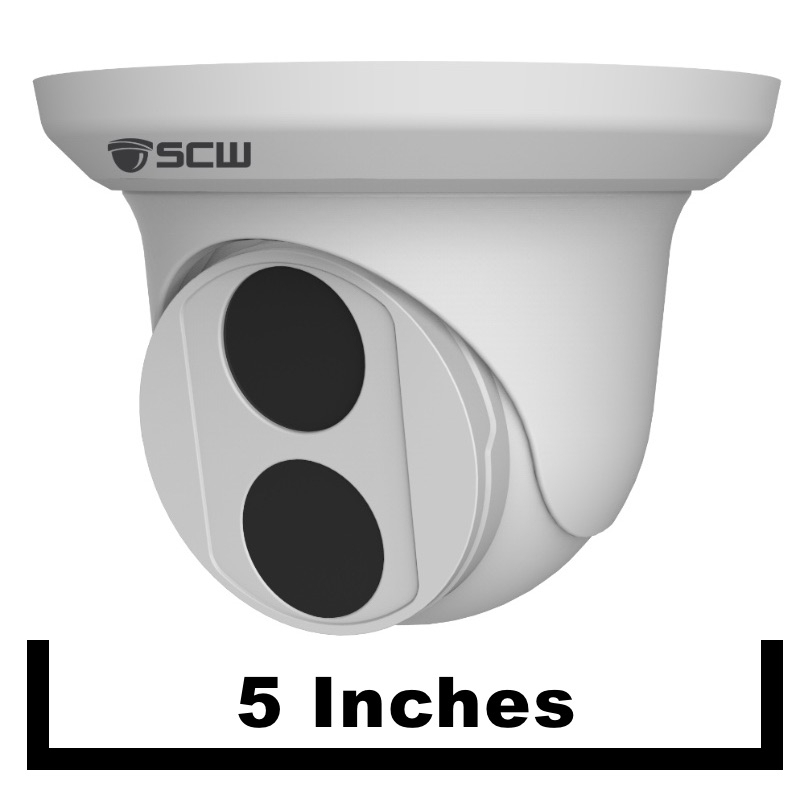

Dimensions
Ø5.0” x 3.7”
IR Range
Up to 100ft.
Weight
1 Lbs
