$6,104.00

24 Camera 1080P Admiral Series

In stock

Usually ships the same business day if ordered before 2PM EST.

SKU
ADM24CH1080P

Cameras


2MP @ 30 FPS: 1920 x 1080

85° or 110° options
IP67 Weatherproof
Infrared night vision up to 100 FT
-22°F to 140 °F temp rated


Processing Power and Compression: Not All 4MP Cameras are Created Equal


Software


VCA: Motion Detection, Intrusion Detection, Vandalism Detection
Video Content Analytics (VCA) Search
VCA Event based Email Alerts
Remote Footage Download
1 Click Firmware Update

Learn when you would use VCA


Remote Viewing


Smartphone Apps
Tablet Apps
Windows Apps
Mac Viewing Apps
Internet Explorer Viewing

How Patent Wars have changed Browser Support


Hardware


Cat5e (RJ45) Ethernet to Network
Standard 3-Prong Wall Plug
16 SCWEasyConnect 2.0 ports on back for Plug and play 2018 SCW camera auto-configuration up to 750 ft away

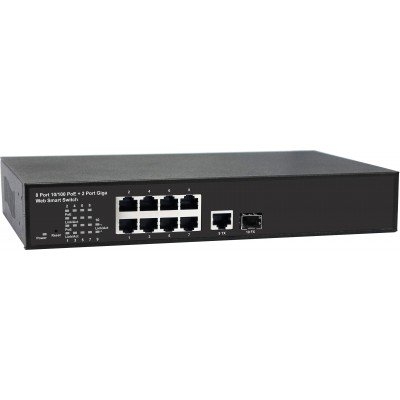

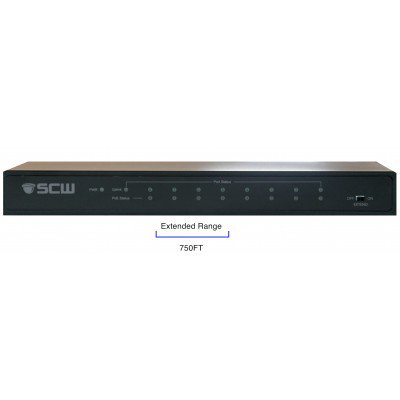

Additional POE Switches for flexibility in cable runs
VGA Monitor Out
4K HDMI Out for TVs/Monitors
Footage Download via USB

Learn about automatic backup footage options

Images
24 Camera 1080P Admiral Series24 Camera 1080P Admiral Series24 Camera 1080P Admiral Series24 Camera 1080P Admiral Series24 Camera 1080P Admiral Series24 Camera 1080P Admiral Series24 Camera 1080P Admiral Series24 Camera 1080P Admiral Series24 Camera 1080P Admiral Series24 Camera 1080P Admiral Series24 Camera 1080P Admiral Series24 Camera 1080P Admiral Series24 Camera 1080P Admiral Series24 Camera 1080P Admiral Series24 Camera 1080P Admiral Series24 Camera 1080P Admiral Series24 Camera 1080P Admiral Series24 Camera 1080P Admiral Series
Need Installation?

No Problem

Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.

Get a Custom Quote for Equipment or Installation

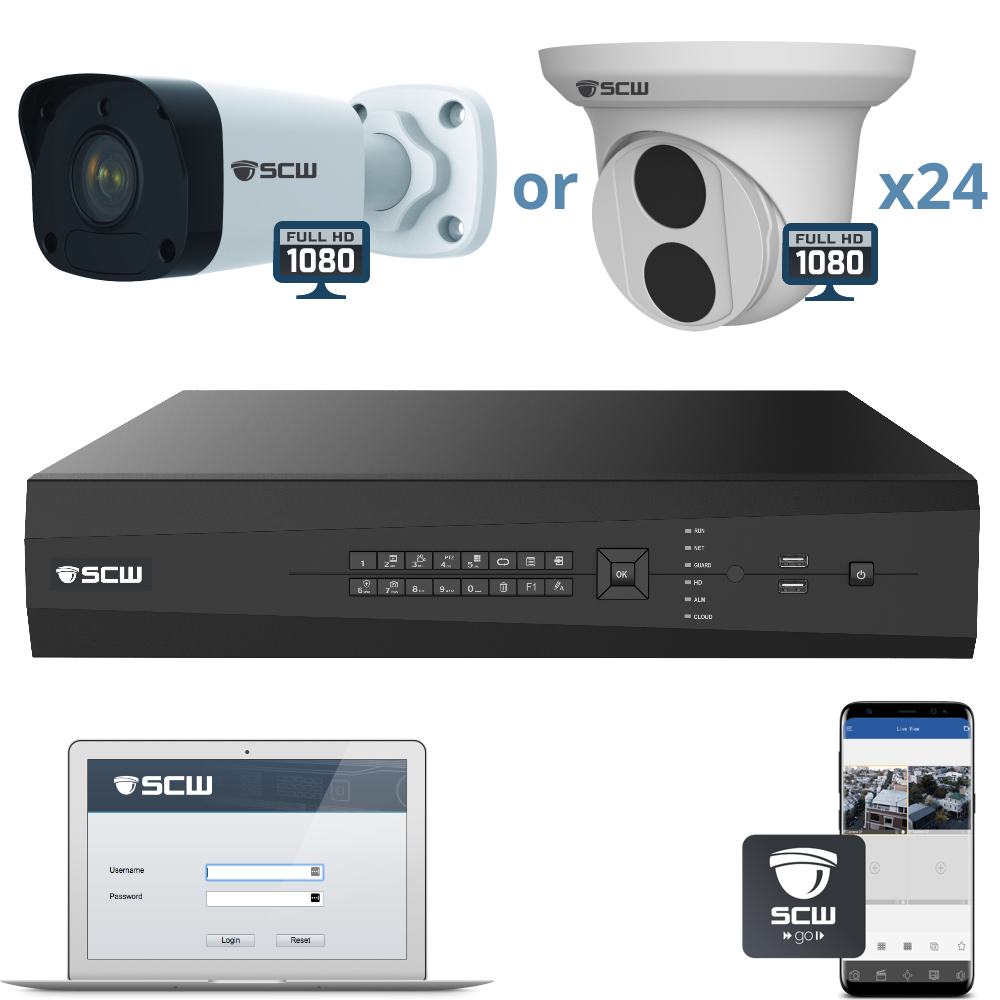

This 24 Camera 1080P Admiral Series Camera System is Customizable:

You can choose if you want bullet or dome cameras or half and half. If you don't know what to pick, please see our Bullet vs Dome cameras guide.

When you add this system to the cart, it will break up into individual cameras and recorder, so that you can further customize it, if you so choose. Please see our guide on How to Customize our Security Camera Systems if you want to sub one of the cameras in this package out for a specialty camera, like a PTZ or long range camera.

You can also choose your hard drive size when you add it to the cart. For this twenty-four channel 1080P system, 5TBs of hard drive storage will usually last around 7 days on continuous H.265 recording and 4-8x longer (4 to 8 weeks) when recording on motion. If you want a custom recording length, you can use our NVR storage calculator to determine how large of a hard drive you would need.

Camera Options

Although you can substitute Admiral line IP cameras and have them work with this system, we have included our two most popular cameras in this customizable system bundle: The Deputy 2.0 v3 turret dome camera and The Warrior 2.0 v3 bullet camera. The main difference between the two cameras that come in this system bundle are the viewing angle and how far you can ID a face. Both of the cameras in this system record at 1080P (2 Million Pixels per frame) and both can be mounted indoors or outdoors, on the wall or on the ceiling/overhang.

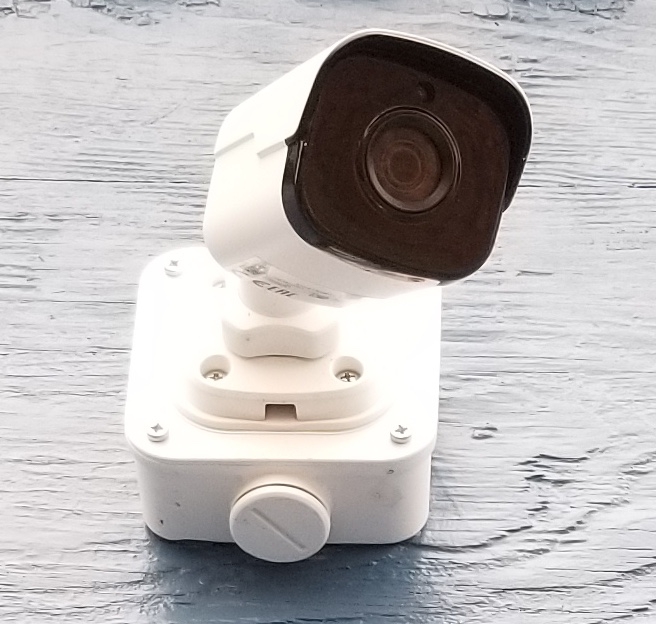

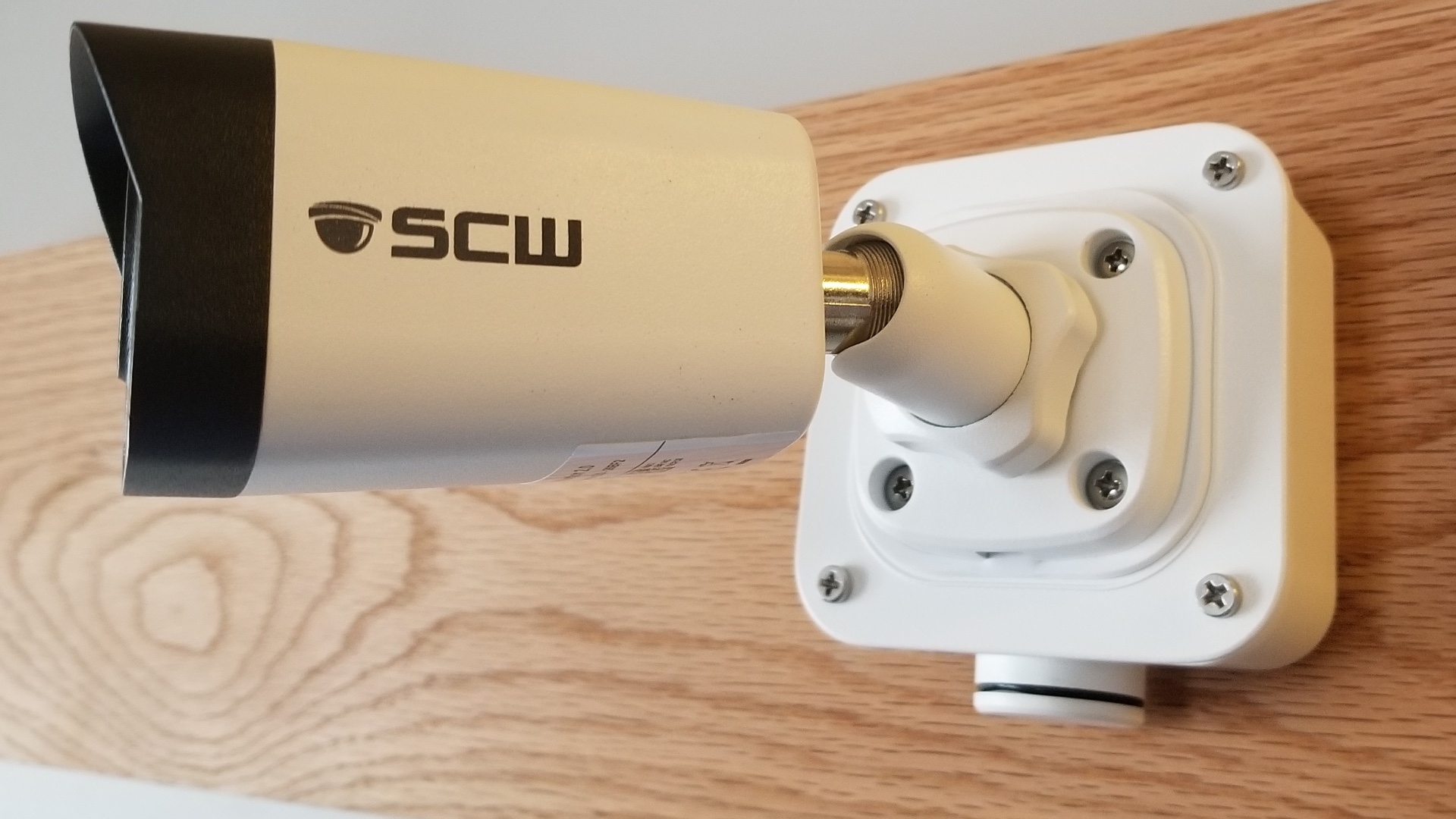

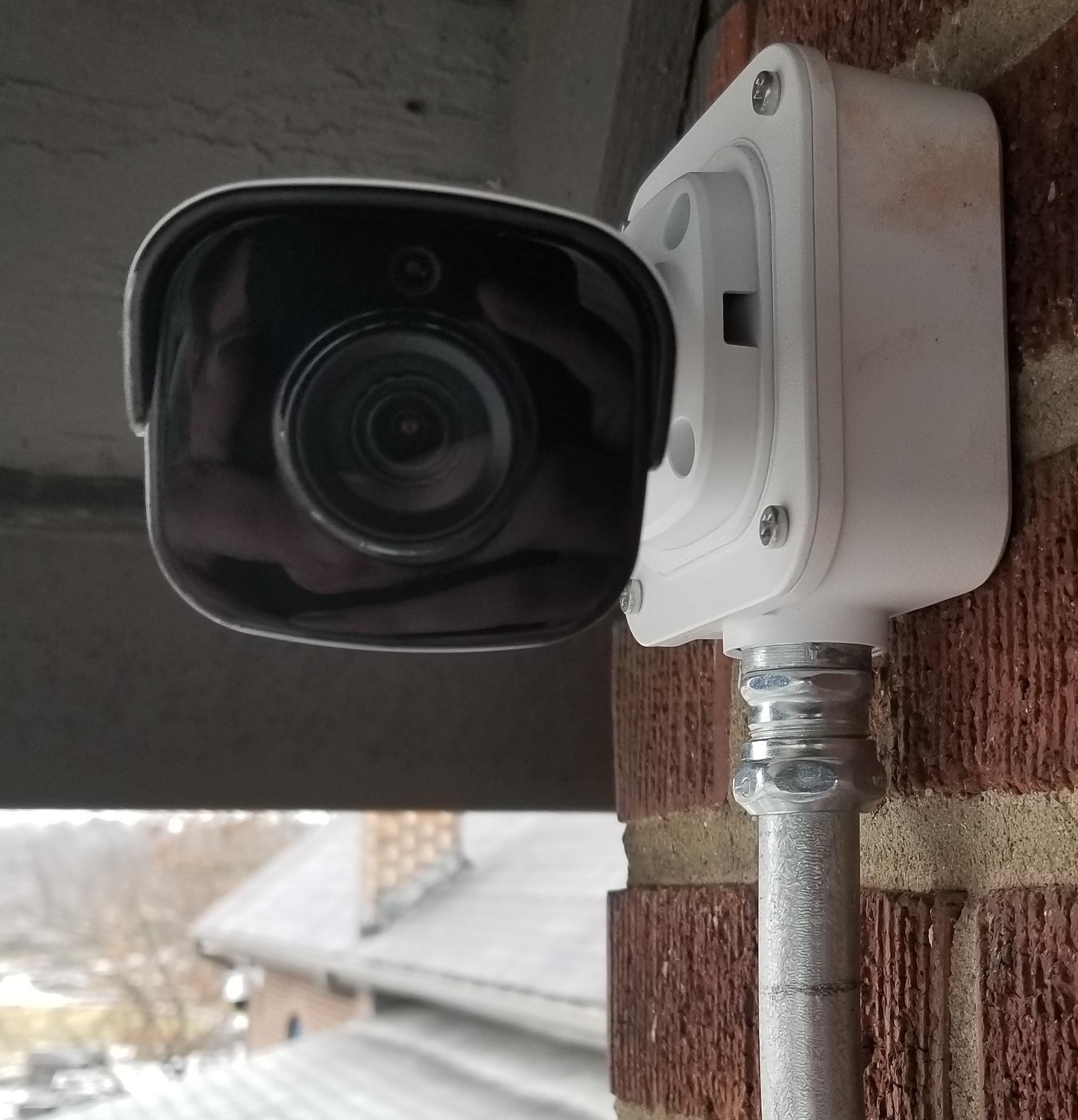

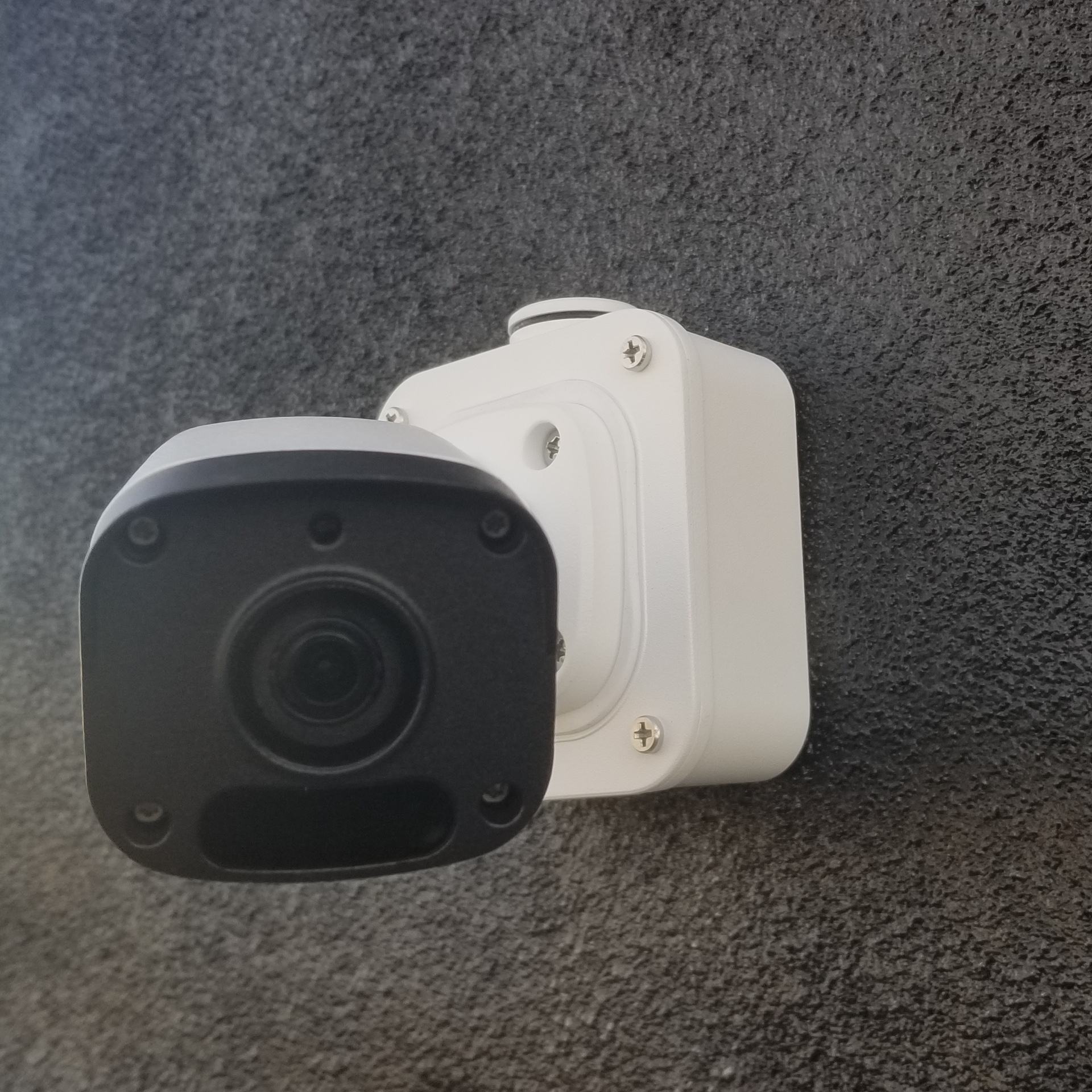

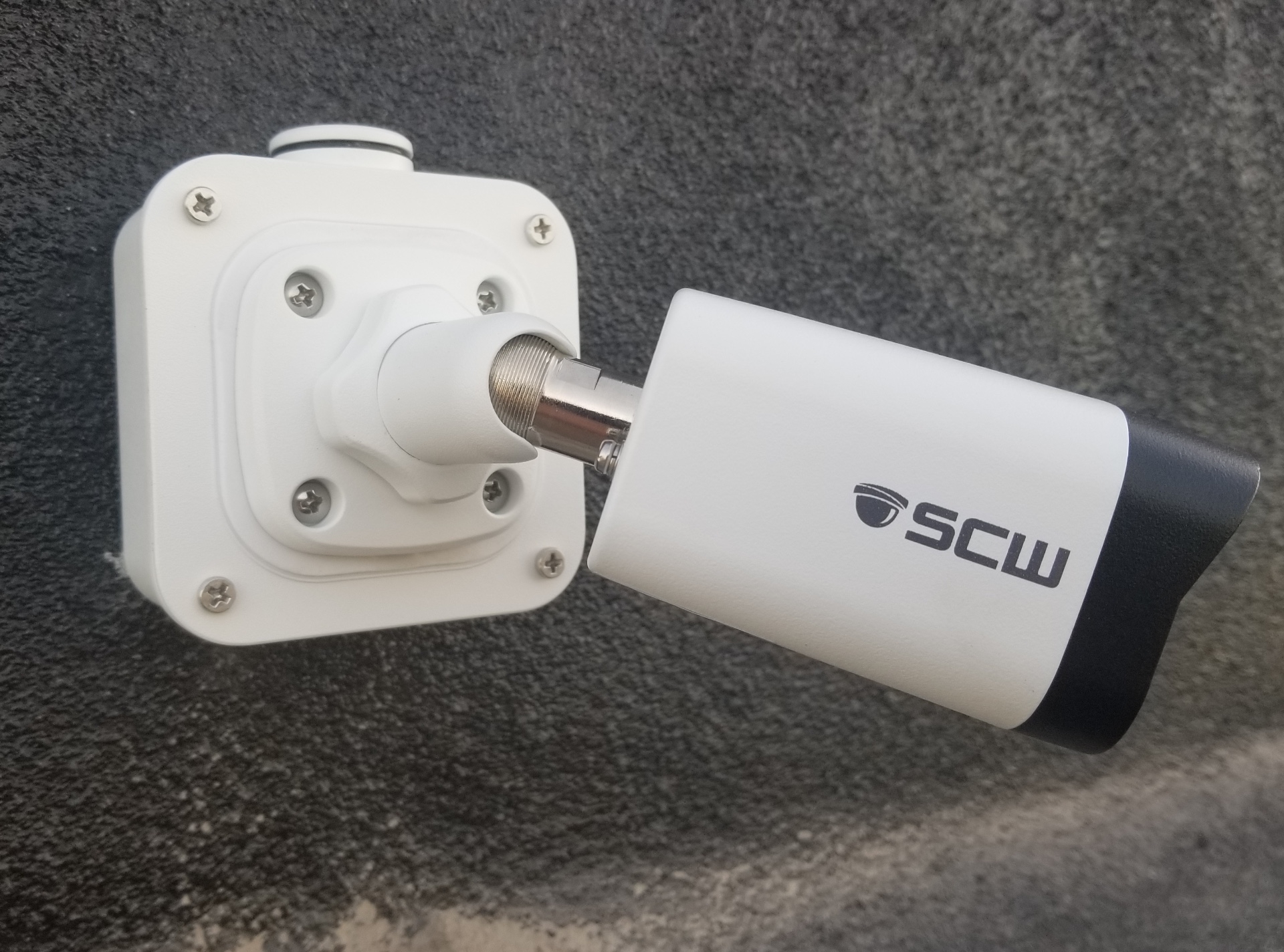

The Warrior 2.0 v3 - 26BF2M-V3

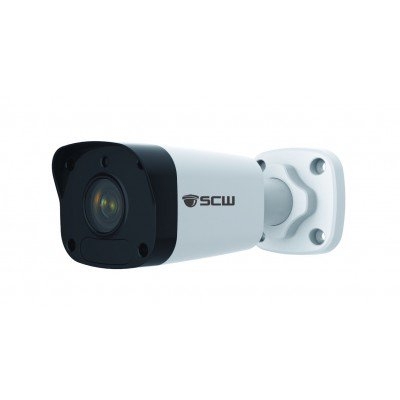

The Warrior 2.0 v3 - 26BF2M-V3 - 1080P Fixed Lens Mini Bullet Camera


Resolution

1080p HD

1080P @ 30 FPS; 1920 × 1080

Detect: 100 ft
Recognize: 50 ft
Identify: 25 ft


Processing Power and Compression: Not All 1080P Cameras are Created Equal


Weather

weatherproof

IP67
Full protection from dust, rain, snow, dew, frost, and sprinklers.

You can even submerge it for a few minutes.


Temp

temperature rating

Temperature rated from -22°F to 140 °F

Humidity rated between 10 and 95%.


Lens

fixed lens

Fixed: 4mm
91° of coverage

Digital Zoom Only

Learn about Digital vs Optical Zoom


Day/Night

night footage

Infrared night vision up to 100 FT

Larger image sensor for low light

Color video possible until 0.01 lux

How to get the best footage at night


Special

special features

NDAA Approved M-Star CPU

Built in Microphone

MicroSD Card Slot

True Wide Dynamic Range

Seeing in shadows: Understanding WDR

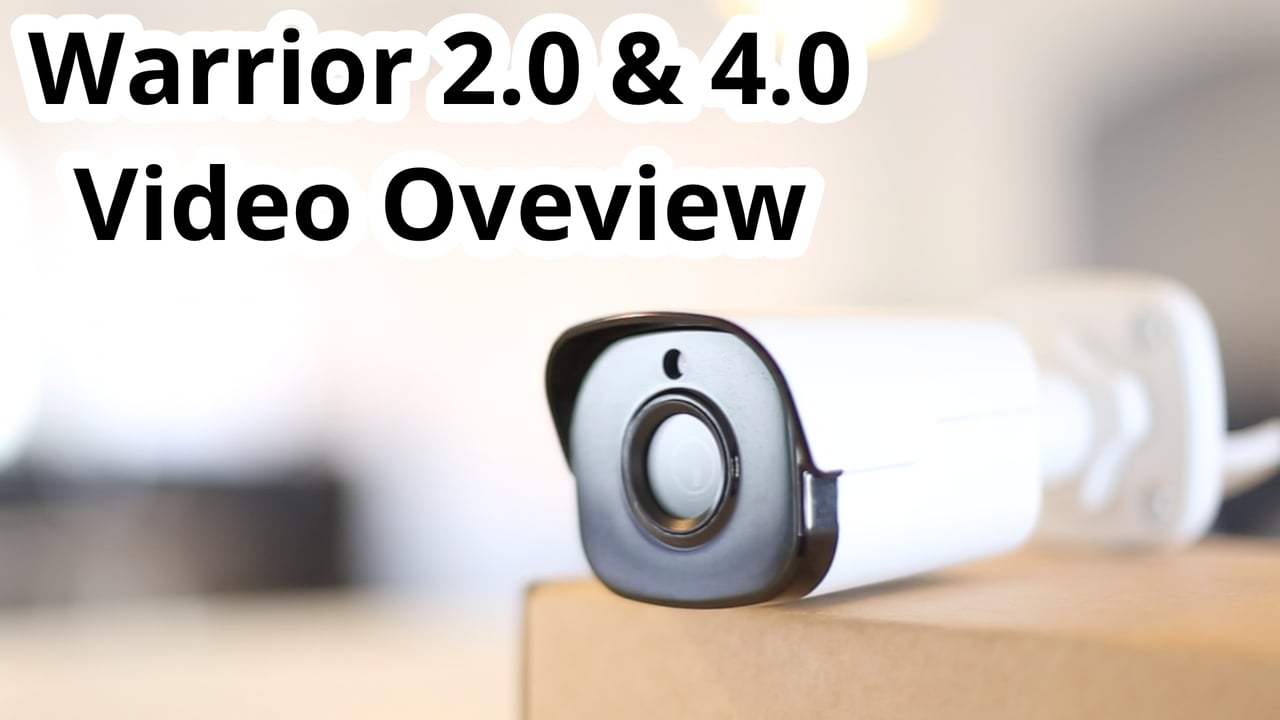

The Warrior is our most popular camera model. It is tied with the Deputy in terms of how easy it is to install and position, since neither camera requires you to remove any part of the camera to screw it into the wall/ceiling/soffit. This makes it ideal for outdoor use as you don't have a tendency to trap moisture in the lens, as is common with dome cameras, where you have to remove the outer glass dome to mount them. The 91 degree lens is great balance between covering a large area and identifying faces and license plates. Although you can use this camera inside or out, the most common use of the Warrior models (the camera comes in 2MP, 4MP, or 8MP) is to cover the side of buildings or large sections of yards.

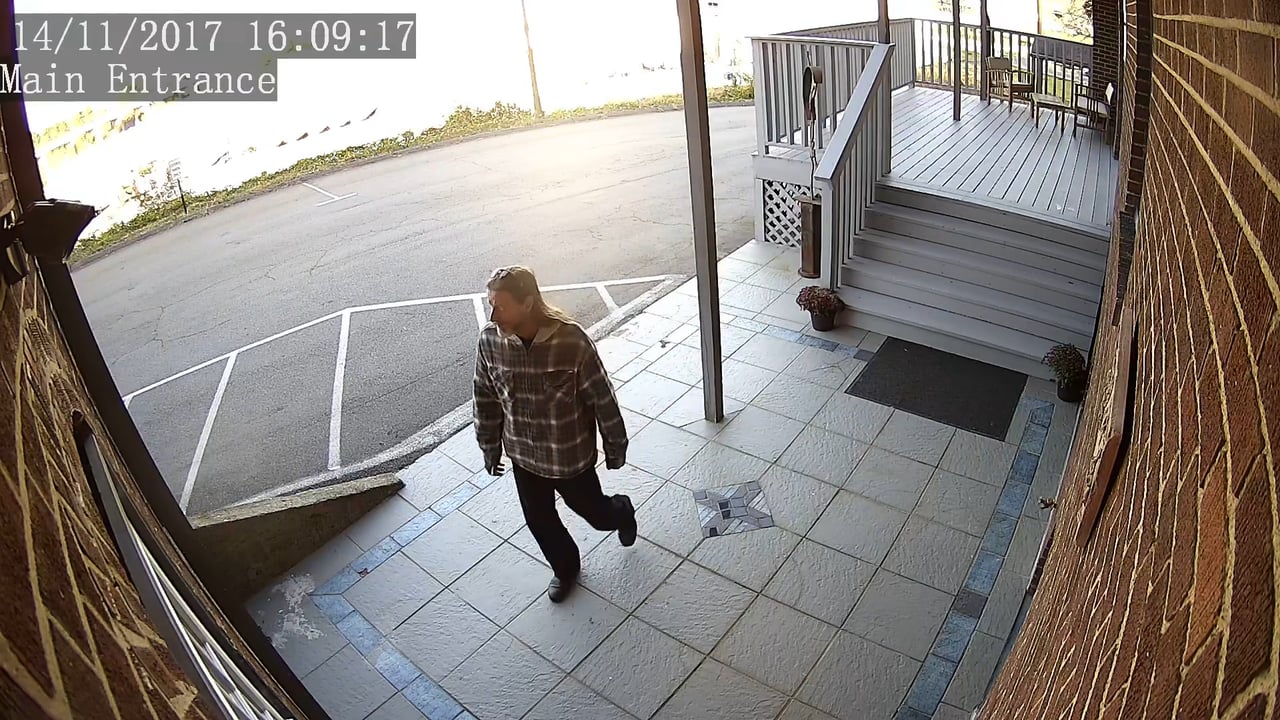

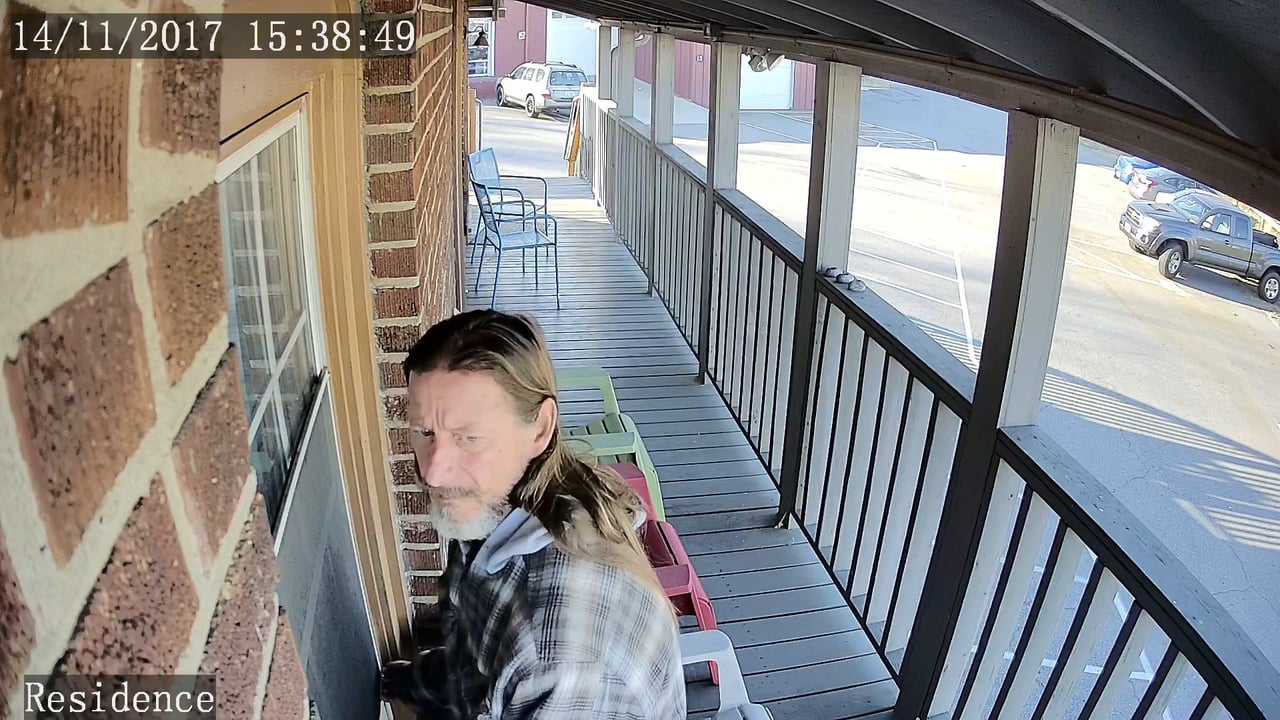

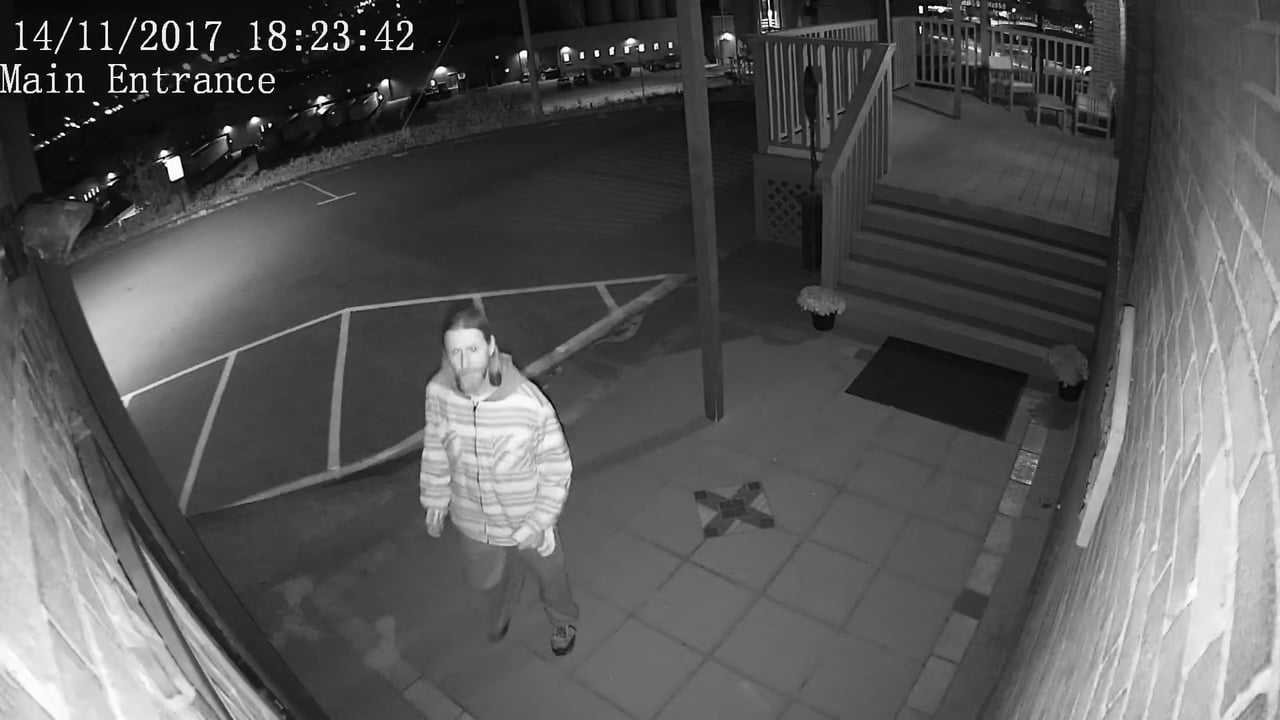

Sample Photos taken by the Warrior 2.0 v3. Click to enlarge the images. Press ESC key to close.

10 FT 25 FT 50 FT 75 FT 100 FT
Warrior 2.0 v3 view from 10FT 91 degree FOV 1080p camera Warrior 2.0 v3 view from 25FT 91 degree FOV 1080p camera Warrior 2.0 v3 view from 50FT 91 degree FOV 1080p camera Warrior 2.0 v3 view from 75FT 91 degree FOV 1080p camera Warrior 2.0 v3 view from 100FT 91 degree FOV 1080p camera

detection

Detect someone up to 100 feet

"Detecting" a face means being able to tell that a human face is in the picture.

recognize

Recognize someone up to 50 feet

"Recognizing" a face refers to being able to say "I have seen that person before" - even if you don't know or can't place who it is.

identify

Identify someone up to 25 feet

"Identification" refers to being able to make out identifiable marks with enough certainty to make a sketch or claim.

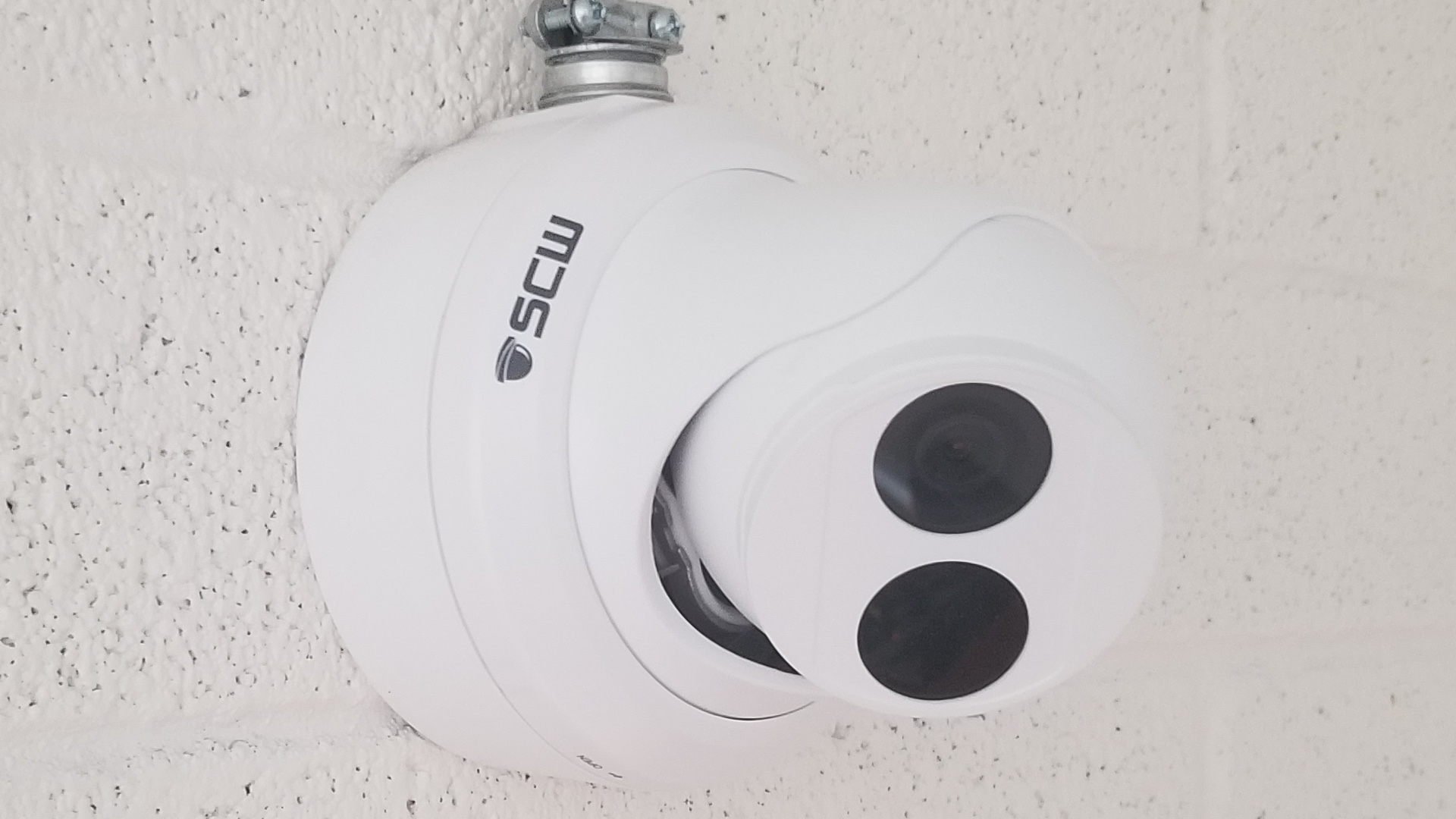

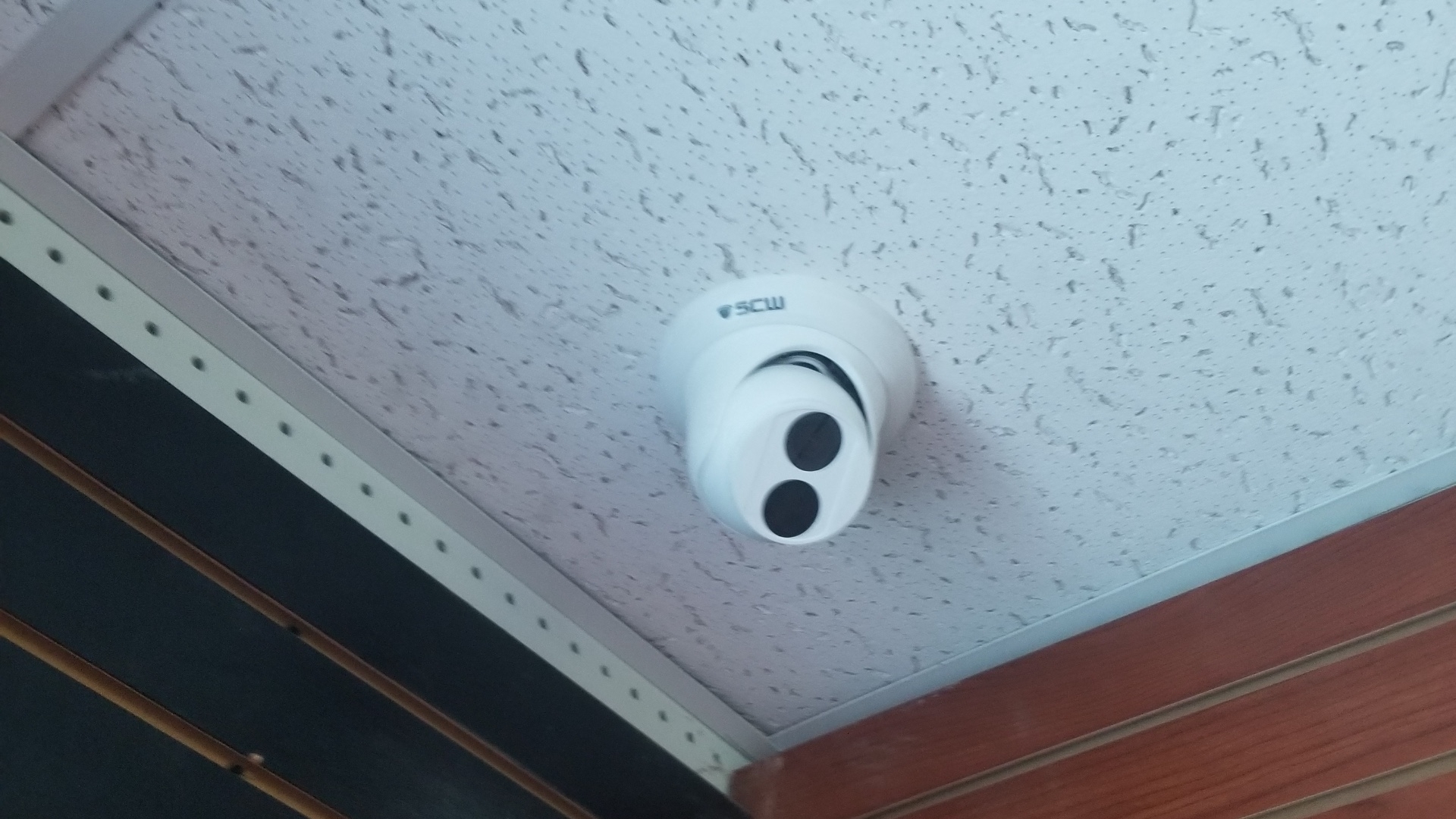

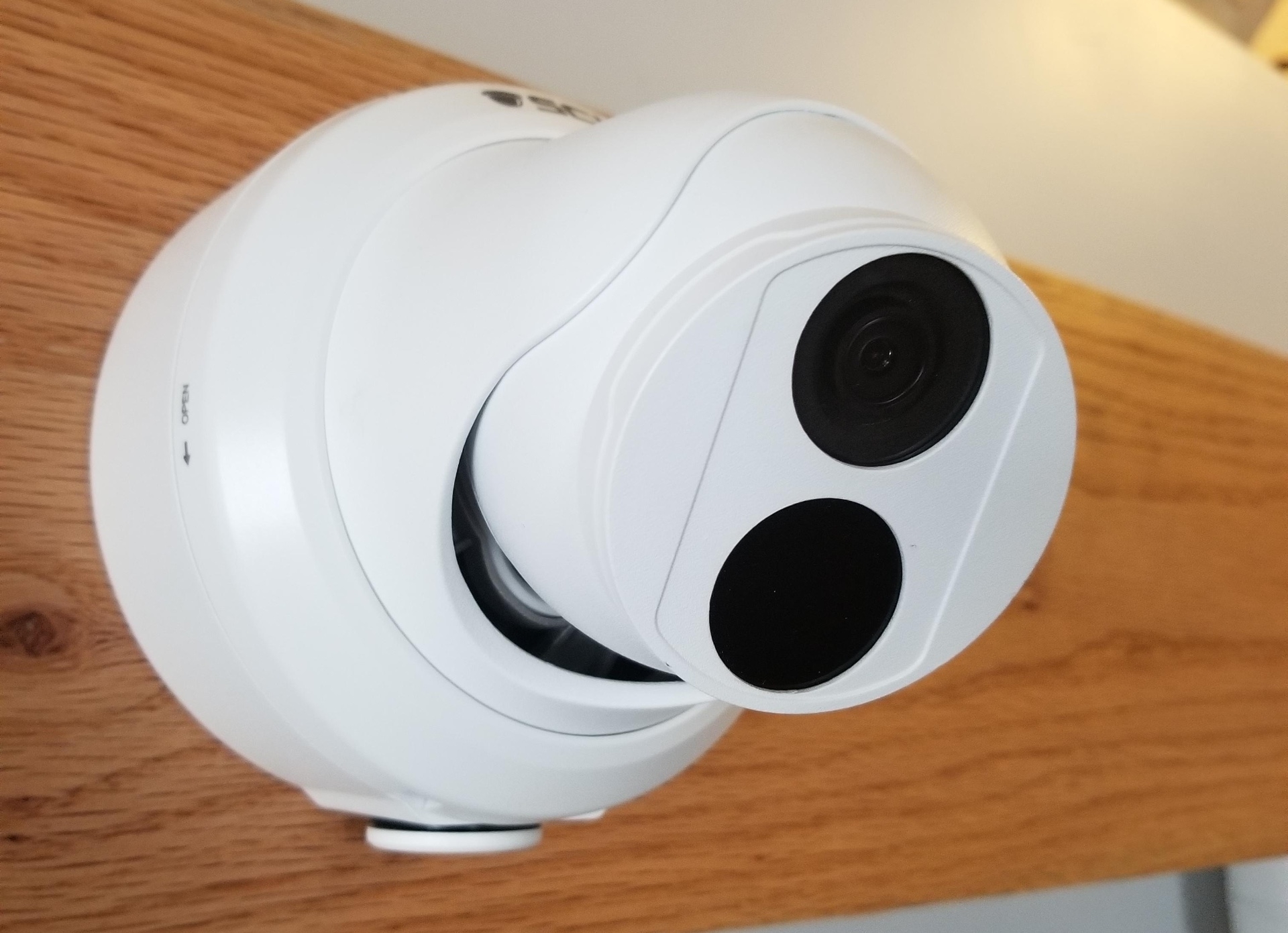

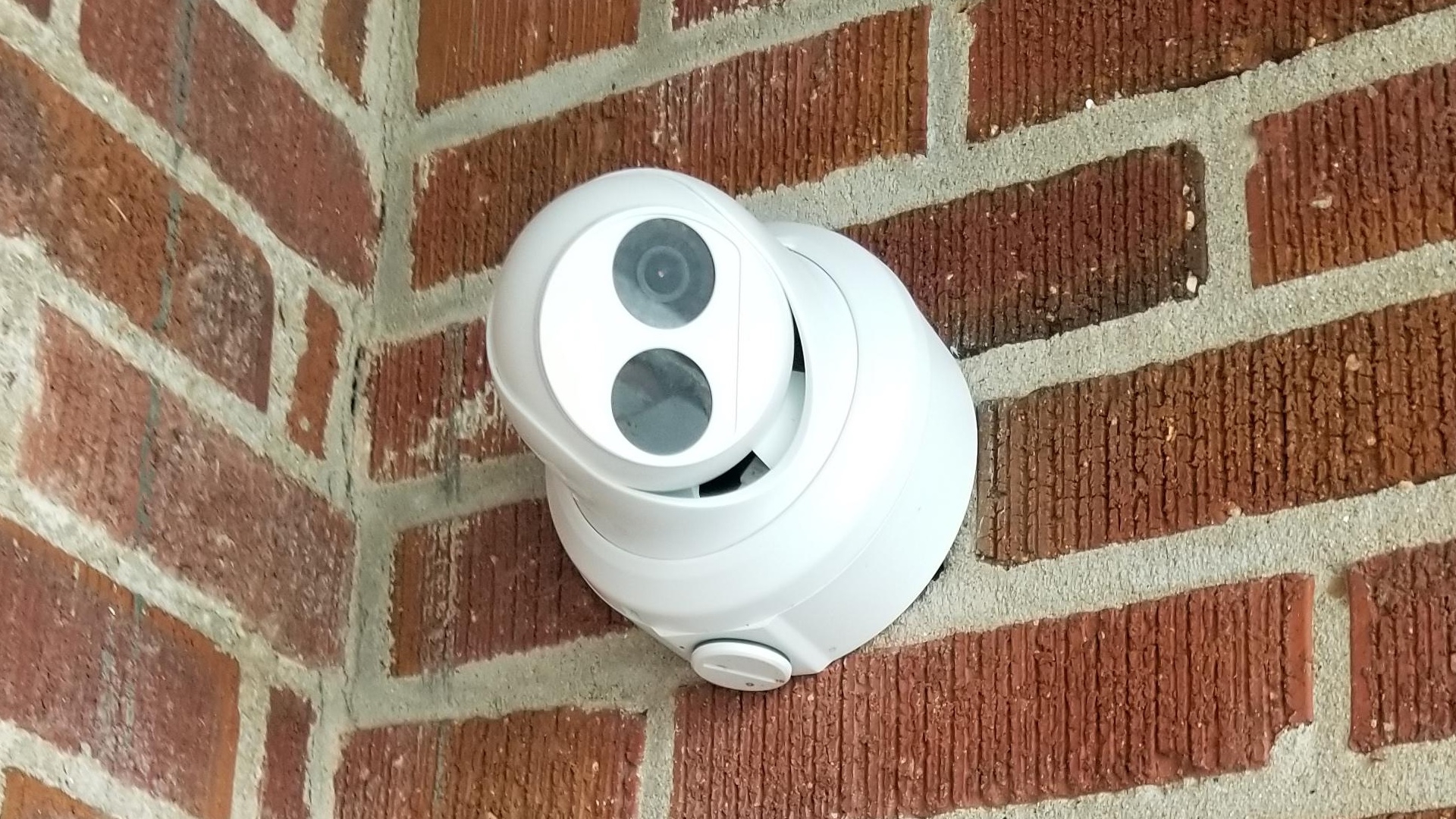

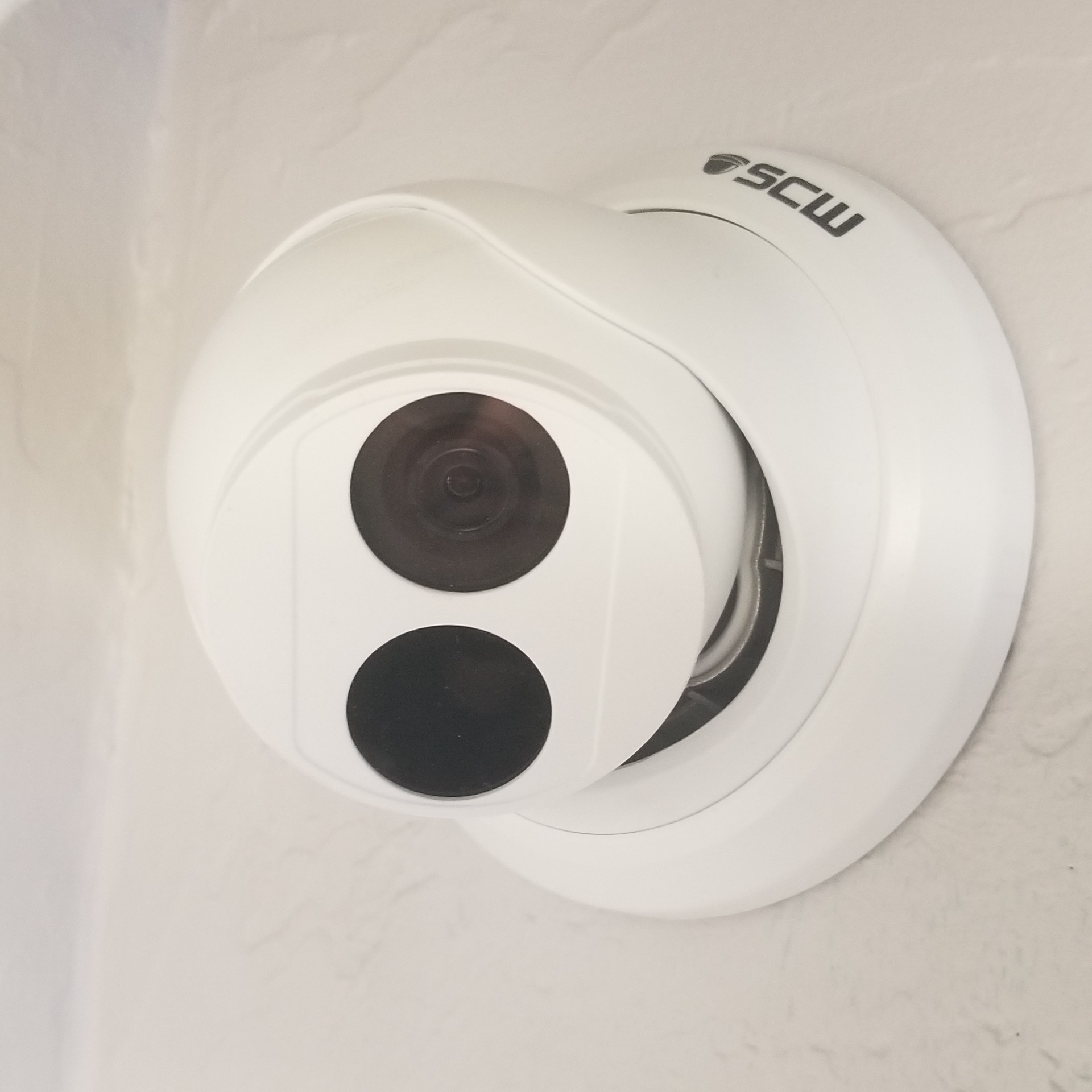

 The Deputy 2.0 -
                26DF2

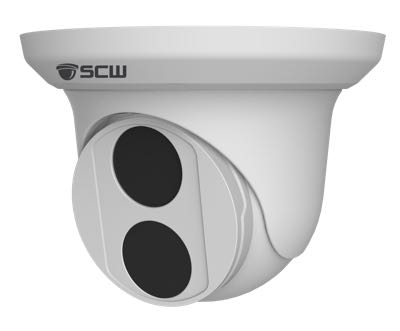

The Deputy 2.0 v3 - 26DF2M-V3 - 1080P Fixed Wide Angle Lens Turret Dome Camera


Resolution

1080p HD

1080P @ 30 FPS; 1920 × 1080

Detect: 75 ft
Recognize: 40 ft
Identify: 20 ft


Processing Power and Compression: Not All 1080P Cameras are Created Equal


Indoor/Outdoor

weatherproof

IP67
Full protection from dust, rain, snow, dew, frost, and sprinklers.

You can even submerge it for a few minutes.


Temp

temperature rating

Temperature rated from -22°F to 140 °F

Humidity rated between 10 and 95%.


Lens

fixed lens

Fixed: 2.8mm
113° of coverage

Digital Zoom Only

Learn about Digital vs Optical Zoom


Day/Night

night footage

Infrared night vision up to 100 FT

Color video possible until 0.01 lux

How to get the best footage at night


Special

special features

NDAA Approved M-Star CPU

True Wide Dynamic Range

Built in Microphone

MicroSD Card Slot

Seeing in shadows: Understanding WDR

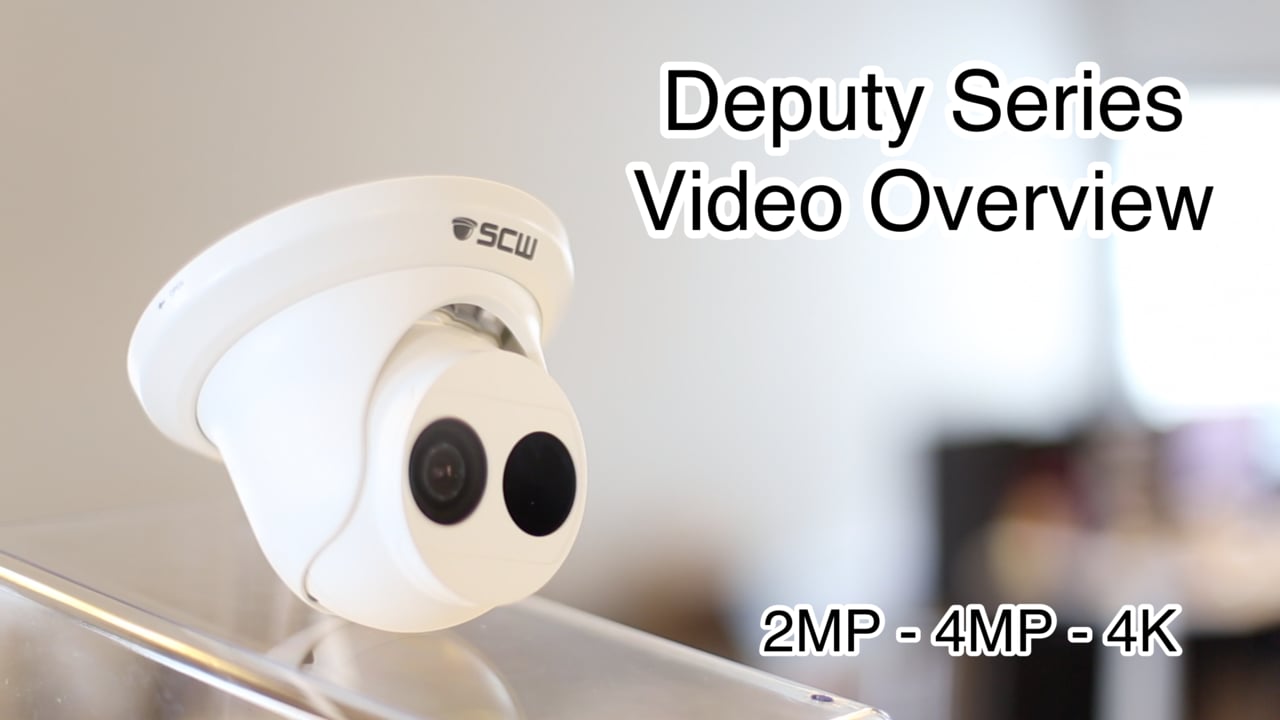

The Deputy is our second most popular camera model. It is tied with the Warrior in terms of how easy it is to install and position, since neither camera requires you to remove any part of the camera to screw it into the wall/ceiling/soffit. This makes it ideal for outdoor use as you don't have a tendency to trap moisture in the lens, as is common with dome cameras, where you have to remove the outer glass dome to mount them. The 110 or 118 degree lens is best used to cover an entire room at once (by installing it in a corner) or to cover a wide area of a smaller yard, as wider lenses always decrease how far away you can identify a person of license plate. Although you can use this camera inside or out, the most common uses of the Deputy models (the camera comes in 2MP, 4MP, or 4K variants) are to install the camera in the corner of a room or to cover front doors and porches outdoors. Two Deputies are often installed back to back to make a 220-236 degree view, such as in the middle of a wall. (This two camera solution has less of that dizzying "fisheye" look that is common with 180 degree cameras and is also usually cheaper.)

Sample Photos taken by the Deputy 2.0. Click to enlarge the images. Press ESC key to close.

10 FT 20 FT 50 FT 75 FT 100 FT
view at 10 feet from a 2.8mm 110 degree FOV lens 1080P security camera view at 20 feet from a 2.8mm 110 degree FOV lens 1080P security camera view at 50 feet from a 2.8mm 110 degree FOV lens 1080P security camera view at 75 feet from a 2.8mm 110 degree FOV lens 1080P security camera view at 100 feet from a 2.8mm 110 degree FOV lens 1080P security camera

detection

Detect someone up to 75 feet

"Detecting" a face means being able to tell that a human face is in the picture.

recognize

Recognize someone up to 40 feet

"Recognizing" a face refers to being able to say "I have seen that person before" - even if you don't know or can't place who it is.

identify

Identify someone up to 20 feet

"Identification" refers to being able to make out identifiable marks with enough certainty to make a sketch or claim.

Both Camera Options in this System Bundle have these Features:

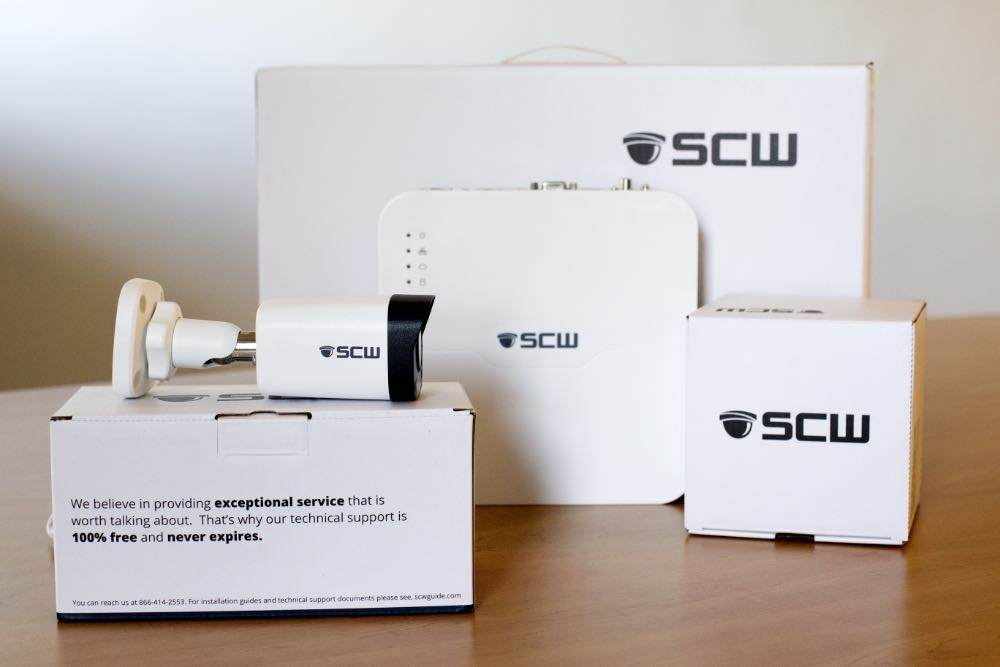

Built Tough: Commercial Grade Line

This Warrior 2.0 is part of our Admiral commercial grade security camera line. Feel free to read more about these features and what commercial grade means to us, but here's a quick synopsis:

IP67 weatherproof rated - Full protection against dust, rain, sprinklers, water jets and even immersion up to 1 meter for 30 minutes.

Extreme Temperature - Withstands extreme temperatures from the summers of Arizona to the winters in Minnesota. -31°F ~ 140 °F

Aluminum and Ceramic Molding - Feel confident in your invest with commercial grade housing that won’t crumble and decay like the plastic competition.

Anti Reflective Glass with Automotive grade LEDs - Commercial quality components that allow better light transmission and will last without dimming or fading over time.

Passes vibration and surge testing up to 6,0000 volts - SCW cameras can withstand vibration and surges up to 6,000 volts.

Easy 1 Click Firmware Update Process - Maintenance made easy.

750 Foot POE Extended Transmission: the old 300 foot limitations are a thing of the past.

Store 40% more data with H.265 video compression or switch back to H.264, if you need H.264 third-party integration support.

No Recording Delay - Even when recording on motion.


Included in this System is an Admiral NVR:

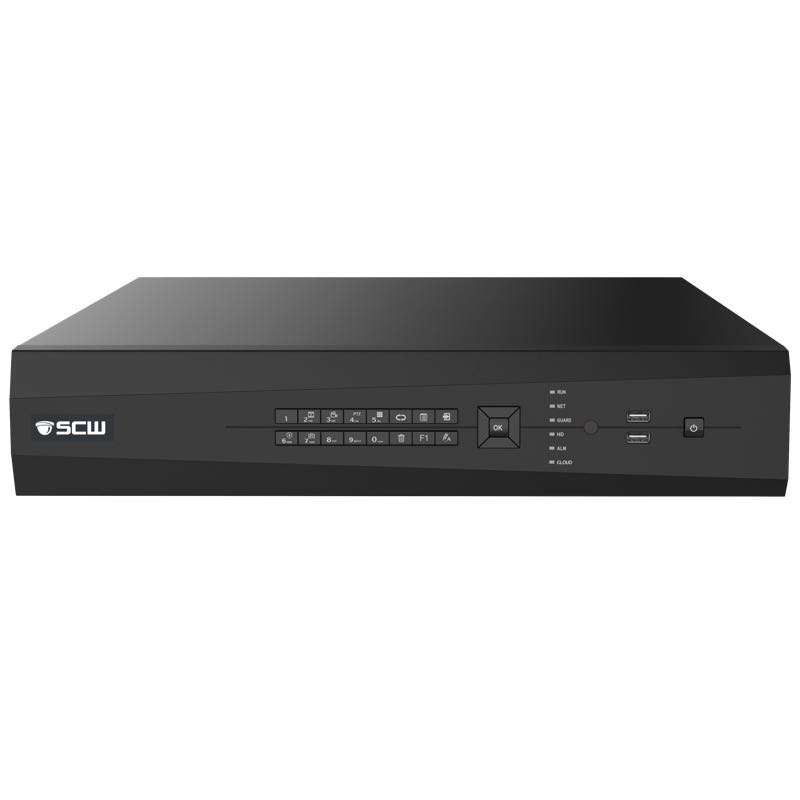

The Admiral Pro 32 Channel NVR - ADMP32P16

The Admiral Pro 32 Channel NVR - ADMP32P16


Recording


32 1080P cameras at 30 FPS
32 4MP cameras at 25 FPS
32 4K cameras at 30 FPS

320 Mbps incoming bitrate; 10 Mbps per channel

H.265 encoding


Software


VCA: Motion Detection, Line Crossing, Face Detection, Intrusion Detection, People Counting, Vandalism Detection
Video Content Analytics (VCA) Search
VCA Event based Email Alerts
Remote Footage Download
1 Click Firmware Update

Learn when you would use VCA


Viewing


4 x 4K, 8 x 4MP, 16 x 1080p, 32 x 960p

Smartphone Apps
Tablet Apps
Windows Apps
Mac Viewing Apps
Internet Explorer Viewing

How Patent Wars have changed Browser Support


Hardware


4 hard drive bays
Rack Mount Ears Included
Cat5e (RJ45) Ethernet to Network
Standard 3-Prong Wall Plug
16 SCWEasyConnect ports on back for Plug and play 2018 SCW camera auto-configuration
VGA Monitor Out
4K HDMI Out for TVs/Monitors
Alarm Inputs and Outputs
Footage Download via USB


Smart IR

16 POE ports; Processing Power to Record 32 Cameras

After powering the NVR, a single power plug can also power 32 cameras.

This Admiral Pro has 16 SCWEasyConnect ports built into its case. This NVR can record an additional 16 cameras when those cameras are connected to a POE switch on the same network. This NVR can record up to 32 cameras.

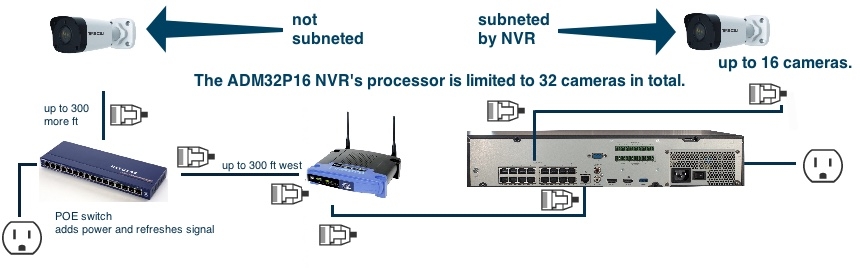

Here's a wiring diagram for how you would connect cameras 17-32:

wiring diagram ADMP32P16

Up to 16 cameras can be connected via the ADMP32P16's POE ports (subnetted and more secure). The other cameras are connected via a POE switch on your network. If you are concerned about cybersecurity, the IMP32 is a better choice as it is more secure because it subnets all the cameras. For more info, please see our Best Practices for preventing IOT Security Camera Hacks guide.




Motion Detection, Alers, and VCA

Motion Detection, Alerts, and VCA

This Admiral NVR is a motion detection NVR. Feel free to read more about these features by clicking on the link, but here's a quick synopsis:

Alerts and Notifications:

Get email alerts with snapshot images of motion detection alerts or VCA events

Set a schedule to get emails only on the hours of the day you want.

Get Push Notifications to the SCW Go Application for Android and iPhone.

Automatically upload snapshot images via FTP

Recording:

Create your own customizable record schedule, including recording based on the day of the week, hours of the day, or even choose not to record for periods of time. Set constant recording during business hours and only motion during closed hours.

Motion, VCA, or 24/7 Recording - Record based on motion detection, VCA (video content analysis), or set the system to record 24/7. You can even record based on alarm inputs!

Motion Detection You Can Use in Court - If your system is set to record based on motion or VCA events, you can have a 60-second pre-event buffer to grab footage prior to the detection. You can also set the system to record up to ten minutes after an incident is detected. Motion detection footage does not "time out" and stop recording mid-scene. Motion Clips cannot be deleted by employees or other users.

Customizable Motion Detection Recording through VCA events:

VCA features vary by camera model, and can include:

Intrusion Detection - Monitor areas with precision, define zones, set time thresholds, and sensitivity.

Line-Crossing - Create virtual lines to detect people or objects crossing doors, entrances, and more.

People Counting - Determine how many people are entering and exiting. Keep and review daily logs.

Audio Detection - Listens for rises or falls in volume, and sudden loud noises.

Vandal Detection - Get alerts based on tampering detection, defocusing, or any dramatic scene changes.

Analysis:

Smart Search - Quickly review footage by filtering by motion detected in specific areas of the screen, by the face captured, by an intrusion into certain areas, or by line-crossing

People Counting Statistics - view traffic stats on your NVR or download a CSV file



commercial grade

Commercial-Grade Features

The Admiral Pro 32 Channel NVR is part of our commercial-grade NVR line. Feel free to read more about these features and what commercial-grade means to us, but here's a quick synopsis, as to how it relates to NVRs:

Surveillance-Rated Hard Drive - NVRs need Surveillance-Rated Hard Drives, as PC drives will overheat and fail.

Store 40% more data with H.265 video compression or switch back to H.264, if you need H.264 third-party integration support.

Passes vibration and surge testing up to 6,000 volts - SCW NVRs can withstand vibration and surges up to 6,000 volts.

Cybersecurity Protections - hackers can't easily see SCW cameras because they run on a special, isolated network created by the NVR. (For more information and a history of some of the larger cybersecurity attacks that have affected the industry, please see our guide on best practices for preventing IOT hacks.)

4K at 30 FPS Capable - Sufficient Bitrate (processing power) to Record Smooth Video

Easy 1 Click Firmware Update Process - Maintenance made easy.

750-Foot POE Extended Transmission: the old 300-foot limitations are a thing of the past.

No Recording Delay - Even when recording on motion.

ONVIF compliant - this NVR complies with the open-industry standard ONVIF for both Profile S (video & audio streaming) and Profile Q POE ports (you can plug-and-play with other Profile Q compliant cameras).

NAS backup - this NVR can extend its storage or mirror its contents onto a second location on a NAS (networked attached storage) device



warranty

3 or 5 Year Warranty

The Admiral Pro 32 Channel NVR comes with a 3-year warranty. This warranty can also be upgraded to 5 years. We recommend doing so for commercial clients.



PC Mac Viewstation software

SCW view station PC/Mac Software

Our Windows/Mac application is a full-featured, easy to use, desktop video management software. You can combine multiple Admiral or Imperial systems, even at multiple locations, and seamlessly view, control, and manage them as if they were one system. Just about anything you can do on your NVR you can do on our free SCW ViewStation.

SCW View Station is both Mac and PC compatible and is 100% free.



browser

Browser Plugin

Although you can edit most settings and live stream a camera feed in any of the major browsers, to take full advantage of our software features you will need to install our browser plugin or viewstation software.

Our browser plugin supports Internet Explorer, and Chrome, Edge, and Firefox (in Windows).



scwgo mobile app

SCWGo Smartphone and Tablet Apps

SCWGo is available for both Android and iPhone/iPad.

You download these apps from your phone's app store. Just look for the SCWGo app.



vga output

VGA Out

This recording device has VGA Out.

You can plug this recording device into any VGA enabled monitor.

Q: Do I have to use a monitor?

A: No, you can use either a monitor or a TV, as explained below. But, you don't actually have to use either. You can manage nearly all your settings remotely via our PC or Mac apps or via the web-interface. Quite a few of our customers hide their recorders or put them in a safe with a cable pass-through, to prevent them from potential theft. This is a perfectly fine solution. You will probably want to plug a monitor in to make your initial setup easier.



hdmi output

HDMI Out

This recording device has HDMI Out.

You can plug this recording device into any HDMI enabled television. This means that you don't need to purchase a monitor unless you want to; you can connect a monitor with either HDMI or VGA cable.

Q: What if I plug in both the HDMI and VGA? Can I watch on two screens?

A: HDMI #1 and VGA the video is mirrored. On HDMI 2 it displays a separate view. This gives you 3 total screens, but two will display a mirror image (VGA/HDMI1).


American-Based Technical Support after the sale. For FREE. Forever.

Real review from Fransisco, who had this to say:

The most important part of a purchase like this is the support for technical assistance when there is a question or when there is a problem, and they always exceed expectations!


All of our equipment comes with Free Technical Support that is US based (Our Warehouse and Staff are located in Asheville, NC). We're happy to help you via chat, email, screen share / remote support sessions, and phones. Our number is 866-414-2553 and we're open from 9-7 M-F (EST).


scw support included



UL Listed

UL Listed and FCC Certified

This product is UL Listed and FCC certified

UL is a safety consulting and certification company headquartered in Northbrook, Illinois, and provides safety-related certification, validation, testing, inspection, and auditing of SCW products.

The Federal Communications Commission has certified that the electromagnetic interference from the device is under limits approved by the FCC.



Not Sanctioned. On Oct 7th, 2019, the US government placed sanctions on major providers in the industry for human rights abuses. Some or all Honeywell, Hikvision, Dahua, Lorex, Swann, LTS, Annke, Alibi, Laview, WBox, Interlogix, Flir, Bosch, ICRealtime, QSee, Panasonic, ADT, Indigo Vision, Montavue, and many more security products are included. SCW's Admiral and Imperial line equipment is not sanctioned.

These sanctions prevent these companies from using US technology or standards in future software or firmware releases and from using US patents in future hardware models. This means that they are going to face a situation where they either don't update firmware for cybersecurity concerns or lose ONVIF compliance or features when their firmware is updated. For these reasons, we recommend staying away from these brands.

For more information and full documentation, please see our article on NDAA and US Sanctions of Hikvision, Dahua, and their OEM brands.


Most popular downloads related to The 1080P Admiral Series Security Camera System


spec sheet

Spec Sheet for the Warrior 2.0 v2

A one page PDF listing this product's most important specs.


spec sheet

Spec Sheet for the Deputy 2.0

A one page PDF listing this product's most important specs.


spec sheet

Spec Sheet for The Admiral 4 Channel NVR - ADM4P4

A one page PDF listing this product's most important specs.


How to Bench Test Your IP Camera - a Guide


How to Bench Test Your IP Camera - a Guide

It is very, very important that you always bench test IP cameras before installing them. This will help you determine if you accidentally cut an ethernet cable during installation.


The Quickstart Guide to SCW IP Cameras and NVRs


The Quickstart Guide

You should get one of these in your shipment when you order, but sometimes it is nice to have a digital version.


User Manual for SCW's Admiral line of IP Cameras


User Manual for SCW's Admiral line of IP Cameras

You should get one of these in your shipment when you order, but sometimes it is nice to have a digital version.


User Manual for SCW's Admiral line of IP Cameras

User Manual for The Admiral Line of NVRs


Drill Template for IP Camera Installation and Mounting


Replacement Warrior Drill Template

Each and every camera you order should have one of these in the box, but if you lost yours or just want to change where the camera is located, here's a digital version that you can print and use.


Drill Template for IP Camera Installation and Mounting


Replacement Deputy Drill Template

Each and every camera you order should have one of these in the box, but if you lost yours or just want to change where the camera is located, here's a digital version that you can print and use.

Please see our support portal for a full list of all technical bulletins, user manuals, and software.

Installation Guides related to This 1080P Admiral Series Security Camera System

installation safety guides

Safety First

Our products are really safe, but if you are going to drill into a wall - for any purpose - you need to stay away from your electrical lines and turn your power off.

drilling for security cameras guide

Drilling

Learn what bits your need for Brick, Stucco, Vinyl Siding, Sheetrock, Wood, etc.

cabling for security cameras guide

Cabling

Learn how to run cable better than the pros. From Raceways to Conduit to Terminating RJ45 to Extending Cable Distance.

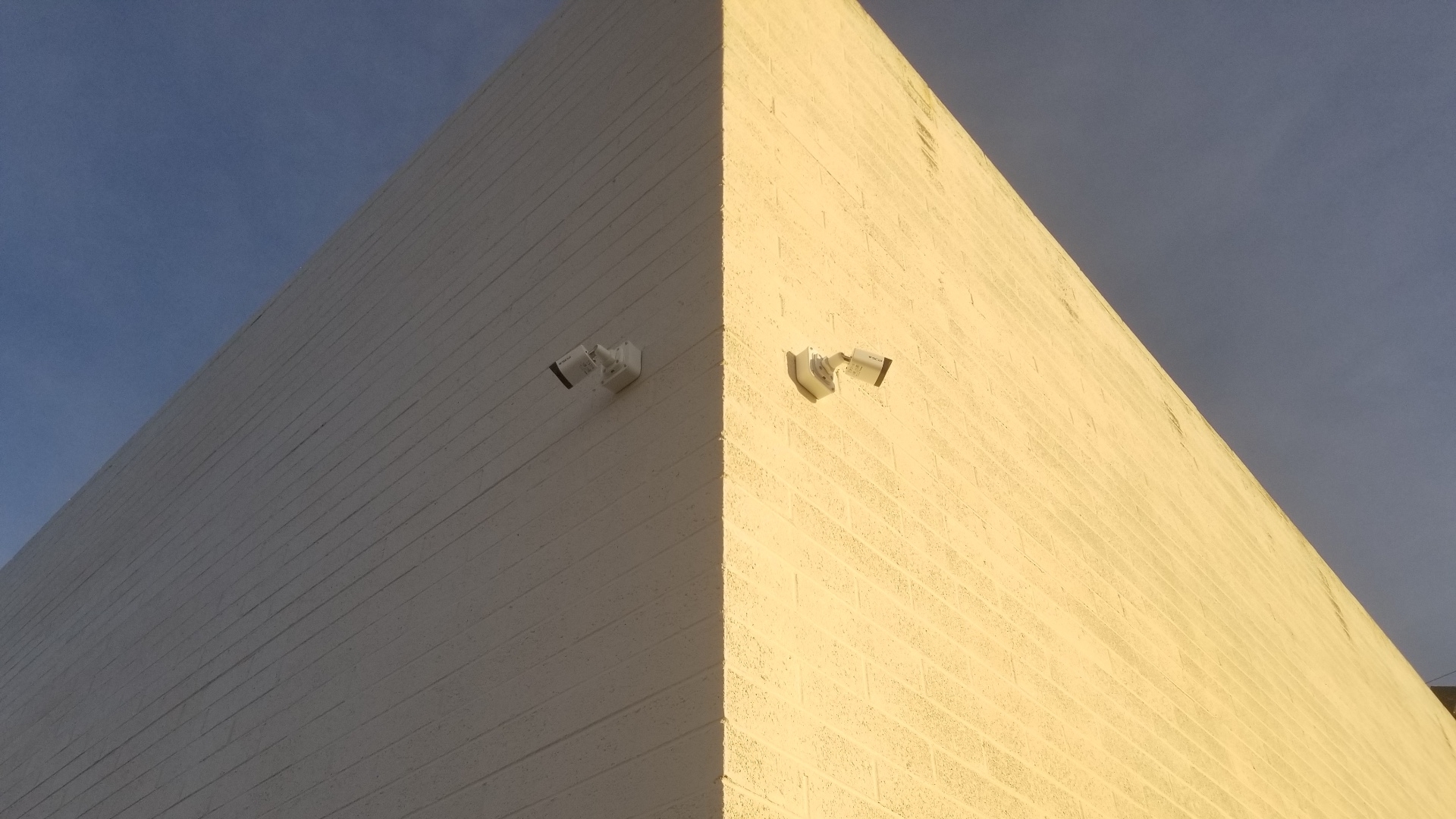

Mounting Bullet Cameras on Walls

Mounting Bullet Cameras on Walls

In this guide, we will be installing a bullet camera on a wall.

Mounting Bullet Cameras on Ceilings

Mounting Bullet Cameras on Ceilings

In this guide, we will be installing a bullet camera on a ceiling.

Mounting Bullet Cameras on Soffits

Mounting Bullet Cameras on Soffits

In this guide, we will be installing a bullet camera on a soffit.

Mounting Bullet Cameras with Electrical Box Mounts

Using Electrical Mounting Boxes

Our electrical box mounts are used to give easy access to your connections, hide them inside the junction box, and allow you to drill a smaller hole in your wall. If you want to run EMT or FMC conduit they are necessary to run conduit straight to the camera.

Mounting Bullet Cameras with Pole Mounts

Mounting Bullet Cameras to Pole Mounts

In this guide, we will be installing a Hornet Pro bullet camera on a pole.

Mounting Dome Cameras on Walls

Mounting Dome Cameras on Walls

In this guide, we will be installing a dome camera on a wall.

Mounting Dome Cameras on Ceilings

Mounting Dome Cameras on Ceilings

In this guide, we will be installing a dome camera on a ceiling.

Mounting Cameras with Electrical Box Mounts

Positioning the Lens in our Dome Cameras

In this video guide, we demonstrate how to adjust the lens positioning on our Dome Cameras.
