$1,850.00

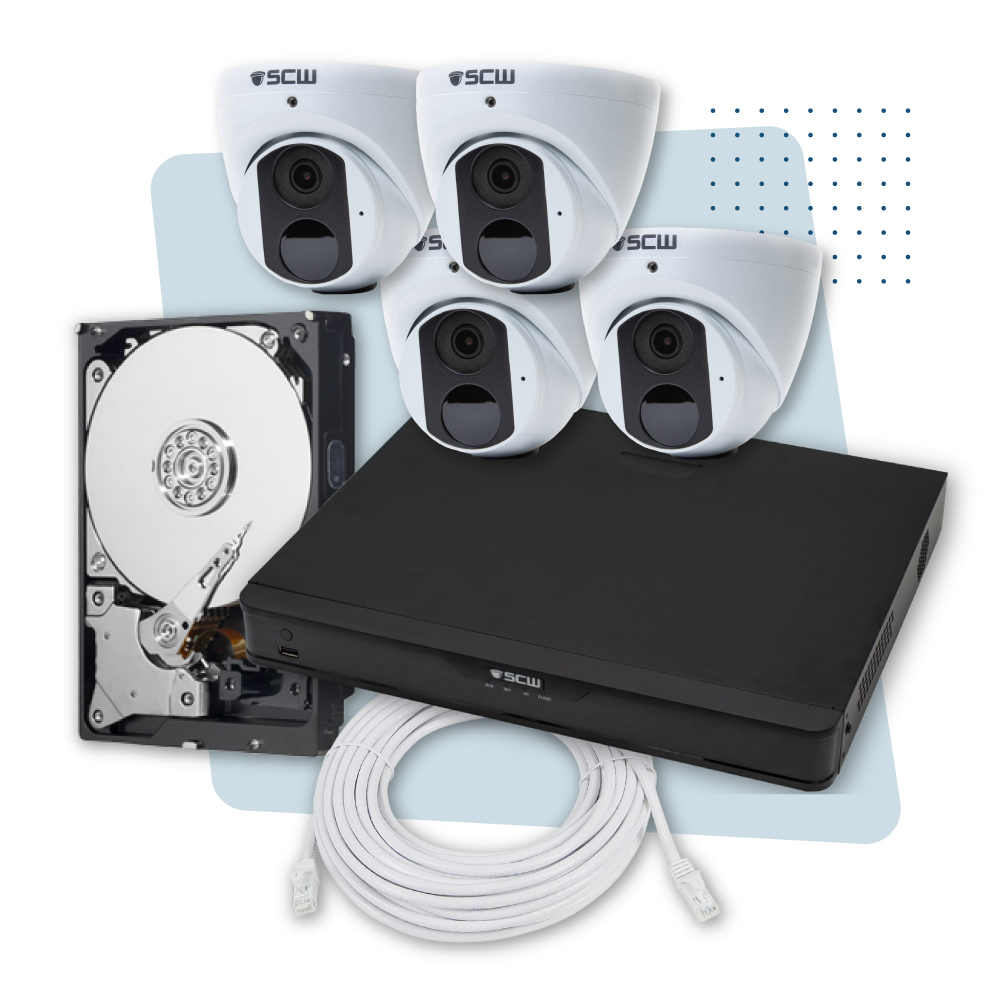

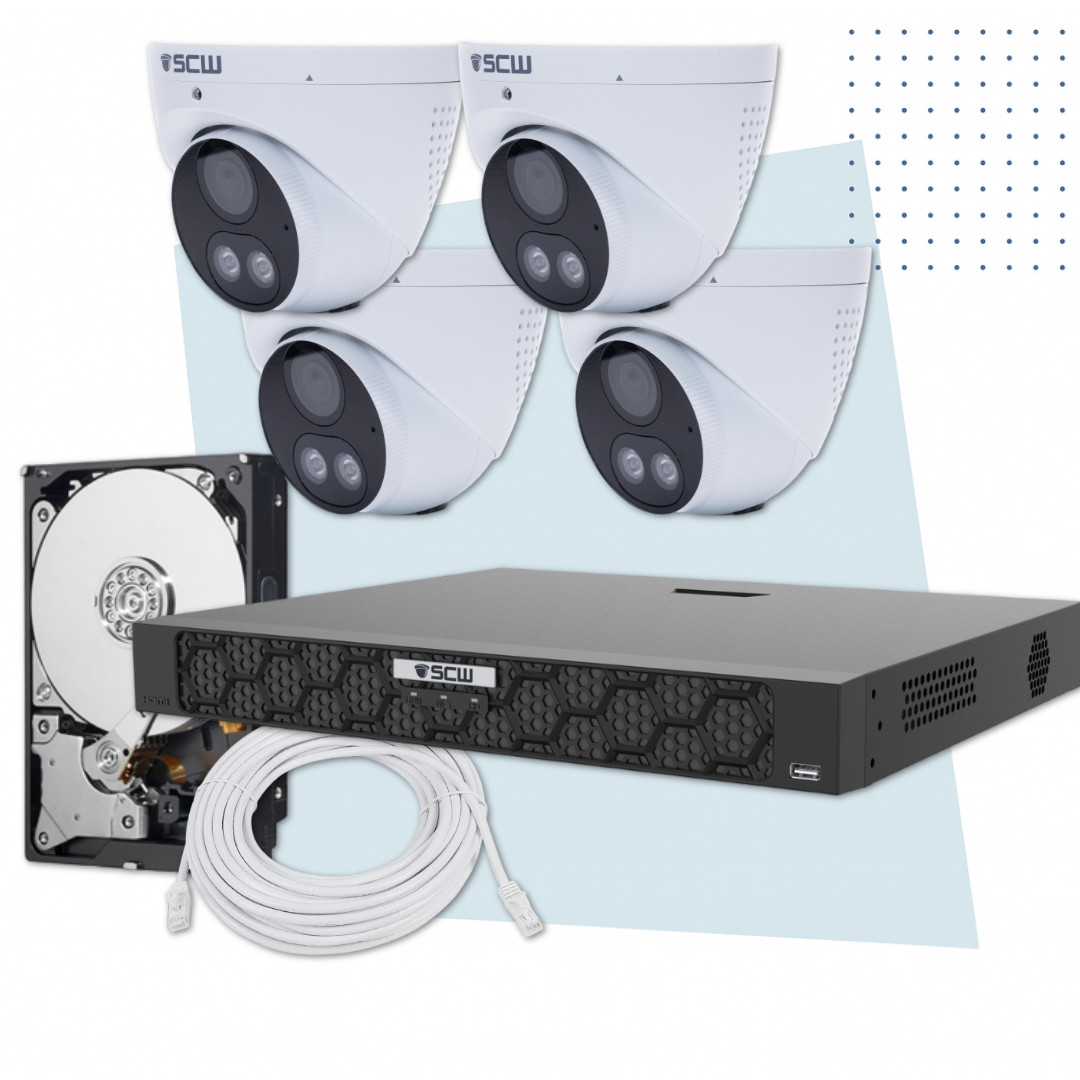

4 Camera Turret System

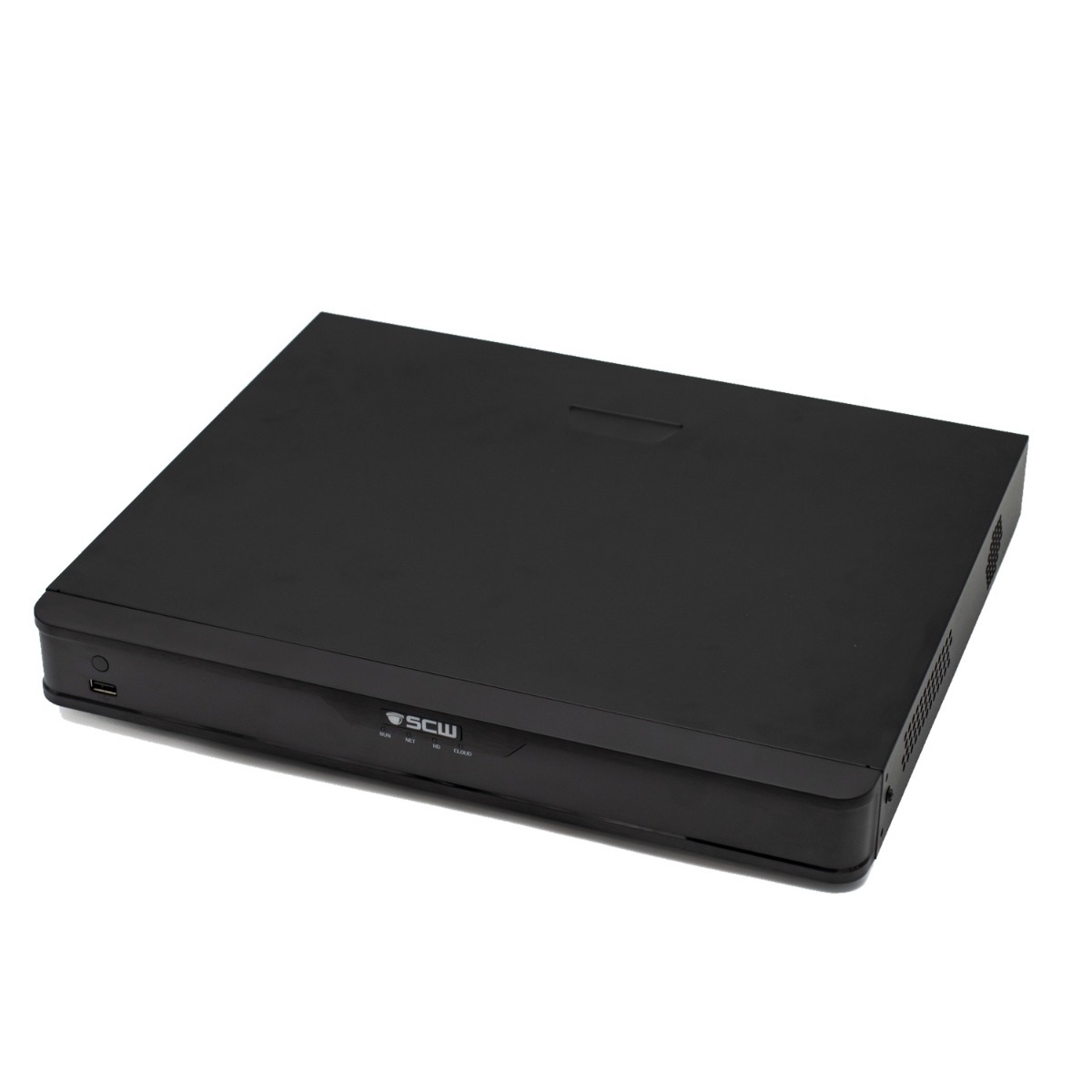

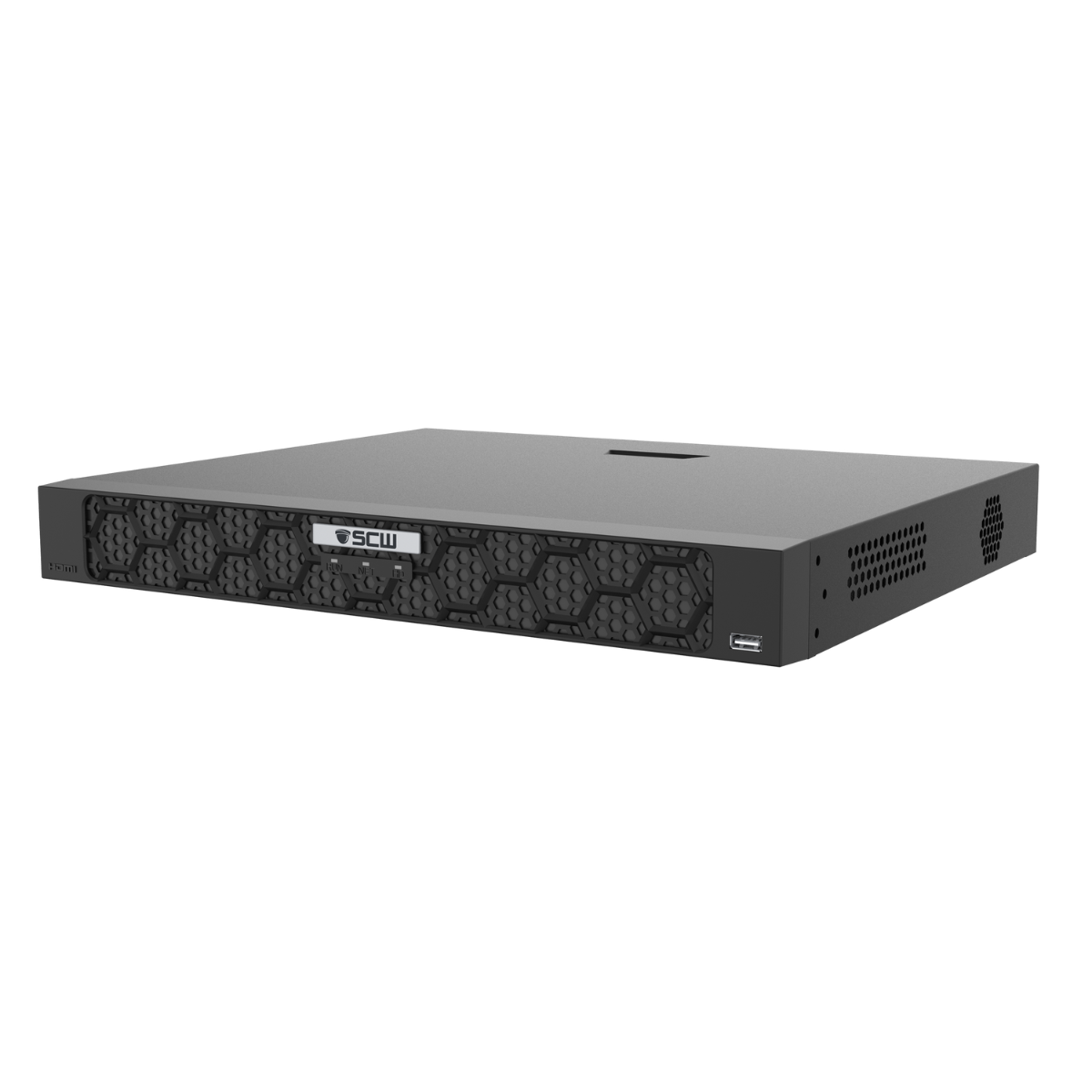

1 x Admiral 8 Channel NVR

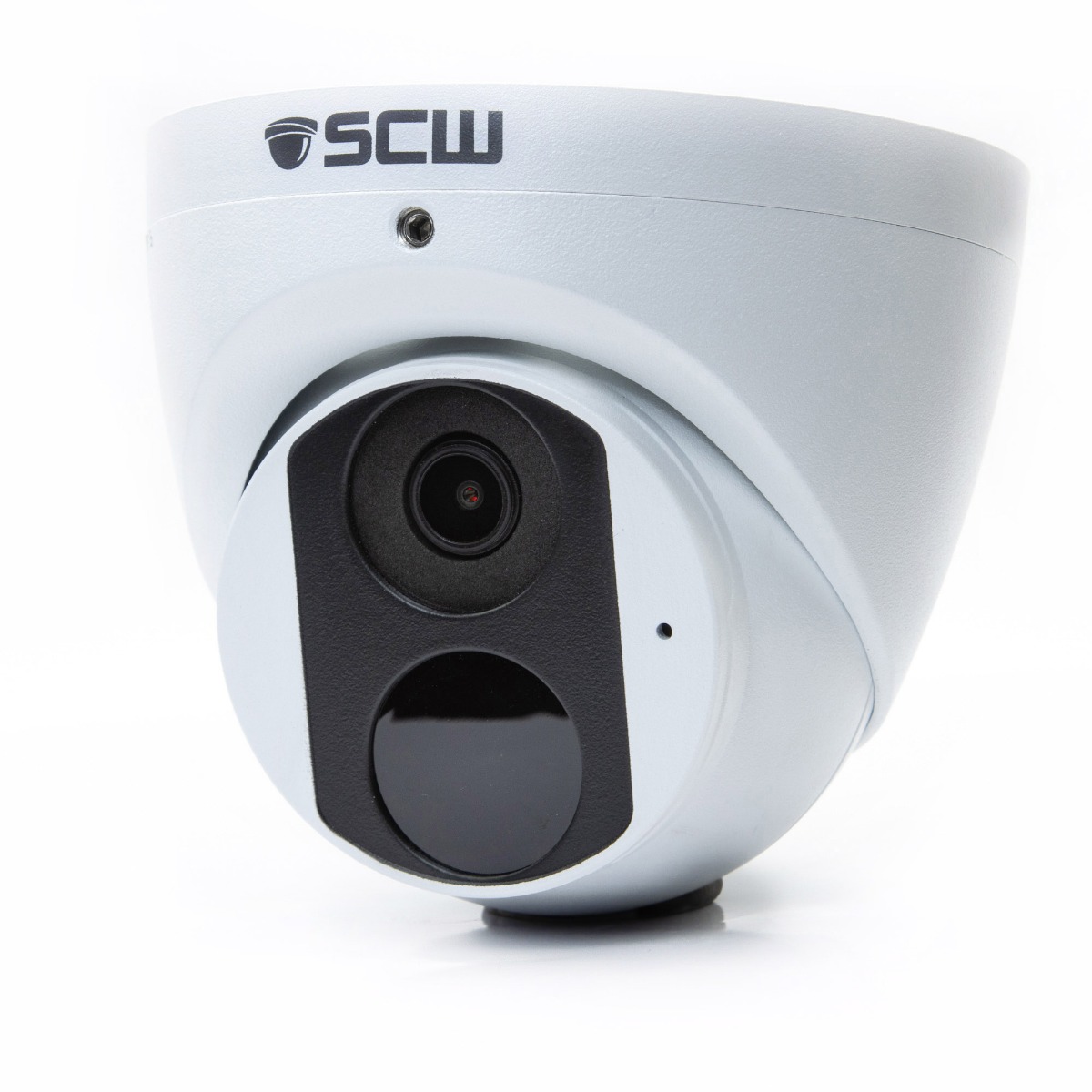

4 x Deputy 4.0 Turret Cameras

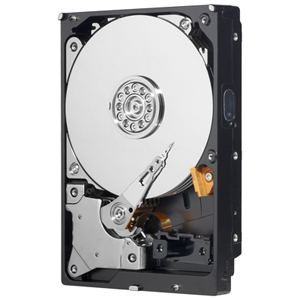

1 x 2TB Hard Drive

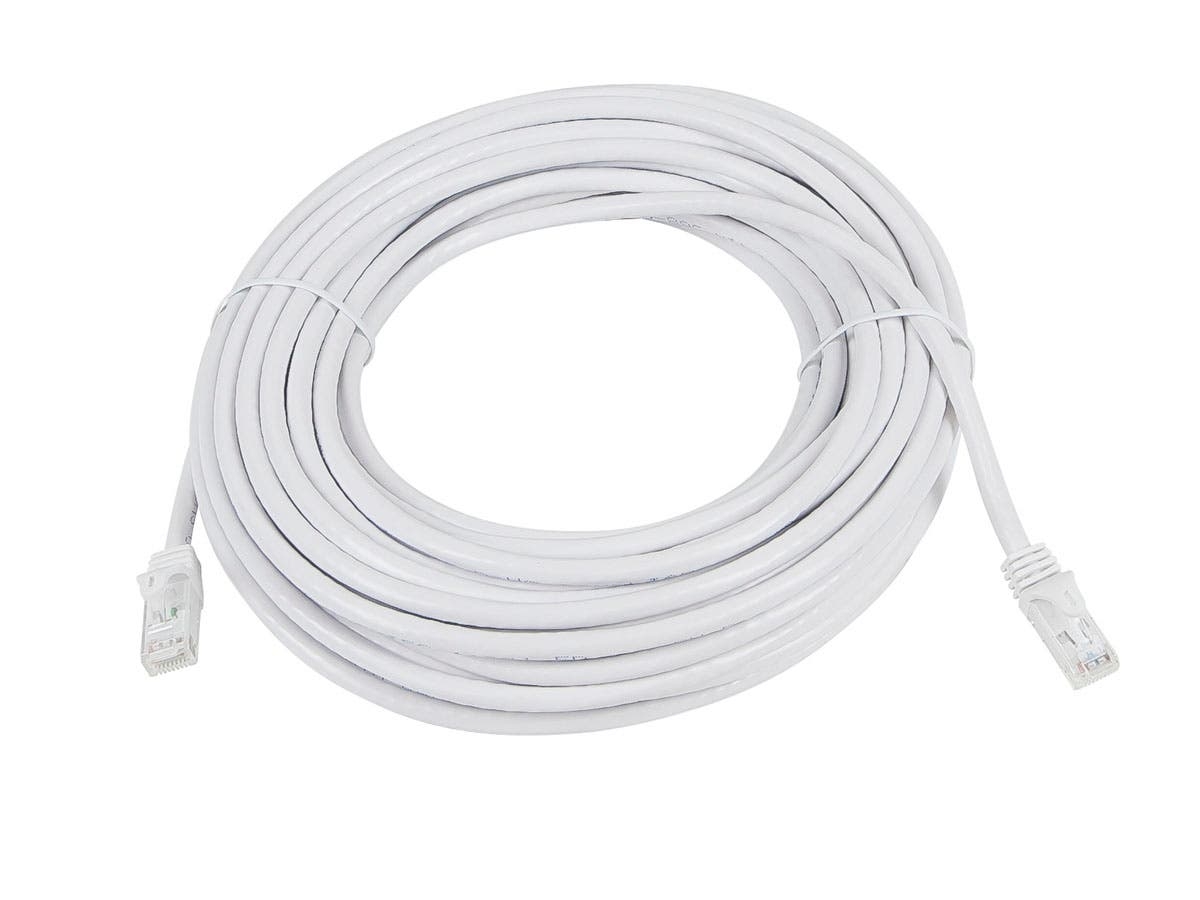

4 x 100ft. pre-made cables
In stock
Usually ships the same business day if ordered before 2PM EST.
SKU
4-Camera-Dome-System
1 x Admiral 8 Channel NVR, 4 x Deputy 4.0 Turret Cameras, 1 x 2TB Hard Drive, 4 x 100ft. pre-made cables
Images
Videos
Need Installation?
No Problem
Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.
Get a Custom Quote for Equipment or Installation
About this 4 Camera System
This Black Friday sale is available only from November 1 to November 30, 2024—don’t miss out!

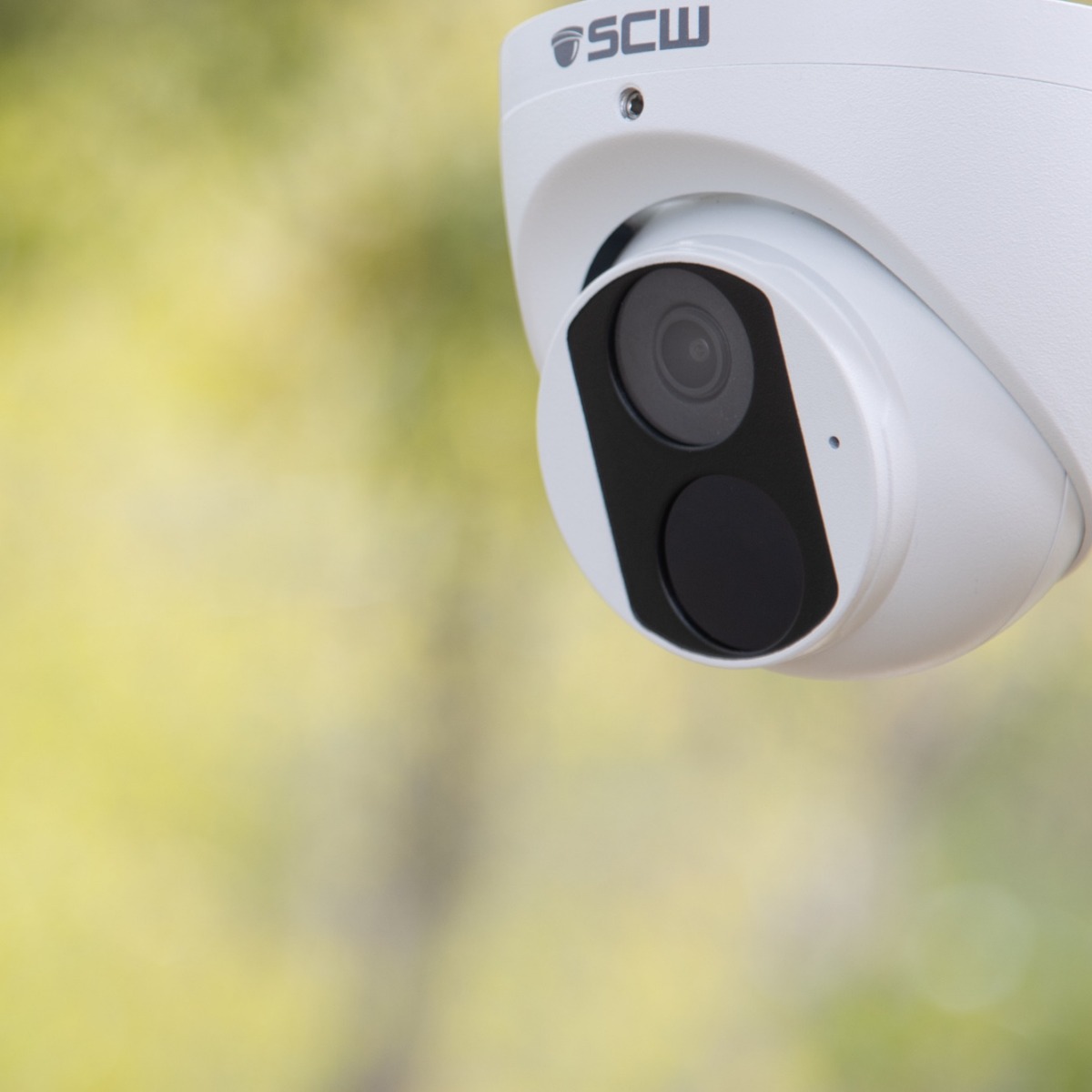

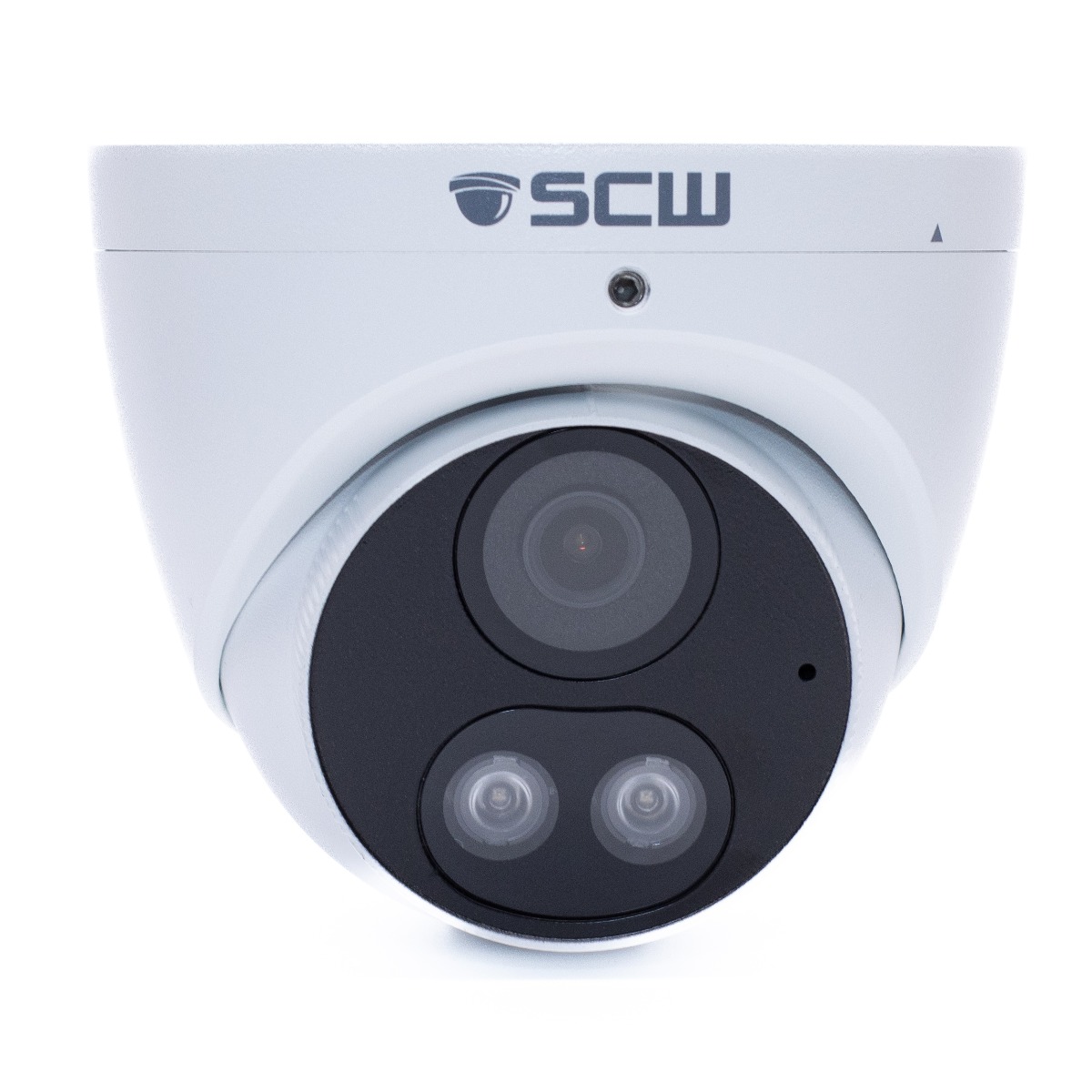

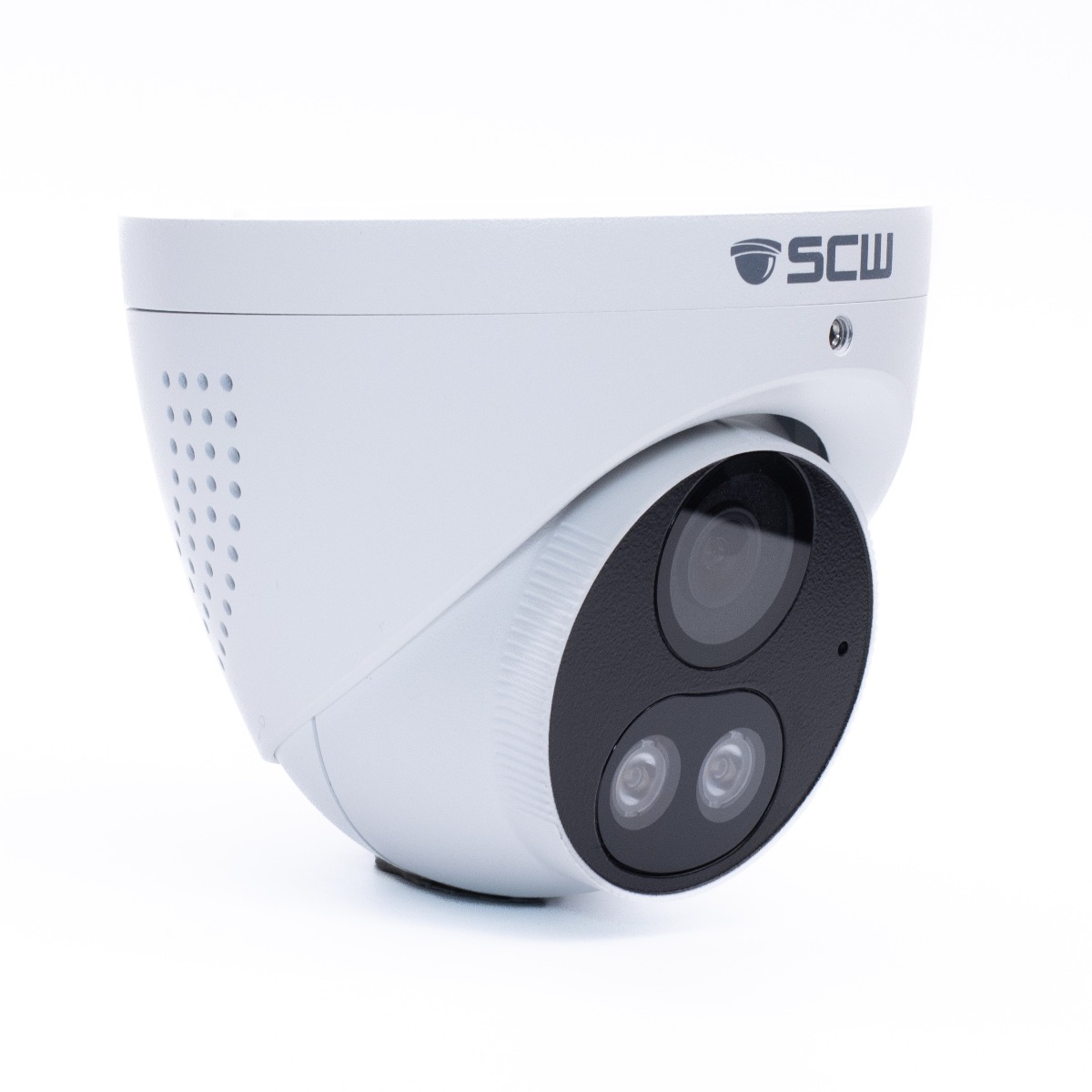

The 4-camera turret system offers robust security for small businesses, retail spaces, and offices, ensuring essential areas are always monitored. Each Deputy 4.0 Turret Camera provides 4MP resolution at 30 FPS with a 101° field of view, delivering sharp, clear footage. With infrared night vision up to 100 feet and built-in microphones, this system captures critical events in both day and night environments.
Designed to endure the toughest conditions, the cameras are IP67 weatherproof and operate reliably between -22°F and 140°F, making them perfect for both indoor and outdoor use. The Admiral 8-Channel NVR includes a 2TB hard drive for continuous recording, ensuring important footage is always available. Backed by NDAA compliance and free USA-based lifetime technical support, this system offers reliable, long-term protection with no hidden fees or ongoing service costs.
Features:
Wide Dynamic Range (WDR)
This IP camera has Wide Dynamic Range.
Wide Dynamic Range splits each frame/image into many boxes and it scans for in inaccuracies and adds the right amount exposure to create a balanced and high resolution video shot. Very useful when recording in situations where there can be a large difference in light levels.
Integrated Microphone
This camera has an integrated Microphone. It can pick up a speaking voice about 15 feet from the camera in a clear and quiet environment. Note that external noises like machinery, wind, loud HVAC/vents impact audio quality and distance.
By default, the microphone is off when it ships, as different states (and sometimes cities, municipalities, etc) have different legal requirements that you must meet before recording audio. All states must comply with the Federal Wire Tap Act of 1968. Please make sure that you are within your rights regarding your local laws before turning the microphone on.
For more info, please read our primer on the Federal Wire Tap Act of 1968.
MicroSD Card Slot
This camera supports MicroSD for onboard storage.
MicroSD cards allow for storage on a standalone camera or for backup. Backup footage is a good idea for cameras that are on the network, not plugged in directly to an NVR, especially any cameras operated over wireless links.
SCW recommends high endurance MicroSD cards. MicroSD card is not included. For maximum supported size card, check the specs tab.
MicroSD cards are a less reliable form of storage than NVRs and we do not recommend they be used as a substitute for an NVR.
Event Recording Mode through Video Content Analysis (VCA)
With this camera and an SCW Admiral or Imperial NVR, you can be alerted with intrusion detection or line crossing.
Covering, damaging, or moving the camera lens
In addition you can search your video footage for these events
*Each feature must be enabled and set up before it can be searched. Not all features can run at once.
Weatherproof Housing
This camera has a Weatherproof Housing.
It has been rated at IP67 which means that International Electrotechnical Commission’s (IEC) international standard 60529 has rated this camera housing as having full protection from dust and safe from water damage up to powerful jets of water and immersion up to 1 meter up to 30 minutes.
This camera can be safely used outdoors.
Attention: The IP67 rating covers the camera's housing not the cable. Don't ever submerge cables. Please follow our RJ45 Waterproofing Guide for weatherizing your cable connections.
Bitrate - 4MP
At 4MP and 30 FPS, while recording at H.265, this camera should use 4Mbps of the NVR's bitrate budget. (With H.264, it should use 8Mbps).
Did you know: The processor in an NVR has both an incoming and outgoing bitrate. Incoming is for recording video and outgoing is for watching it remotely. All of our NVRs have at least 5Mbps per channel in incoming bitrate, and many models can have extra bitrate. Your NVR's spare incoming bitrate is what determines if it can record channels at higher-than-1080P resolution, use specialty panoramic cameras, or many other things (see individual NVR models).
Commercial-Grade Aluminum Molding
This camera is commercial-grade and is made of cast aluminum and ceramic molding, instead of the typical plastic molding common in the industry.
This product has passed vibration tests, can withstand an electrical surge up to 6,000 volts, and the casing will prevent intrusion of both dust and water into the internal component space. The screws and mounting hardware are made of stainless steel that has passed SUS410 salt spray anti-corrosion testing. We use automotive-grade LEDs and anti-reflection glass (which means better infrared results). In short, this camera is going to hold up over time.
Motion Detection, Alerts, and VCA
This Admiral NVR is a motion detection NVR. Feel free to read more about these features by clicking on the link, but here's a quick synopsis:
Commercial Grade Features
This Admiral 4 Channel NVR is part of our commercial grade NVR line. Feel free to read more about these features and what commercial grade means to us, but here's a quick synopsis, as to how it relates to NVRs:
American-Based Technical Support after the sale. For FREE. Forever.
Real review from Fransisco, who had this to say:
The most important part of a purchase like this is the support for technical assistance when there is a question or when there is a problem, and they always exceed expectations!
All of our equipment comes with Free Technical Support that is US based (Our Warehouse and Staff are located in Asheville, NC). We're happy to help you via chat, email, screenshare / remote support sessions, and phones. Our number is 866-414-2553 and we're open from 9-7 M-F (EST).
UL Listed and FCC Certified
This product is UL Listed and FCC certified
Not Sanctioned. On Oct 7th 2019, The US government placed sanctions on major providers in the industry for human rights abuses. Some or all Honeywell, Hikvision, Dahua, Lorex, Swann, LTS, Annke, Alibi, Laview, WBox, Interlogix, Flir, Bosch, ICRealtime, QSee, Panasonic, ADT, Indigo Vision, Montavue, and many more security products are included. SCW's Admiral and Imperial line equipment is not sanctioned.
Product Spec Sheets

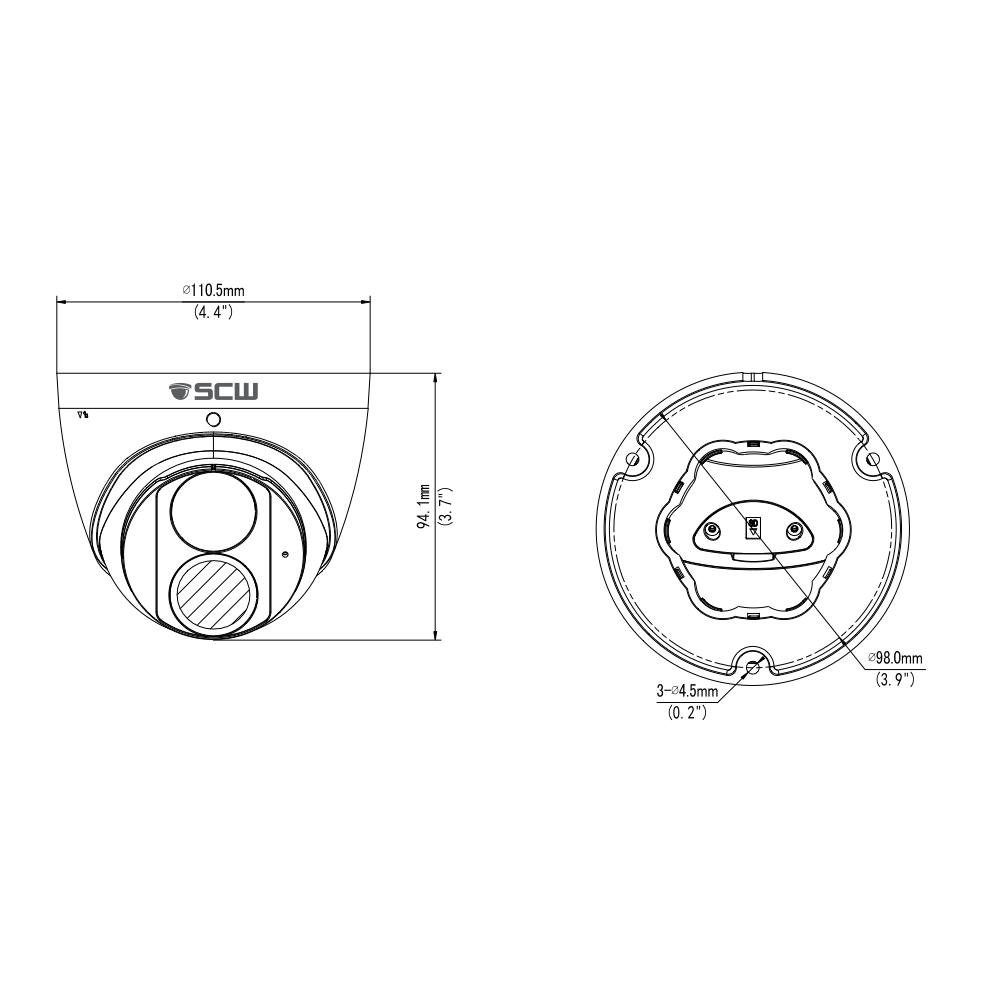

Spec Sheet for the Deputy 4.0
Spec Sheet for The Admiral 8 Channel NVR - ADM8P8
The Quickstart Guide
You should get one of these in your shipment when you order, but sometimes it is nice to have a digital version.
Please see our support portal for a full list of all technical bulletins, user manuals, and software.
Our products are really safe, but if you are going to drill into a wall - for any purpose - you need to stay away from your electrical lines and turn your power off.
Learn what bits your need for Brick, Stucco, Vinyl Siding, Sheetrock, Wood, etc.
Learn how to run cable better than the pros. From Raceways to Conduit to Terminating RJ45 to Extending Cable Distance.
Mounting Bullet Cameras on Walls
In this guide, we will be installing a bullet camera on a wall.
Mounting Bullet Cameras on Ceilings
In this guide, we will be installing a bullet camera on a ceiling.
Mounting Bullet Cameras on Soffits
In this guide, we will be installing a bullet camera on a soffit.
Using Electrical Mounting Boxes
Our electrical box mounts are used to give easy access to your connections, hide them inside the junction box, and allow you to drill a smaller hole in your wall. If you want to run EMT or FMC conduit they are necessary to run conduit straight to the camera.
Mounting Bullet Cameras to Pole Mounts
In this guide, we will be installing a Hornet Pro bullet camera on a pole.
Mounting Dome Cameras on Walls
In this guide, we will be installing a dome camera on a wall.
Mounting Dome Cameras on Ceilings
In this guide, we will be installing a dome camera on a ceiling.
Positioning the Lens in our Dome Cameras
In this video guide, we demonstrate how to adjust the lens positioning on our Dome Cameras.
