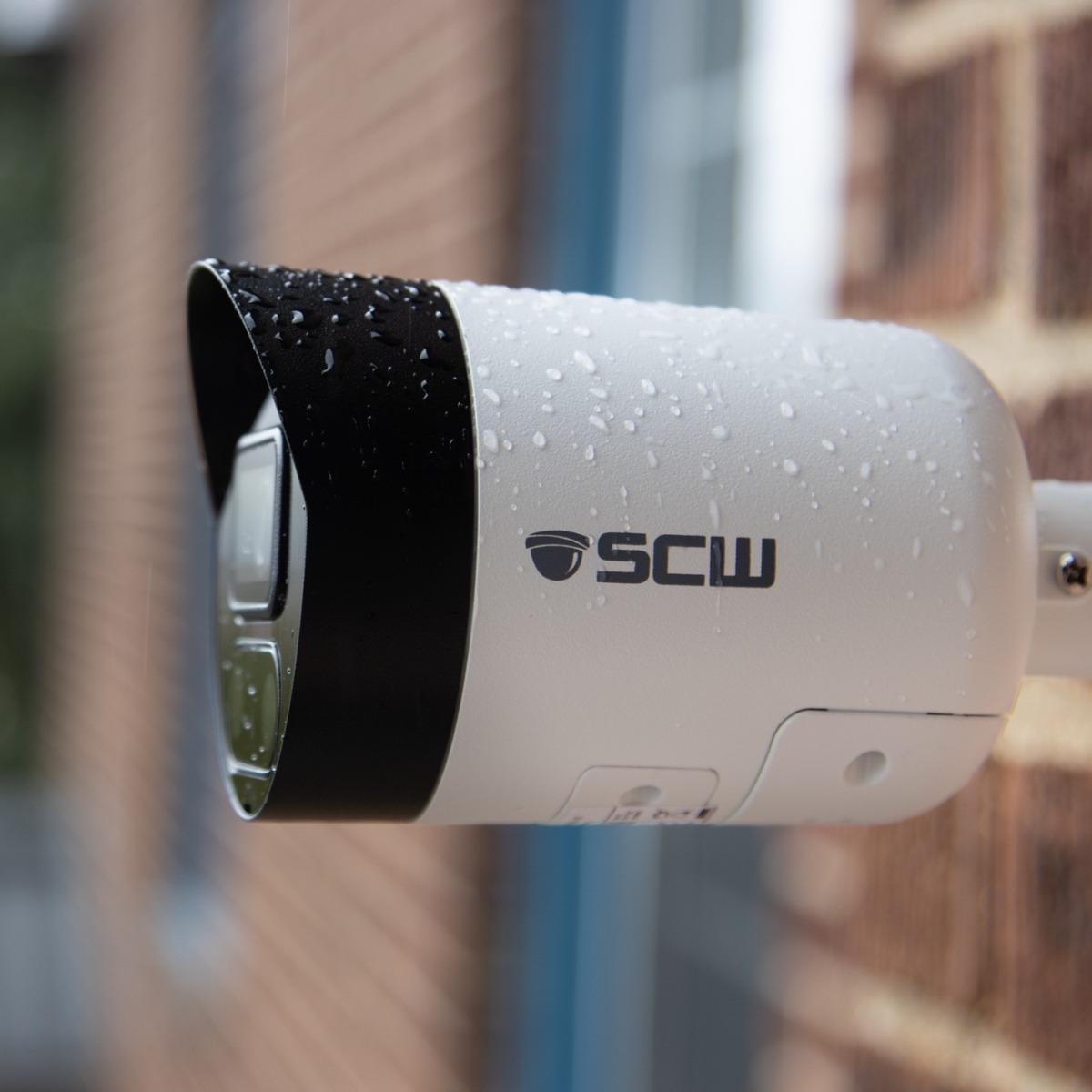

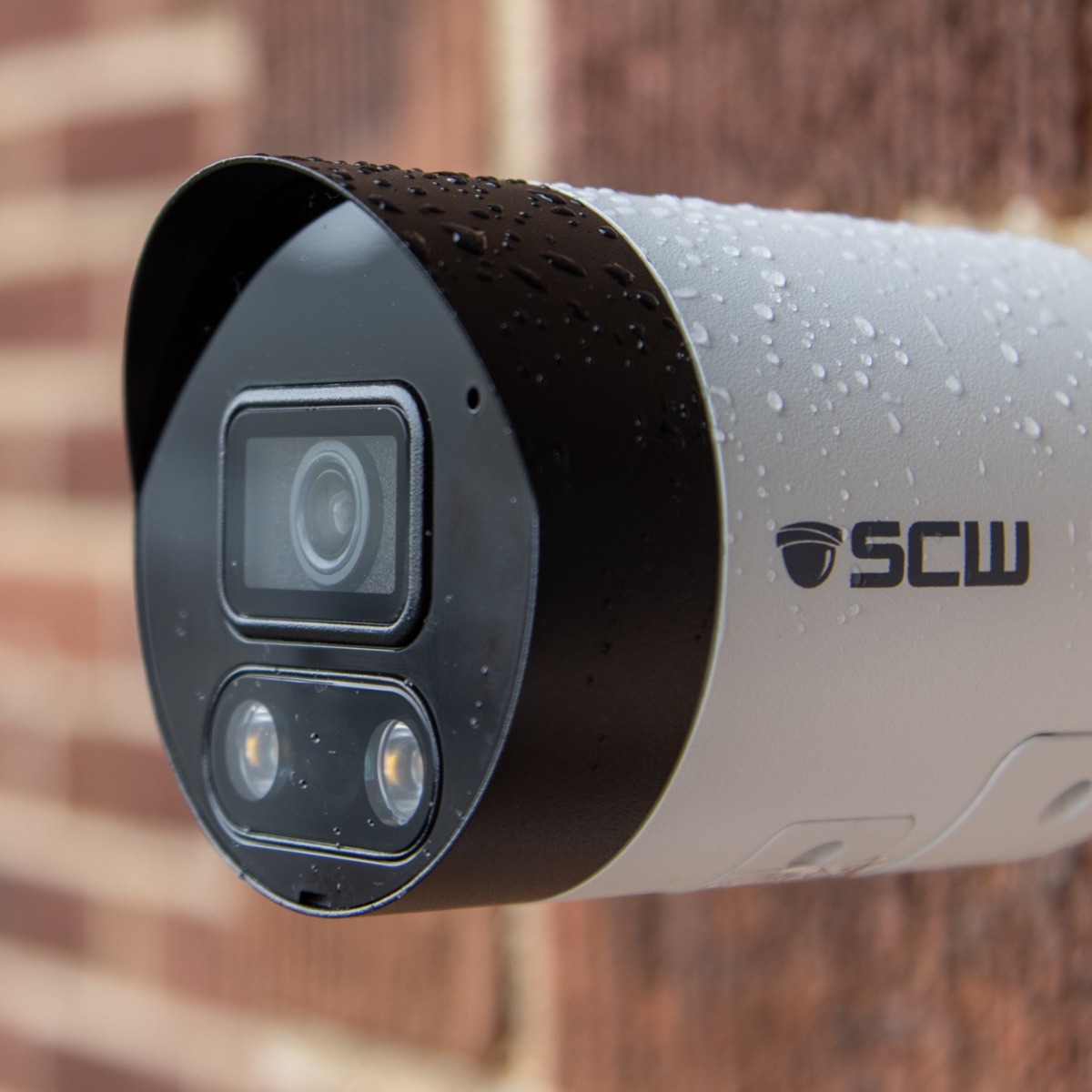

Weatherproof Housing

This camera has a Weatherproof Housing.

It has been rated at IP67 which means that International Electrotechnical Commission’s (IEC) international standard 60529 has rated this camera housing as having full protection from dust and safe from water damage up to powerful jets of water and immersion up to 1 meter up to 30 minutes.

This camera can be safely used outdoors.

Attention: The IP67 rating covers the camera's housing not the cable. Don't ever submerge cables. Please follow our RJ45 Waterproofing Guide for weatherizing your cable connections.

Larger Image Sensor for Superior Low Light Performance

This camera has a 0.37 inch image sensor, which is larger than most competing products. (The industry typically uses 0.33 inch image sensors.)

A larger image sensor allows more light to be absorbed, allowing the camera to take color photos as it gets darker, (a lower lux rating). Lux is the measurement of light in an atmosphere. Twilight is about 3.4 lux. A full moon is somewhere between 0.05 and 0.36 lux, depending on cloud cover. A moonless night is somewhere around 0.001 to 0.002 depending on cloud cover. Adding lighting like flood lights, night lights, or streetlights will increase lux in your area.

This camera can take a color photo all the way down to 0.02 lux (much of the industry can only take a color photo at 1 lux), but that may require some adjustments to your shutter settings...

Lux is a complicated subjective measurement, so please read our knowledge base article on why why lux ratings are useless for brand A to Brand B comparisons, but great for comparisons within a brand..

Bitrate 4K, 20 FPS

At 4K (8MP) and 20 FPS, while recording at H.265, this camera should use 4Mbps of the NVR's bitrate budget. (With H.264, it should use 8Mbps).

Did you know: The processor in an NVR has both an incoming and outgoing bitrate. Incoming is for recording video and outgoing is for watching it remotely. All of our NVRs have at least 5Mbps per channel in incoming bitrate, and many models can have extra bitrate. Your NVR's spare incoming bitrate is what determines if it can record channels at higher-than-1080P resolution, use specialty panoramic cameras, or many other things (see individual NVR models).

Commercial-Grade Aluminum Molding

This camera is commercial-grade and is made of cast aluminum and ceramic molding, instead of the typical plastic molding common in the industry.

This product has passed vibration tests, can withstand an electrical surge up to 6,000 volts, and the casing will prevent intrusion of both dust and water into the internal component space. The screws and mounting hardware are made of stainless steel that has passed SUS410 salt spray anti-corrosion testing. We use automotive-grade LEDs and anti-reflection glass (which means better infrared results). In short, this camera is going to hold up over time.

Motion Detection, Alerts, and VCA

This Admiral NVR is a motion detection NVR. Feel free to read more about these features by clicking on the link, but here's a quick synopsis:

Alerts and Notifications:

Get email alerts of motion detection alerts or VCA events

Set a schedule to get emails only on the hours of the day you want.

Get Push Notifications to the SCW Go Application for Android and iPhone.

Recording:

Create your own customizable record schedule, including recording based on the day of the week, hours of the day, or even choose not to record for periods of time. Set constant recording during business hours and only motion during closed hours.

Motion, VCA, or 24/7 Recording - Record based on motion detection, VCA (video content analysis), or set the system to record 24/7. You can even record based on alarm inputs!

Motion Detection You Can Use in Court - If your system is set to record based on motion or VCA events, you can have a 60 second pre-event buffer to grab footage prior to the detection. You can also set the system to record up to 10 minutes after an incident is detected. Motion detection footage does not "time out" and stop recording mid scene. Motion Clips cannot be deleted by employees or other users.

Customizable Motion Detection Recording through VCA events:

VCA features vary by camera model, and can include:

Intrusion Detection - Monitor areas with precision, define zones, set time thresholds, and sensitivity.

Line Crossing - Create virtual lines to detect people or objects crossing doors, entrances, and more.

People Counting - Determine how many people are entering and exiting. Keep and review daily logs.

Audio Detection - Listens for Rises or falls in volume, and sudden loud noises.

Vandal Detection - Get alerts based on tampering detection, defocusing, or any dramatic scene changes.

Analysis:

Smart Search - Quickly review footage by filtering by motion detected in specific areas of the screen, by the face captured, by intrusion into certain areas, or by line crossing

People Counting Statistics - view traffic stats on your NVR or download a CSV file

Commercial Grade Features

This Admiral 8 Channel NVR is part of our commercial grade NVR line. Feel free to read more about these features and what commercial grade means to us, but here's a quick synopsis, as to how it relates to NVRs:

Surveillance Rated Hard Drive - NVRs need Surveillance Rated Hard Drives, as PC drives will overheat and fail.

Store 40% more data with H.265 video compression or switch back to H.264, if you need H.264 third-party integration support.

Passes vibration and surge testing up to 6,0000 volts - SCW NVRs can withstand vibration and surges up to 6,000 volts.

Cyber Security Protections - hackers can't easily see SCW cameras because they run on a special, isolated network created by the NVR. (For more information and a history of some of the larger cyber security attacks that have affected the industry, please see our guide on best practices for preventing IOT hacks.)

4K at 30 FPS Capable - Sufficient Bitrate (processing power) to Record Smooth Video

Easy 1 Click Firmware Update Process - Maintenance made easy.

750 Foot POE Extended Transmission: the old 300 foot limitations are a thing of the past.

No Recording Delay - Even when recording on motion.

ONVIF compliant - this NVR complies with the open industry standard ONVIF for both Profile S (video & audio streaming) and Profile Q POE ports (you can plug-and-play with other Profile Q compliant cameras).

3 or 5 Year Warranty

The Admiral 8 Channel NVR comes with a 3 year warranty. This warranty can also be upgraded to a 5 years. We recommend doing so for commercial clients.

SCW view station PC/Mac Software

Our Windows/Mac application is a full featured, easy to use, desktop video management software. You can combine multiple Admiral or Imperial systems, even at multiple locations and seamlessly view, control, and manage them as if they were one system. Just about anything you can do on your NVR you can do on our free SCW ViewStation.

SCW View Station is both Mac and PC compatible and is 100% free.

Browser Plugin

Although you can edit most settings and live stream a camera feed in any of the major browsers, to take full advantage of our software features you will need to install our browser plugin or viewstation software.

Our browser plugin supports Internet Explorer, and Chrome, Edge, and Firefox (in Windows).

SCWGo Smartphone and Tablet Apps

SCWGo is availible for both Android and iPhone/iPad.

You download these apps from your phone's app store. Just look for the SCWGo app.

VGA Out

This recording device has VGA Out.

You can plug this recording device into any VGA enabled monitor.

Q: Do I have to use a monitor?

A. No, you can use either a monitor or a TV, as explained below. But, you don't actually have to use either. You can manage nearly all your settings remotely via our PC or Mac apps or via the web-interface. Quite a few of our customers hide their recorders or put them in a safe with a cable pass-through, to prevent them from potential theft. This is a perfectly fine solution. You will probably want to plug a monitor in to make your initial setup easier.

HDMI Out

This recording device has HDMI Out.

You can plug this recording device into any HDMI enabled television. This means that you don't need to purchase a monitor unless you want to; you can connect a monitor with either HDMI or VGA cable.

Q: What if I plug in both the HDMI and VGA? Can I watch on two screens?

A.On the Admiral 8 channel NVR HDMI and VGA can be used at the same time. Both HDMI and VGA will feature the same video (mirror).

Please note that although our NVRs can all do 1080P and 4K output, all of them ship with 720P as the default. This is to prevent display issues for people who have older TVs or monitors that don't support 1080P or 4K. To change the output right click and then go to configuration.

UL Listed and FCC Certified

This product is UL Listed and FCC certified

UL is a safety consulting and certification company headquartered in Northbrook, Illinois and provides safety-related certification, validation, testing, inspection, and auditing of SCW products.

The Federal Communications Commission has certified that the electromagnetic interference from the device is under limits approved by the FCC.
